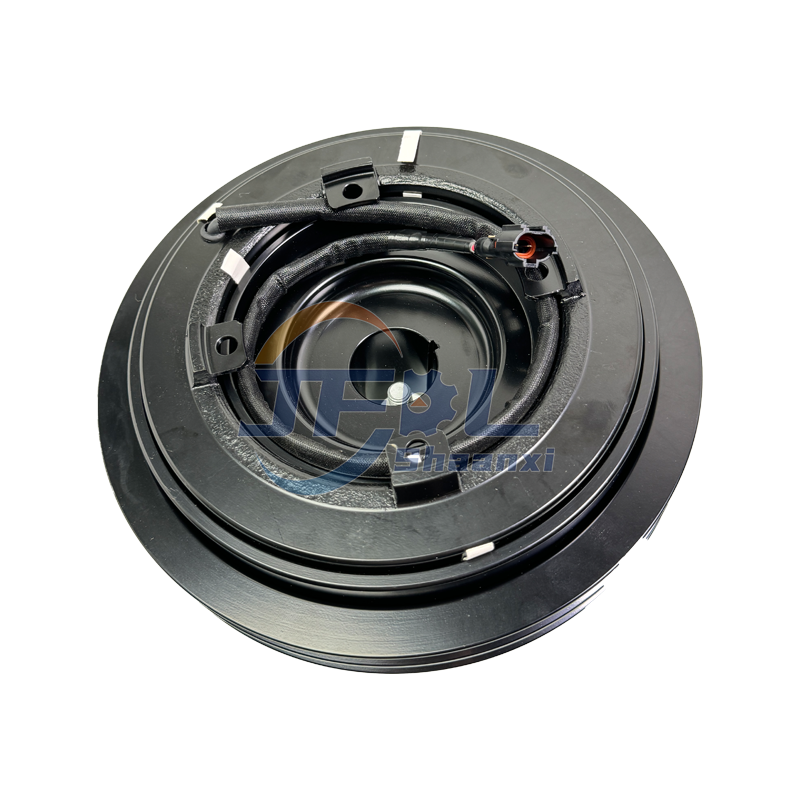

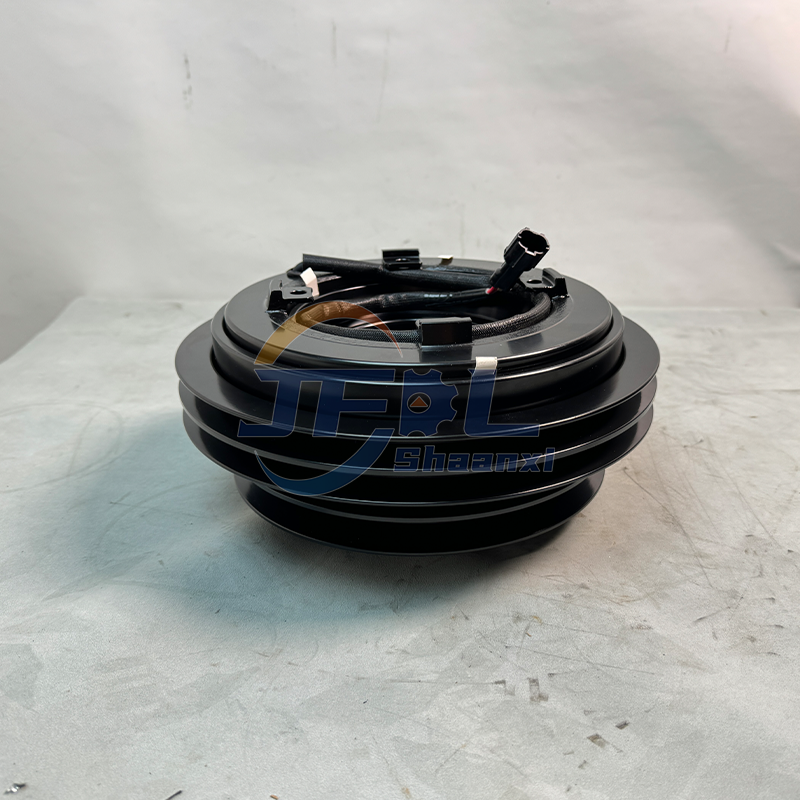

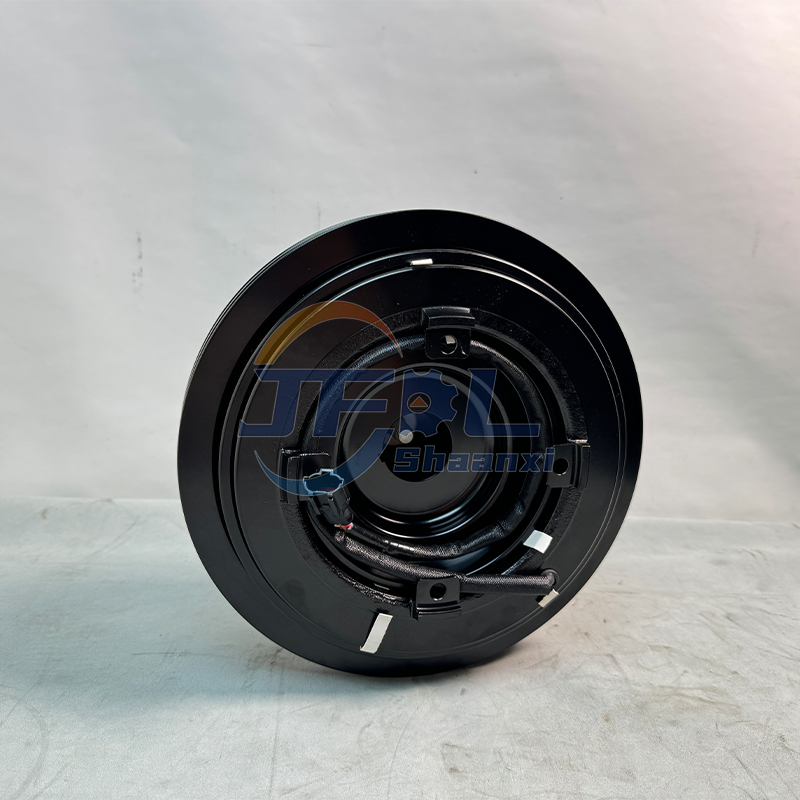

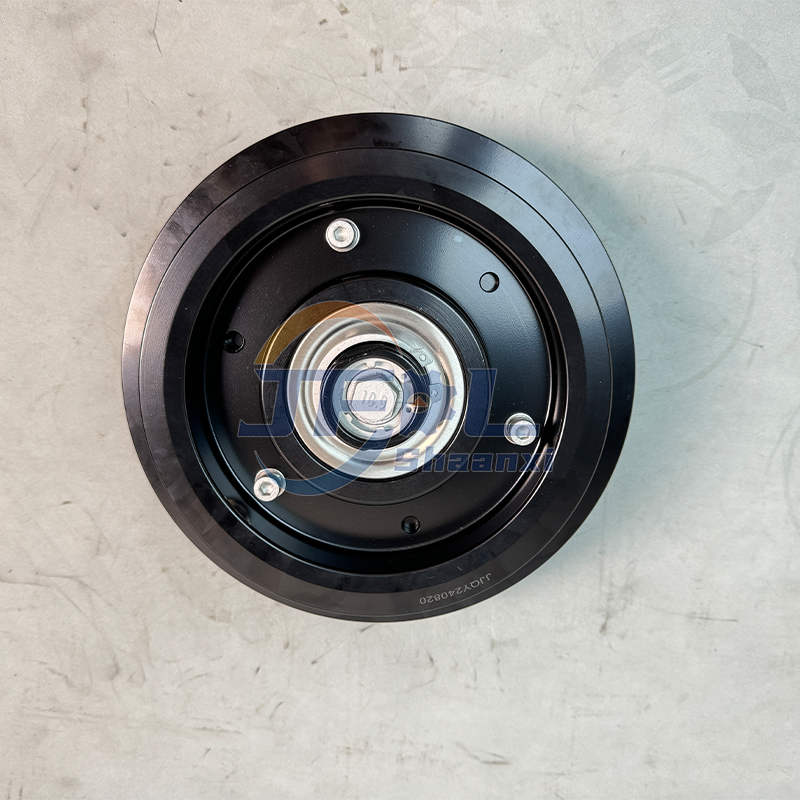

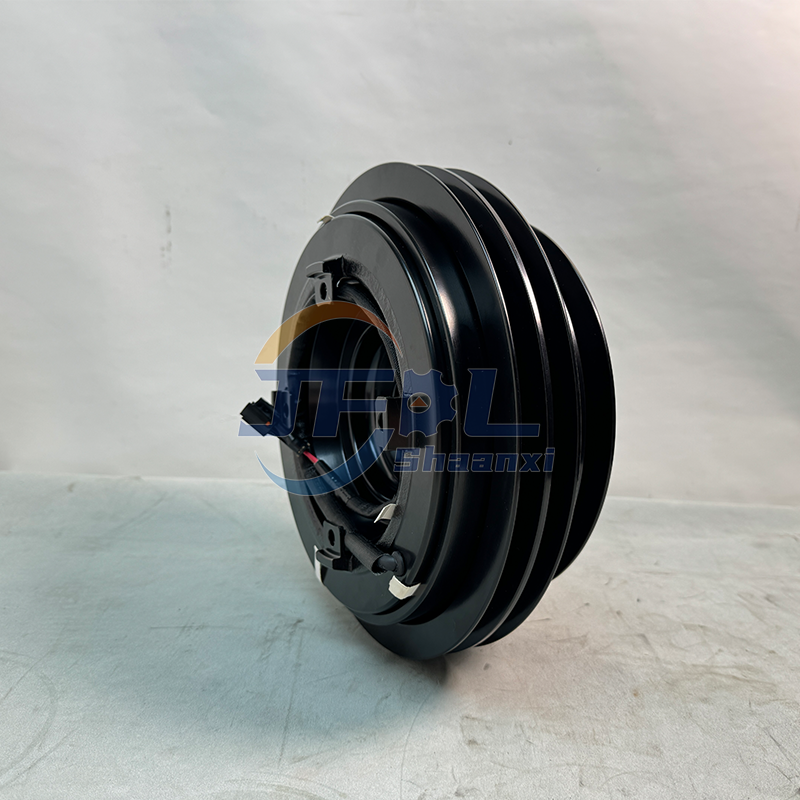

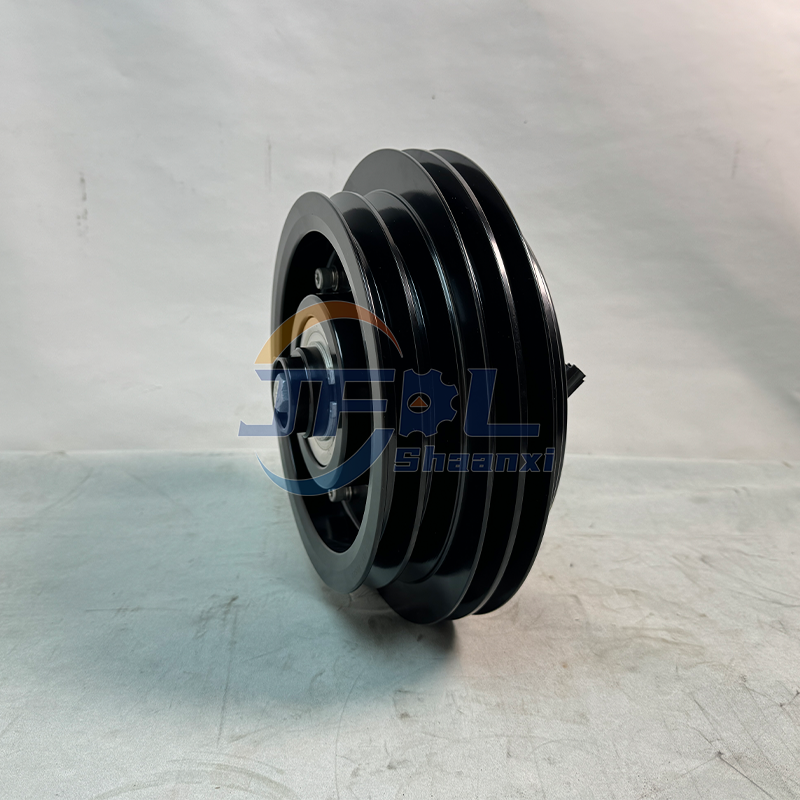

| Electromagnetic Clutch Product Information Sheet | |
| Item | Specification |
| Product Name | Electromagnetic Clutch |
| Product Number | 8114-00189 |
| Applicable | This clutch is a standard original equipment manufacturer (OE) part for Yutong buses and is widely used in models such as: Yutong ZK6129H, ZK6858HN, ZK6551, and ZK6601. |
| Rated Voltage | Usually 24V DC |
| Rated Power | Approximately 60W. |
| Slot Type | 2A*2B (Double A slot + Double B slot combination). |
| Outer Diameter (OD) | 260mm. |
| Inner Diameter (ID) | 216mm or 210mm (depending on specific supplier specifications). |
| Static Friction Torque | ≥ 240 N.m. |
| Maximum Speed | Up to 3500 - 4000 RPM. |
| Material | High-strength carbon steel. |
| Inventory | 156 pieces |
| Delivery Time | 5-15 days |
 |  |  |
Performance Characteristics
High Reliability: Utilizing a bearing-supported design, it adapts to the long-term, high-load operation environment of bus air conditioning systems.
Compact Structure: The V-type four-cylinder compressor design, combined with a compact clutch, saves installation space.
Energy Efficiency: Low-power coil design ensures fast response and stability during frequent start-stop operations of the air conditioning system.
Usage Precautions
Clutch Gap: During installation, use a feeler gauge to check the air gap between the driven disc and the pulley. Excessive gap can cause slippage and burnout; insufficient gap will prevent complete disengagement after power is cut off.
Coil Resistance: Normal coil resistance is typically between 2-5 ohms. Values outside this range may indicate coil burnout or a short circuit.
Belt Alignment: Ensure the pulley and engine drive wheel are strictly aligned to prevent uneven wear that could lead to bearing overheating and damage.
Regular Inspection: Check for grease seepage into the friction plates. Grease can cause clutch slippage and abnormally high temperatures.
