| Category | Parameter | Details / Value |
|---|---|---|
| Basic Info | Part Number | 2918042-64W (Alt: 2918042-64W-C00) |

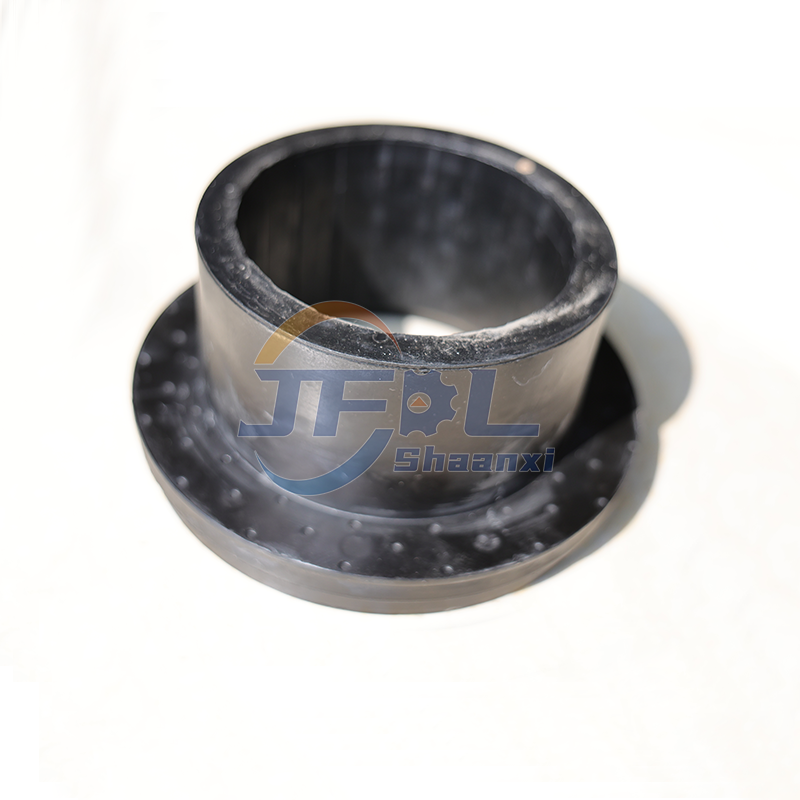

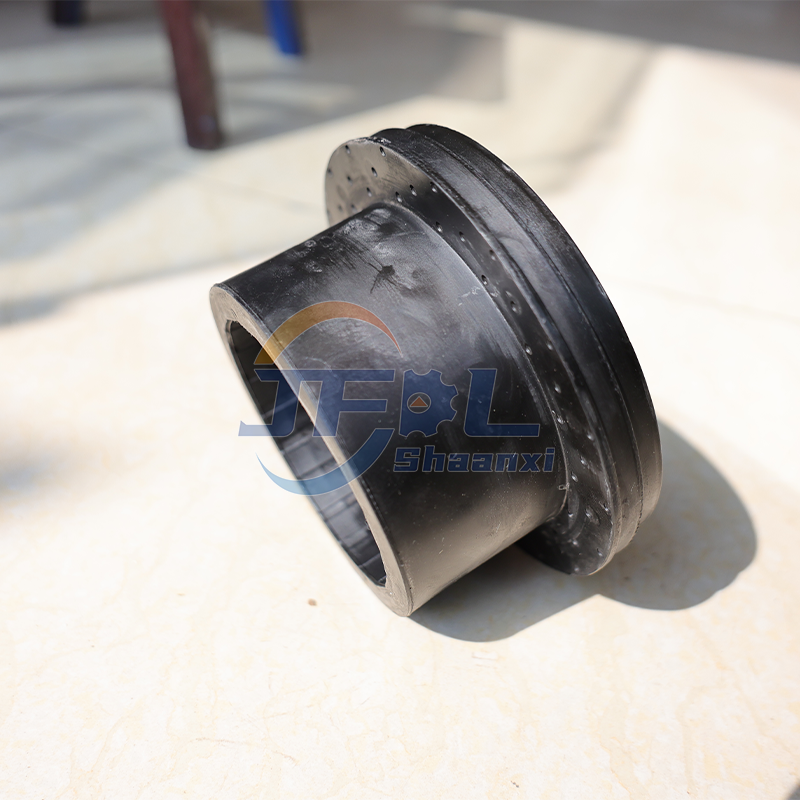

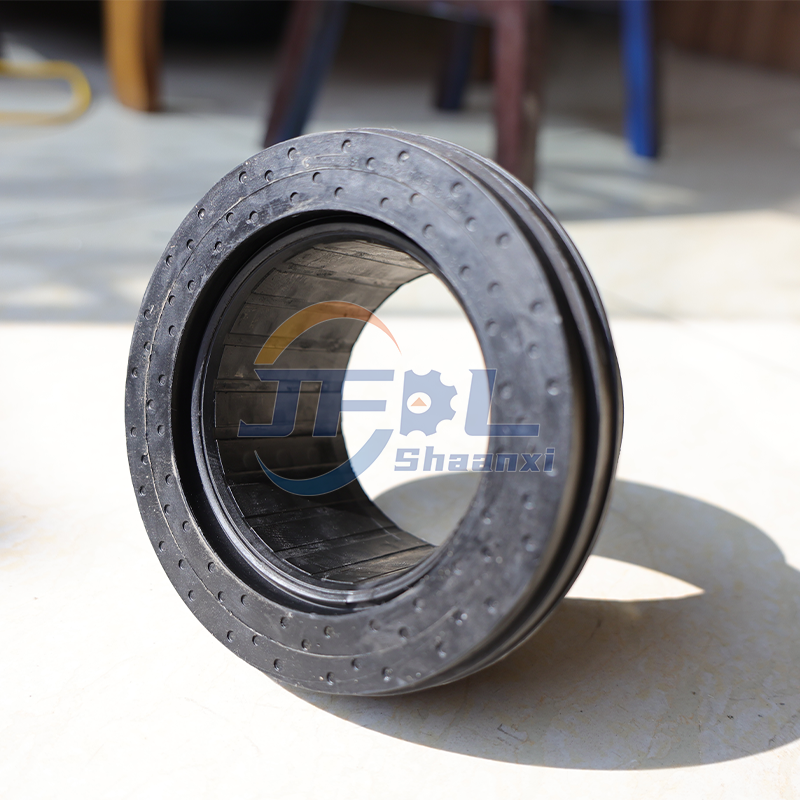

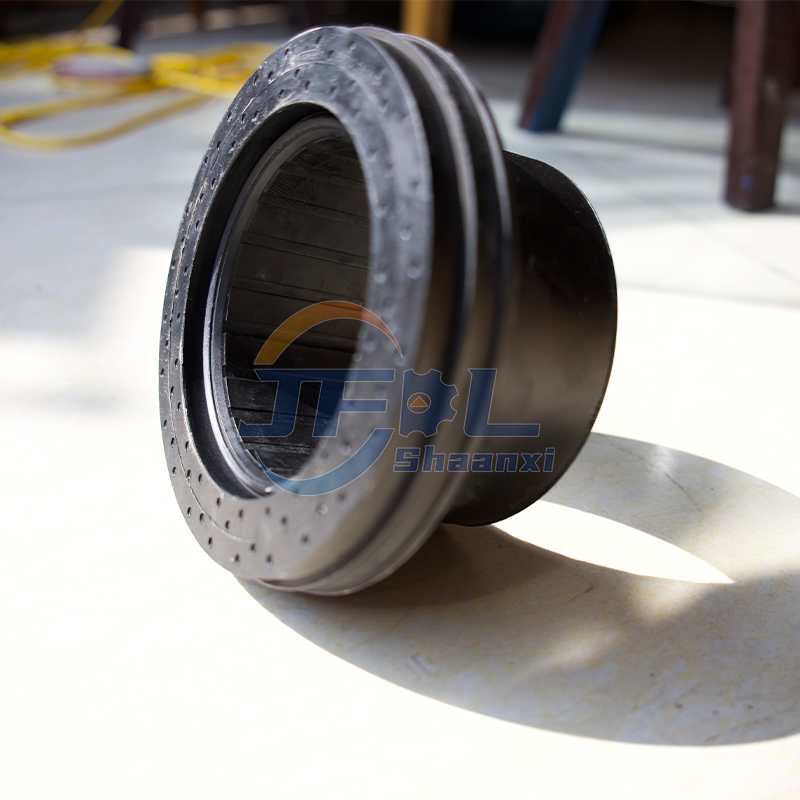

| Product Name | Balance Shaft Bushing / Rubber Sleeve | |
| Material | High-density Natural Rubber + Steel Core (Vulcanized) | |
| Physical Specs | Width / Height | Approx. 105mm |
| Unit Weight | Approx. 1.8kg - 2.0kg | |
| Application | Vehicle Compatibility | for FAW J6P, JH6; for Shacman Delong; BeiBen Trucks |
| Installation Site | Rear suspension balance shaft assembly | |
| Performance | Core Function | Load bearing, vibration damping, and axial pivoting |
| Working Temp | -40°C to +80°C | |
| Classification | System Category | Chassis System -> Suspension -> Balance Shaft |
| Cross Reference | 2918042-64W/C, 81.96210.0508 (MAN technology) | |
| Maintenance | Replacement Cycle | Every 20,000 - 30,000 km (Heavy-duty use) |
| Installation Note | Press-fit only. Do not use mineral oil/grease. |
|  | |
Performance Characteristics
1.High Wear Resistance: The internal structure typically contains multiple layers of reinforcing fibers or a special rubber formula to resist high-frequency vibrations.
2.Oil and Corrosion Resistance: The outer rubber layer provides some resistance to grease and corrosion from harsh road conditions.
3.Compression Resistance: Manufactured using a high-pressure vulcanization process, ensuring no deformation under loads of tens of tons.
Usage and Installation Precautions
1.Pressure Press-Installation Method: A press machine must be used to press the rubber in smoothly. Do not strike it directly with a sledgehammer, as this will cause the rubber to detach from the metal frame.
2.Lubrication Precautions: During installation, it is recommended to apply a small amount of neutral detergent or a special rubber lubricant. Do not use engine oil or grease, as mineral oil will accelerate rubber aging and corrosion.
3.Pair Replacement: The wear on both sides of the same balance shaft is usually similar. It is recommended to replace them in pairs to maintain suspension balance.
4.Inspection Cycle: For heavy-duty vehicles, it is recommended to inspect every 20,000-30,000 kilometers. If rubber cracking or eccentric vibration of the balance shaft is found, it must be replaced immediately.
