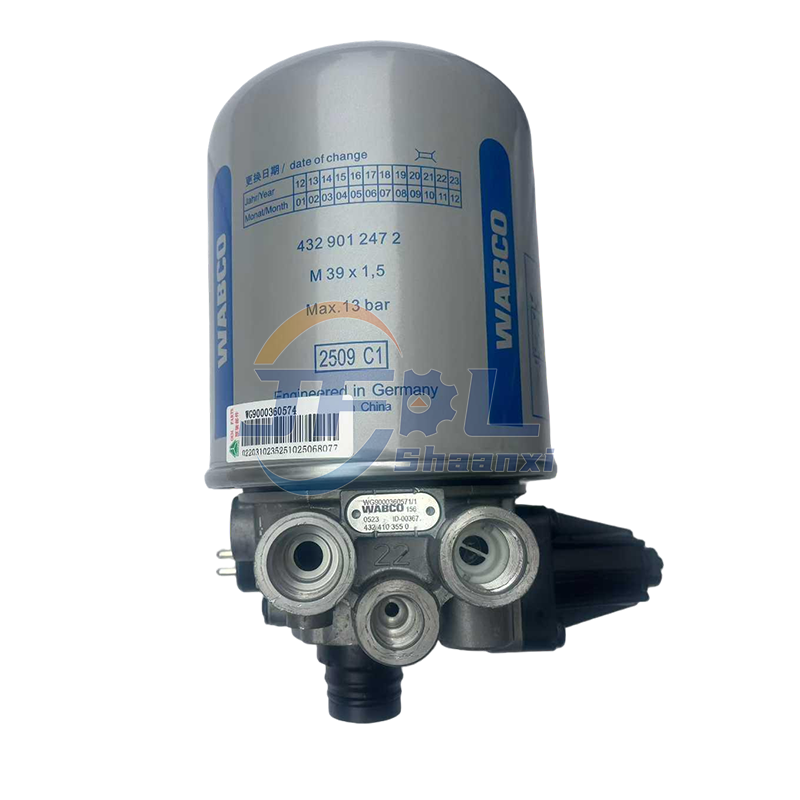

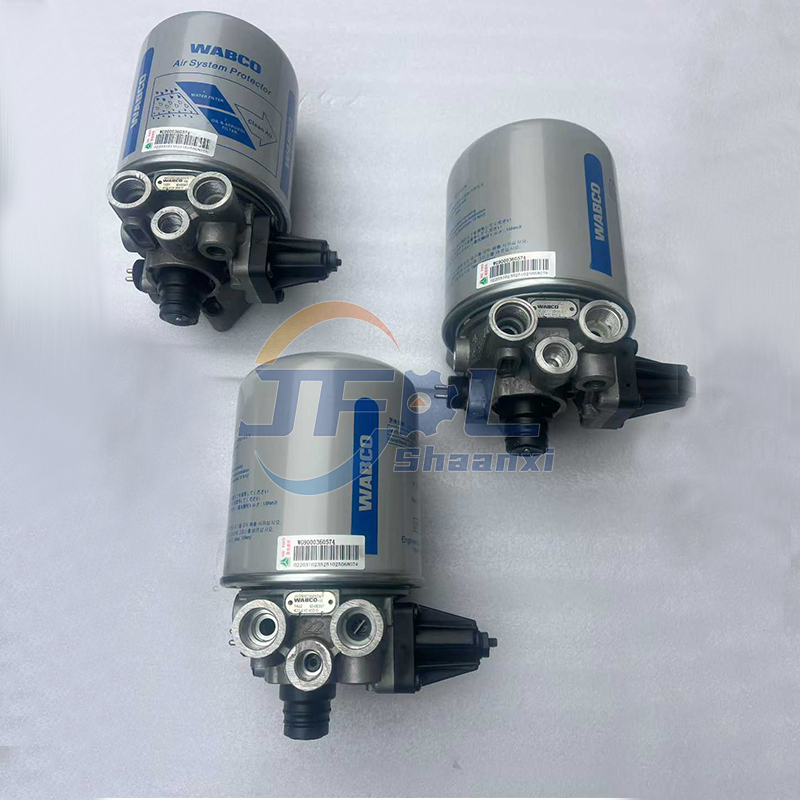

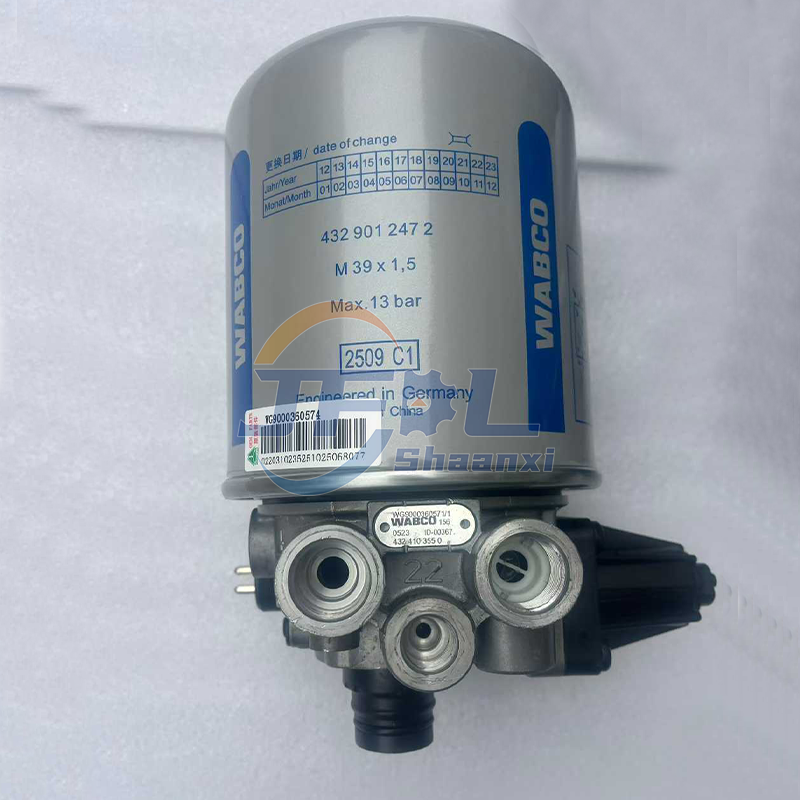

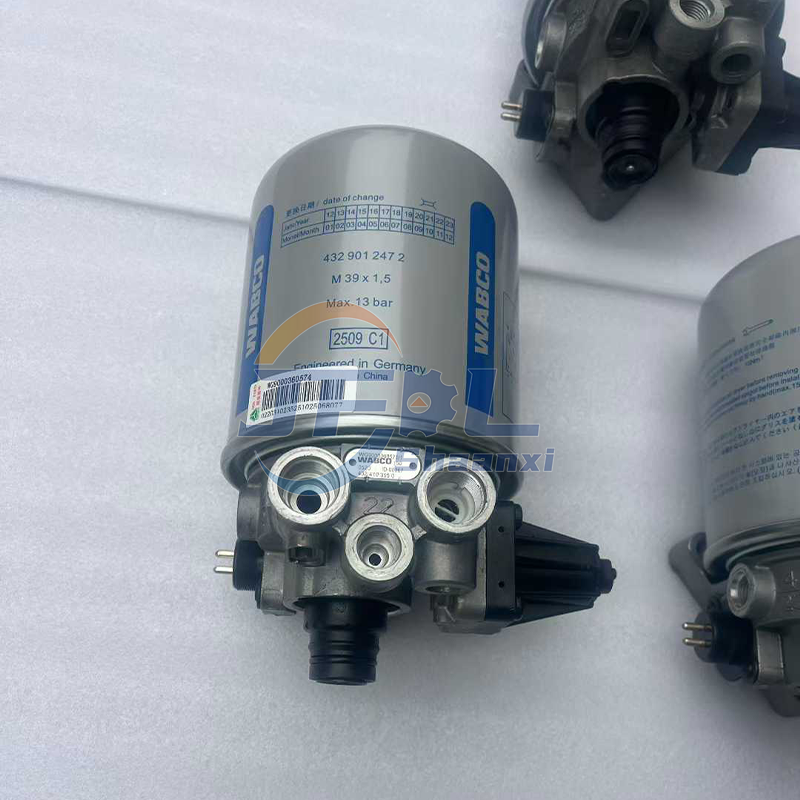

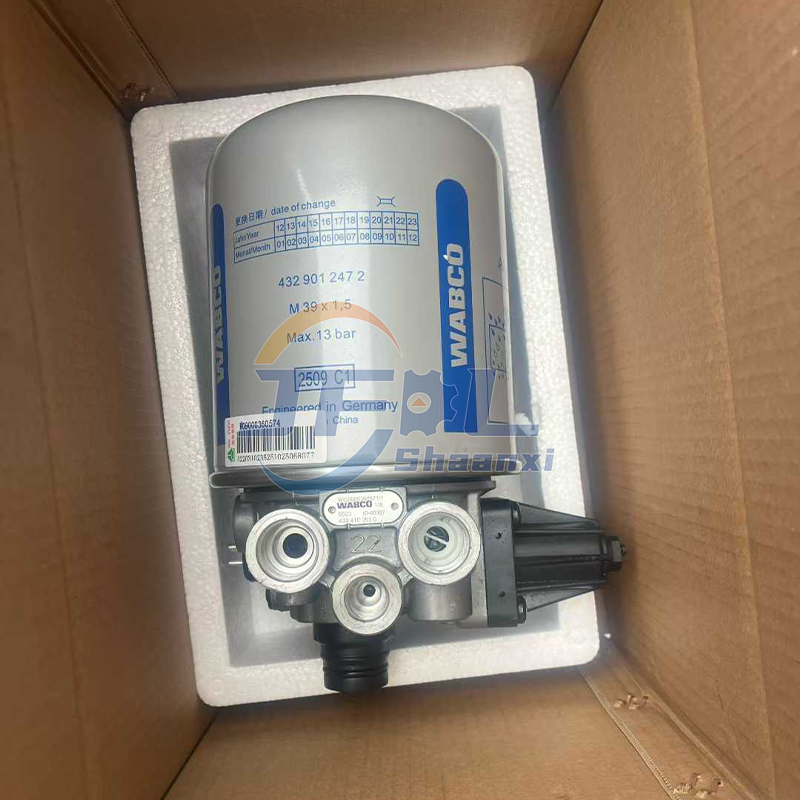

| WG9000360574 Air Dryer Assembly Specifications Table | |
| Parameter | Details |
| Name | Air Dryer Assembly |
| Rated Pressure | 1.25 MPa (approx. 12.5 Bar) |
| Features | With control port, typically equipped with a silver drying canister |
| Filtration Accuracy | Particle removal typically reaches 1.0 micron or smaller |
| Operating Voltage | Heater typically 24V (for winter freeze protection) |
| Operating Temperature Range | Wide operating ambient temperature range, approximately -40℃ to 80℃, suitable for various extreme climatic conditions |
| Dew Point | The dew point of the dried air typically reaches -15℃ or lower, meaning that moisture in the air will only condense back into liquid water when the temperature is below this value |
| Filtration Level | Capable of filtering out impurities, oil mist, and particulate matter with a size of approximately 0.1um(micron) |
| Interface thread | Inlet and outlet ports are typically M22 x 1.5, control ports are typically M12 x 1.5 |
 |  |  |
Applicable Vehicle Models
This part is widely used in various heavy-duty trucks using Sinotruk chassis:
Sinotruk : HOWO, HOWO A7, Sitrak, Hohan, Haojun series, etc.
Performance Features
1. High Pressure Withstandable: Designed specifically for high-pressure air circuits up to 1.25MPa, ensuring stable performance under high-load conditions.
2. Integrated Exhaust: Features built-in exhaust silencing and regeneration functions, automatically draining moisture when the pressure limit is reached.
3. Corrosion Resistance: The internal valve body is made of high-strength aluminum alloy or corrosion-resistant materials.
 |

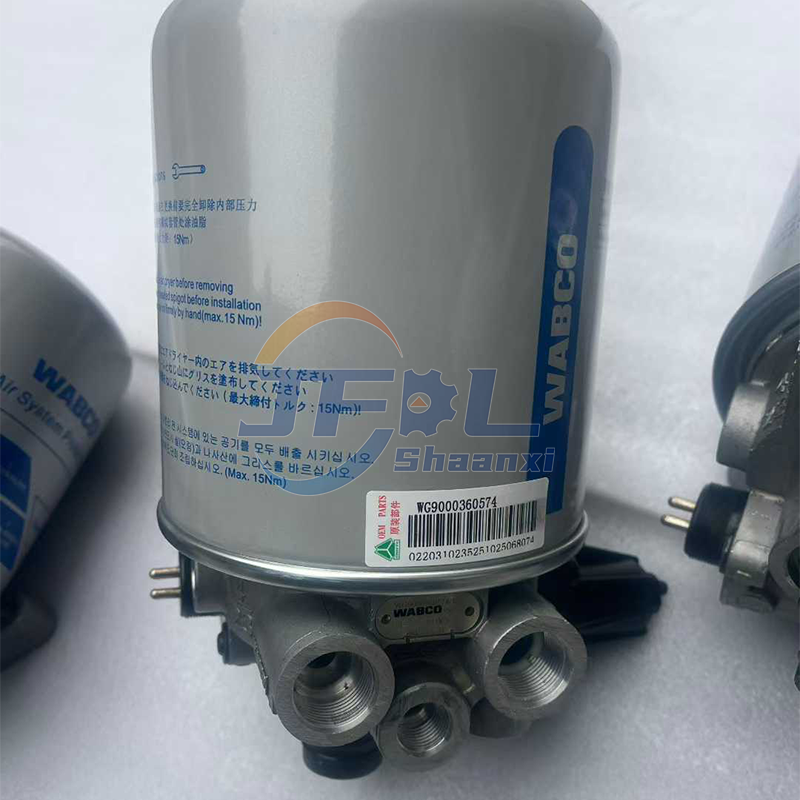

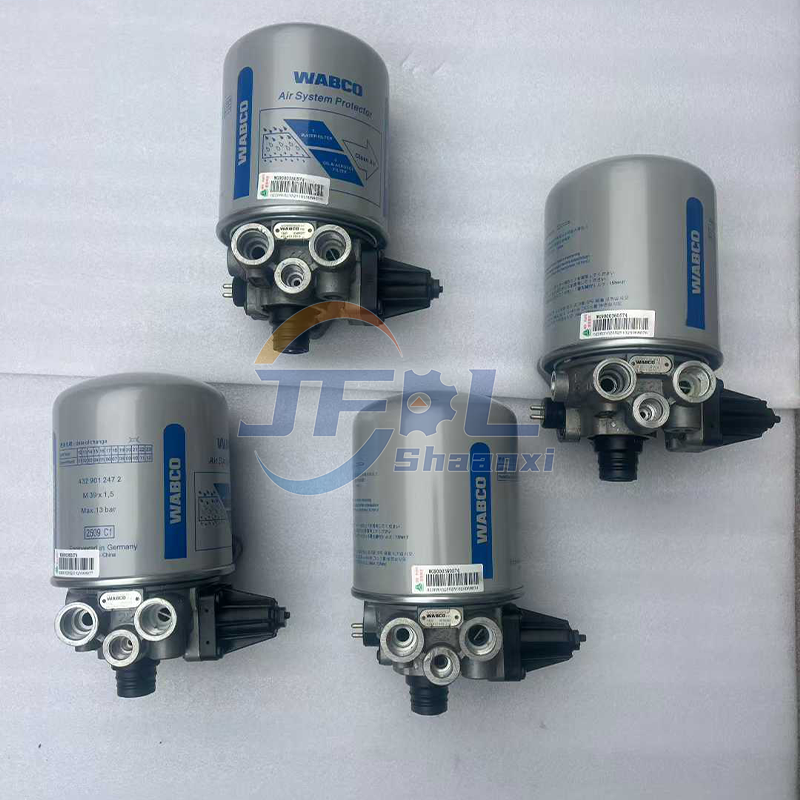

The WG9000360574 dryer assembly is composed of a lightweight, high-strength aluminum alloy base and a pressure-resistant, rust-proof steel shell, with a core filled with a high-efficiency molecular sieve adsorption medium. Its core advantage lies in its ability to withstand high pressures of 1.25MPa and its precise automatic sludge removal and heating function, which can thoroughly filter out moisture and oil from compressed air under extremely cold or humid conditions, ensuring that the truck braking system does not freeze or corrode, thereby significantly improving driving safety and extending the service life of air circuit components.
