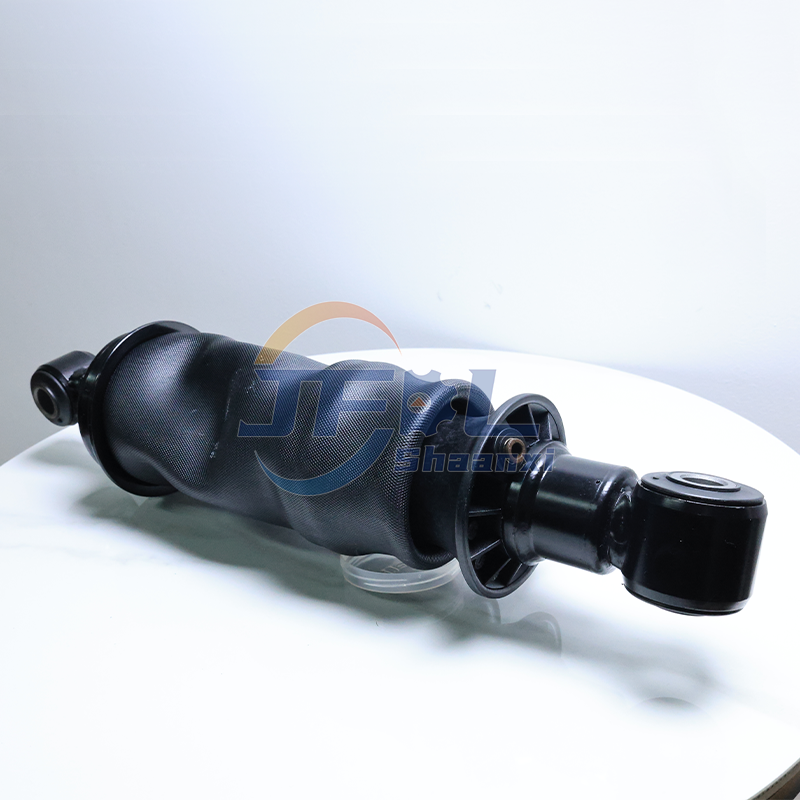

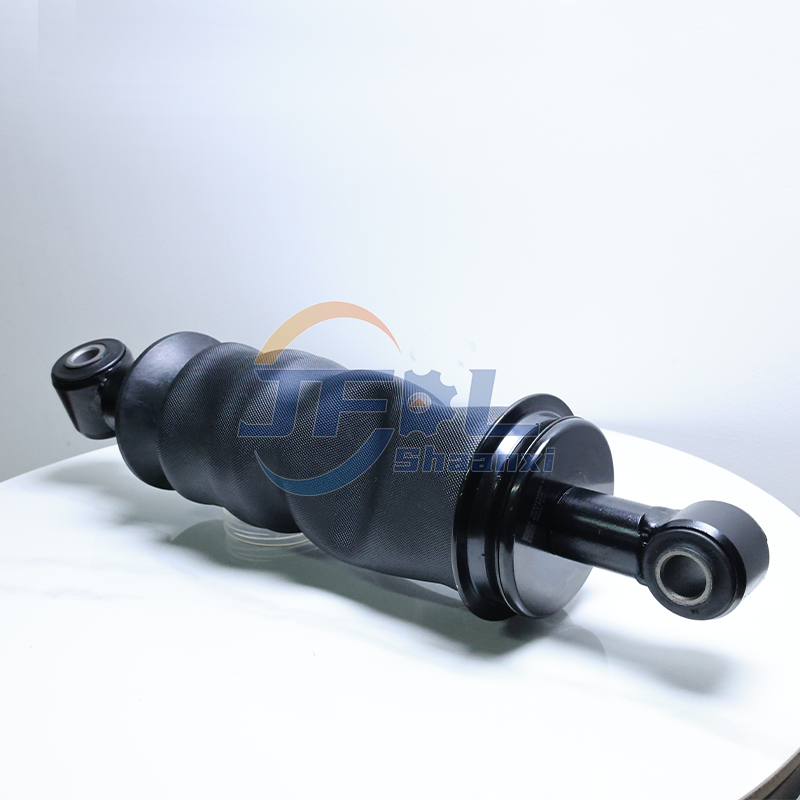

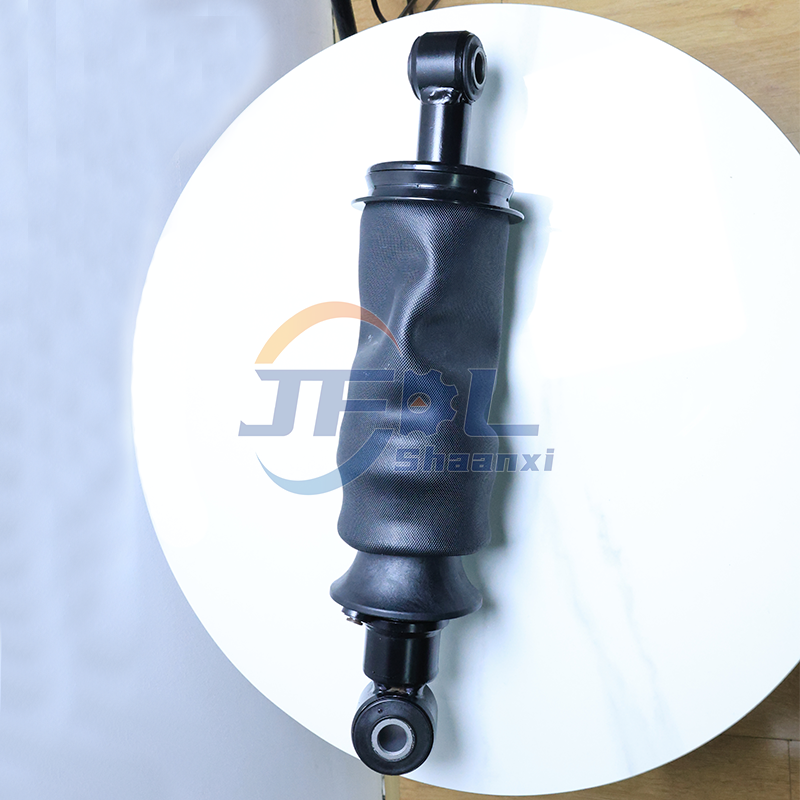

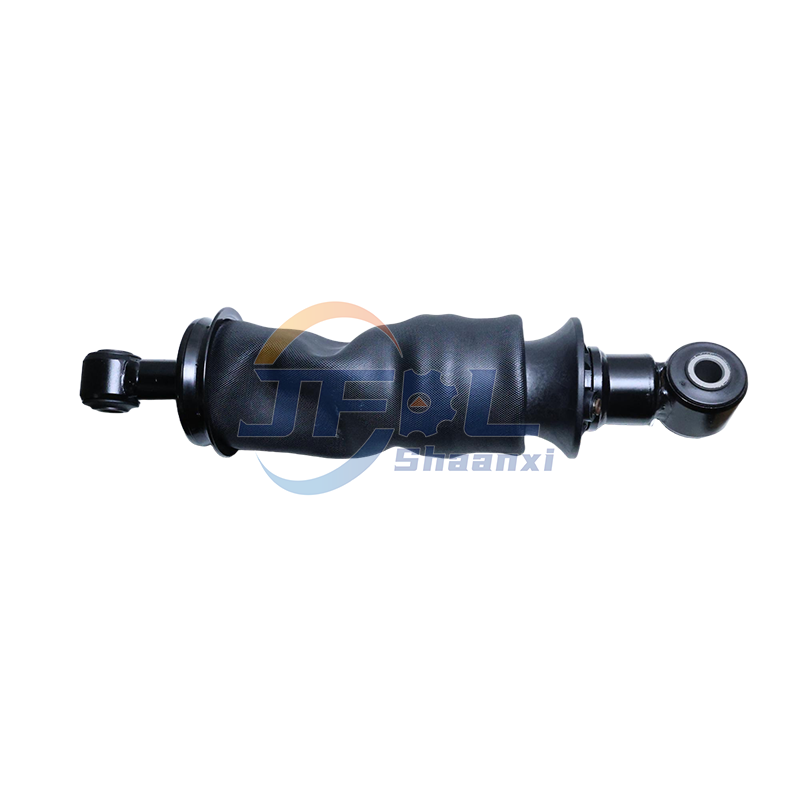

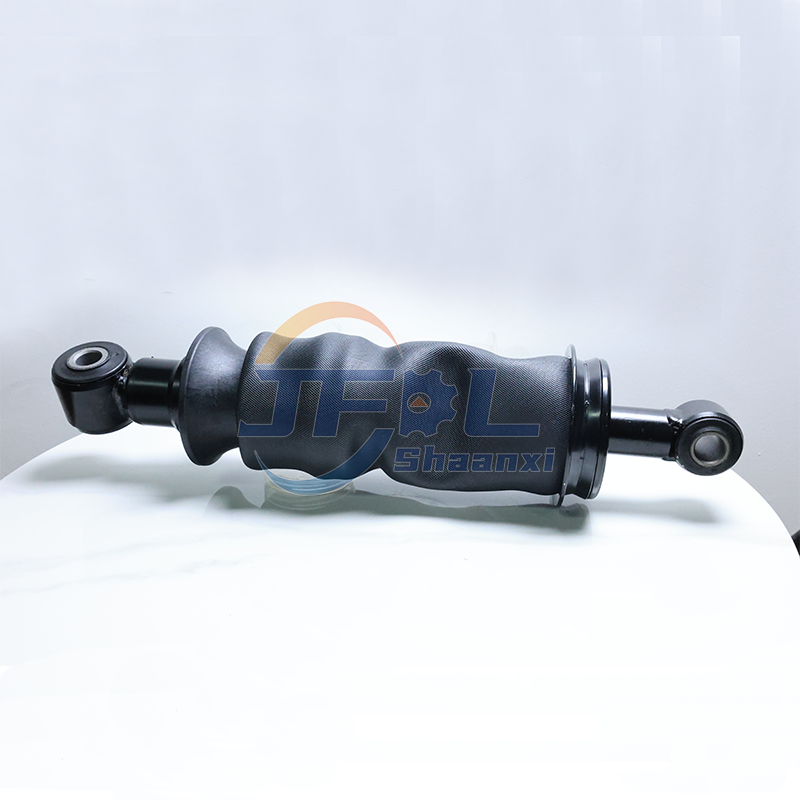

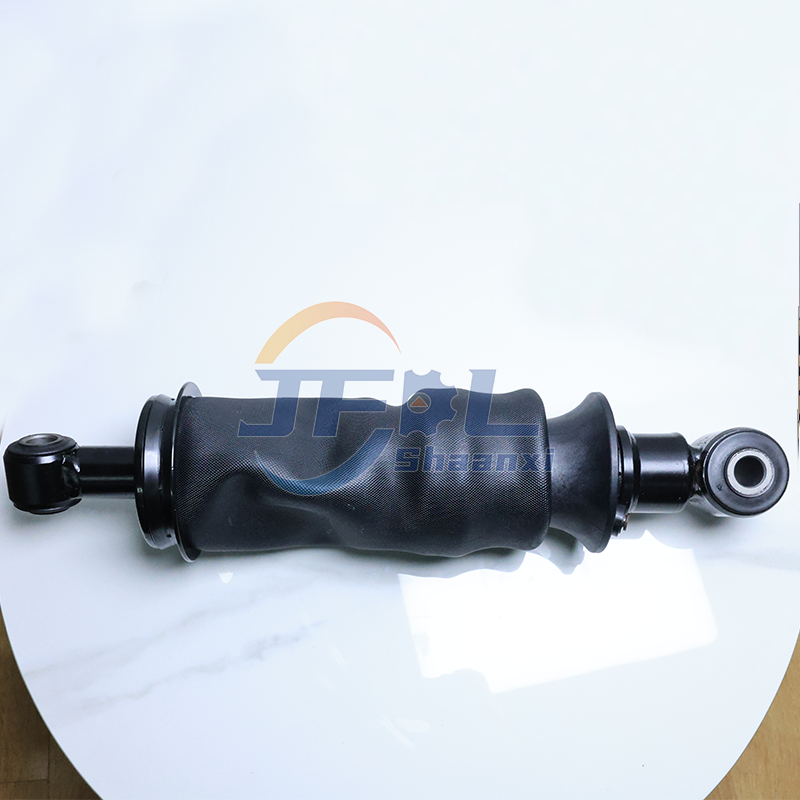

| Cab Front Airbag Shock Absorber Assembly Information Table | |
| Parameter | Details |
| Product Name | Cab Front Airbag Shock Absorber Assembly |
| Product Model | 5001080-C6101 |
| Upper Connection Method | Bolt-fixed (usually with dedicated bracket or threaded connector) |
| Lower Connection Method | Bushing ring type (mounting hole diameter is usually 桅12 mm or 桅14 mm) |
| Air Inlet | Air inlet specification is usually M10脳1 or M12脳1.5 quick-connect connector |
| Working Pressure | Rated working air pressure 0.5 - 0.8 MPa (maximum pressure up to 1.2 MPa) |
| Static Load | Single unit can bear approximately 200 kg - 500 kg of the cab's static weight |
| Damping Characteristics | Bidirectional damping (restoring damping force is greater than compression damping force to prevent excessive cab bounce) |
| Applicable Temperature | -40℃to +70℃(using cold- and heat-resistant synthetic rubber) |
| Airbag Material | High-strength natural rubber compound + Nylon cord fabric layer (multi-layer composite reinforcement) |
| Cylinder body material | High-quality seamless steel pipe, surface treated with electrophoretic paint for rust prevention |
| Piston rod | Treated with medium-frequency quenching and hard chrome plating, wear-resistant and corrosion-resistant |
 |  |
 |  |
Performance Functions
1. Shock Absorption and Cushioning: Absorbs impacts and high-frequency vibrations from the road surface using compressed air from airbags.
2. Enhanced Comfort: Significantly reduces cab sway, alleviating driver fatigue during long drives.
3. Vehicle Body Protection: Reduces structural damage to delicate instruments and electronic components inside the cab caused by severe bumps.
