1001362240
Weichai
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

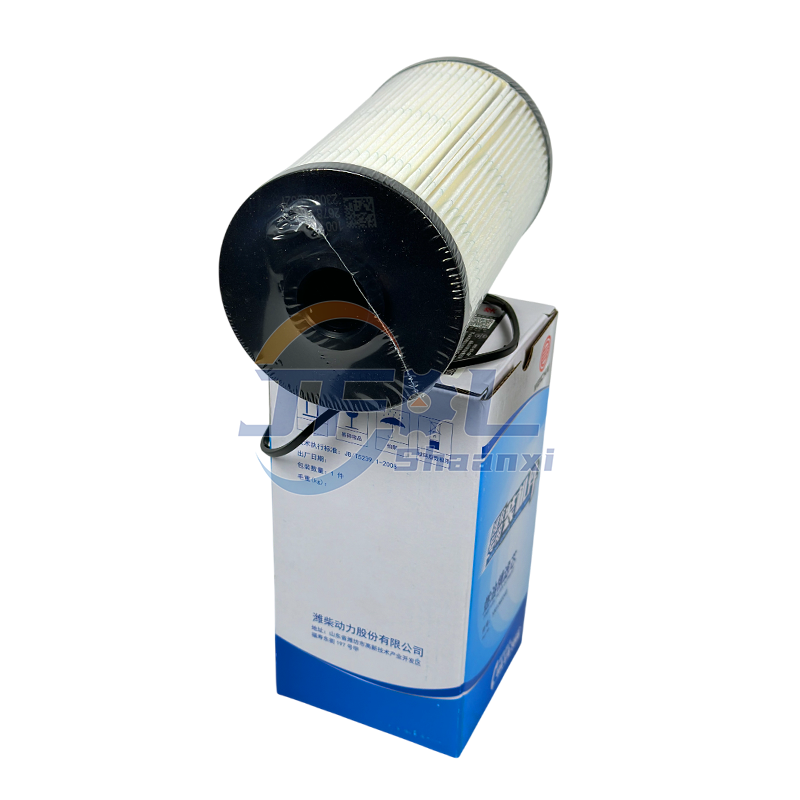

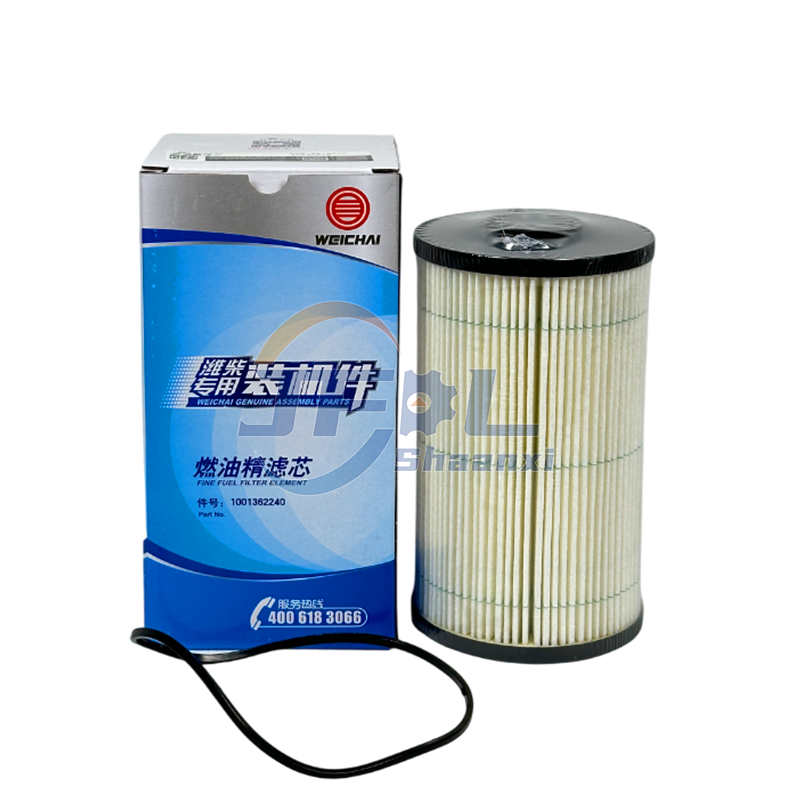

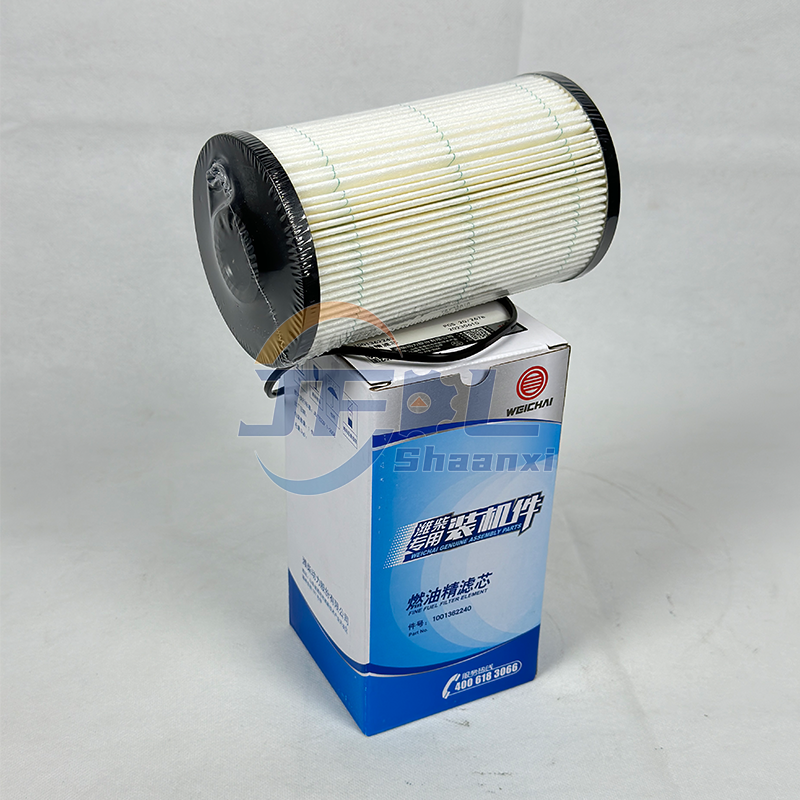

Shacman Truck Weichai Engine Parts Fuel Filter Element 1001362240 Fuel Filter
| Parameter | Specification |
|---|---|
| Model No. | 1001362240 |
| Alternate Part Numbers | 1001362240A, 611600080113 |
| Type | Cylindrical Cartridge-Type Diesel Fuel Filter (Fine Filtration Stage) |
| Core Filtration Material | High-quality synthetic filter paper |
| Structure | Spin-on or replaceable cartridge design (depending on system) Requires dedicated sealing gasket during installation |
| Color | Typically brown-black outer housing |
| Dimensions (Filter Core) | 111.5 mm × 47 mm × 203 mm (L × W × H) |
| Single Unit Packaging Size | Approx. 10 cm × 10 cm × 15 cm |
| Gross Weight (with packaging) | ~0.6 kg |
| Filtration Efficiency | ≥ 99.7% (captures particles as small as 5–10 microns) |
| Filtered Contaminants | Dust, metal shavings, diesel oxidation byproducts, sludge, colloids |
| Operating Environment | Designed for high-pressure common rail diesel systems |
| Quality Certifications | ISO 9001, TS 16949 (Automotive Quality Management System) |
| Warranty Period | Standard: 3 months Some suppliers offer up to 12 months under proper use |
| MOQ (Minimum Order Quantity) | 10 pcs |

![]() | ![]() | ![]() |
✅ Compatible Weichai EnginesWP9H
WP10
WP10H
WP10.5H series diesel engines
| Brand | Compatible Models |
|---|---|
| Shaanxi Auto (SX / Shacman) | - Delong F2000 - F3000 |
| FAW Jiefang | - HanV (HAN-V) National IV versions |
| Sinotruk (CNHTC) | - Selected HOWO series models equipped with Weichai WP10/WP10.5H engines |
| Other Heavy Commercial Vehicles | - Engineering dump trucks - Long-haul tractor-trailers - Large-capacity coaches and buses using matching Weichai powertrains |
Widely used in:
Long-distance freight logistics
Mining and construction transport
Infrastructure development projects

Removes over 99.7% of harmful contaminants from diesel fuel:
Fine dust and sand
Metal wear particles (from tanks/pumps)
Oxidized diesel residues and gums
Prevents clogging of:
High-pressure fuel pumps
Common rail injectors
Precision metering valves
Ensures clean fuel delivery for optimal combustion.
Resistant to high operating temperatures (up to +120°C).
Stable performance under:
Heavy-load conditions
Frequent start-stop cycles
Extreme temperature fluctuations
Dusty and humid environments
Maintains consistent flow rate and pressure drop characteristics.
Significantly reduces abrasive wear on:
Fuel injection pump
Injector nozzles
Rail pressure sensors
Helps prevent costly repairs and unplanned downtime.
Contributes to:
Extended engine life
Improved power output stability
Better fuel economy
Robust shell construction prevents deformation under vibration.
Integrated rubber seal ensures leak-free connection.
Matches original interface perfectly — no modification required.
This filter has several equivalent part numbers across OEM and aftermarket systems:
| Type | Part Number |
|---|---|
| Weichai Original | 1001362240, 1001362240A |
| OE Number | 611600080113 |
| Compatible Alternative Models | |
| 1001362236 | |
| 61018545 | |
| 61018544 |
| Scenario | Description |
|---|---|
| Long-Haul Transportation | Critical for protecting sensitive fuel systems during extended highway runs where fuel quality may vary regionally |
| Construction & Mining Sites | Exposed to high levels of dust and contaminated fuel storage — demands high-efficiency filtration |
| Cold Climate Operation | Prevents wax formation and moisture buildup when used with winter-grade diesel |
| High-Altitude Routes | Clean fuel supply improves combustion efficiency in low-oxygen environments |
| Urban Delivery Fleets | Frequent idling increases carbon deposits — clean fuel helps reduce injector fouling |
Correct Installation Direction
Always follow the flow arrow indicator marked on the filter body.
❌ Never install backwards — reverse installation restricts fuel flow and can cause engine starvation or stalling.
Bleed Air from Fuel System After Replacement
If vehicle is equipped with a manual priming pump, operate it until firm resistance is felt.
For vehicles without hand pump, pre-fill the filter with clean diesel before installation.
After installing the new filter:
Start engine and allow it to run while checking for leaks and stable idle.
Follow Recommended Replacement Interval
Standard interval: Every 10,000 km or per manufacturer maintenance schedule.
In harsh conditions (poor fuel quality, dusty areas): shorten to every 7,000–8,000 km.
Even if mileage is low, replace at least every 2 years — aged filter media loses efficiency and may degrade internally.
Use Genuine or Certified-Quality Filters Only
Poor filter paper allows contaminants through
Weak housings may collapse or rupture
Substandard seals lead to air ingress
Avoid low-cost imitation products:
Risk: Severe damage to high-pressure fuel pumps and injectors (repair cost > $1,000 USD)
Monitor for Warning Signs
Replace immediately if you notice:
Persistent fuel pressure warning light
Hard starting or rough idle
Loss of power or black smoke
Increased fuel consumption
Proper Storage Before Use
Store in a dry, clean, well-ventilated area.
Avoid direct sunlight (UV damages rubber seals).
Keep sealed until ready for installation to prevent moisture absorption.
Dispose of Used Filters Responsibly
Drain residual fuel into approved container.
Recycle according to local environmental regulations.
Do not discard in regular trash or landfill.
