1002076682 1000264408
Weichai
| Availability: | |
|---|---|
| Quantity: | |

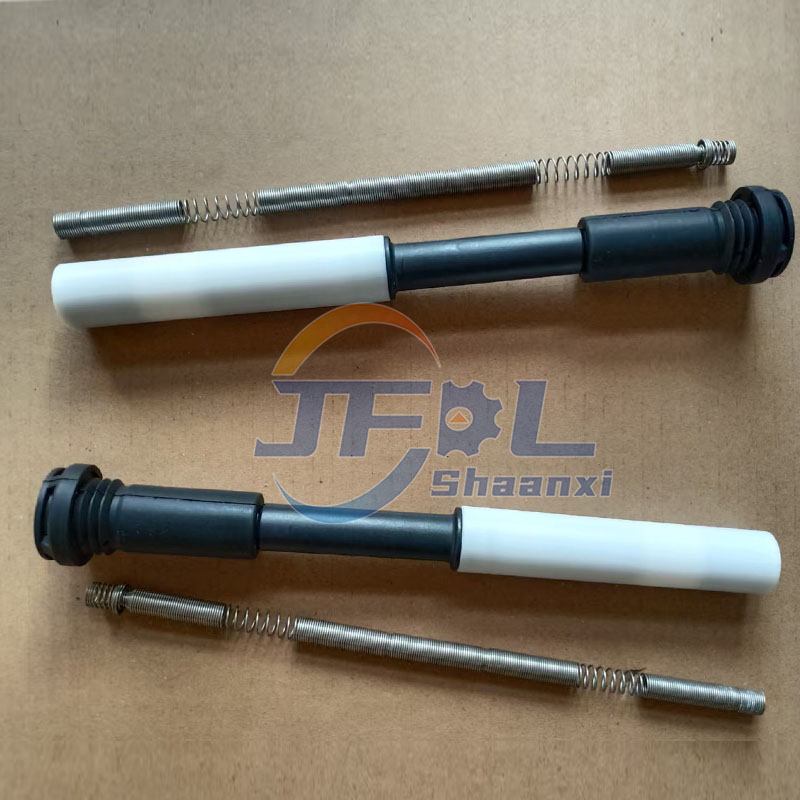

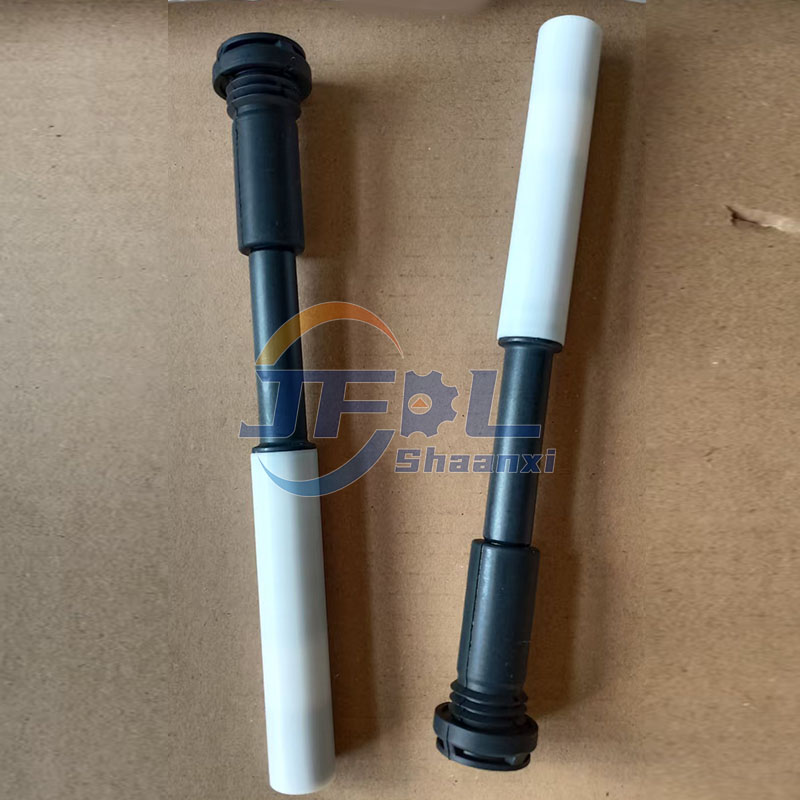

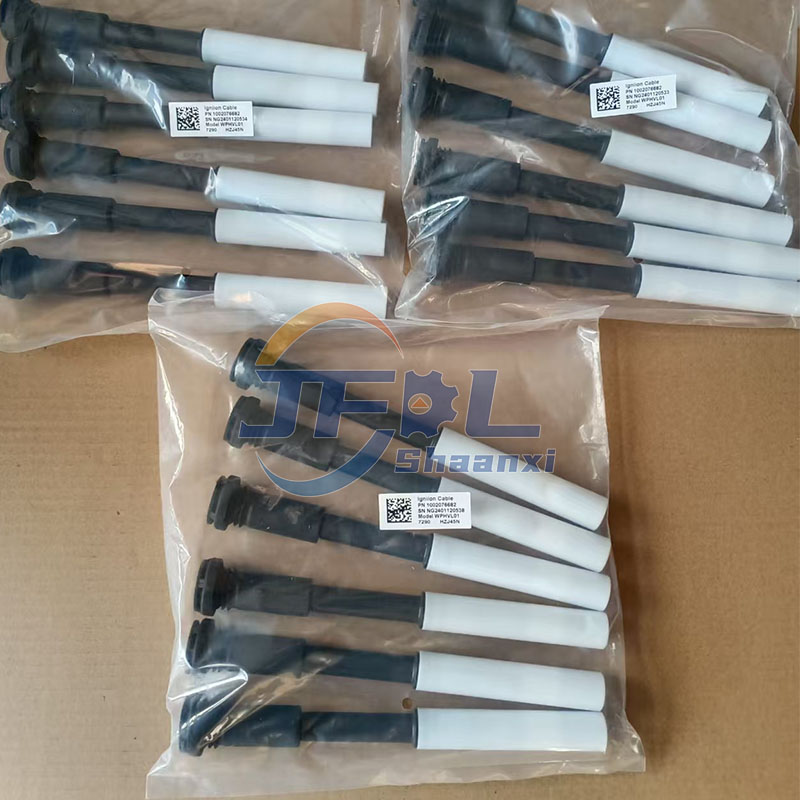

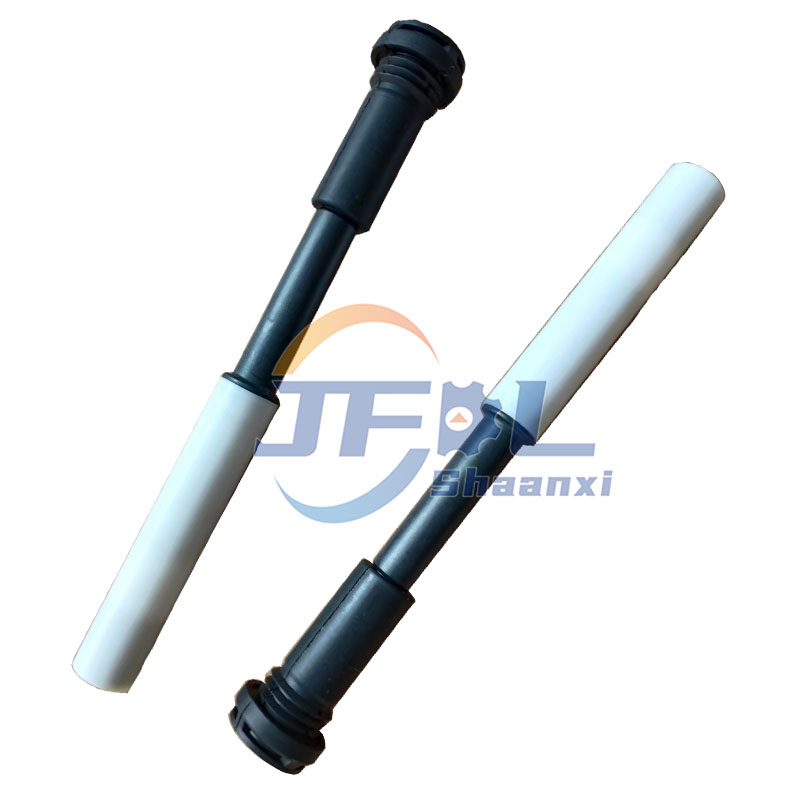

Original Shacman Truck Accessories Ignition Coil Sheath 1002076682 1000264408 Natural Gas Ignition Cable for WEICHAI Engine Parts

The ignition coil sheath is the connecting and insulating component between the ignition coil and the spark plug. Its main functions are:
1. Insulation: Prevents high-voltage current leakage to the engine block or other components.
2. Sealing: Prevents moisture, dust, and oil from entering the spark plug bore, protecting the spark plug and coil connection terminals.
3. Shock Absorption: To a certain extent, it secures the ignition coil and reduces the impact of engine vibration.
| Item name: | Ignition Coil Sheath / spark plug sleeve | Application: | Truck Engine Spare Parts |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |

![]() | ![]() | ![]() |

Excellent heat resistance: Withstands the high temperatures found in the engine compartment.
Good flexibility and sealing: The silicone rubber material ensures a tight fit between the spark plug ceramic body and the valve cover during installation, forming an effective seal.
Arcing resistance: Effectively prevents high-voltage sparking, ensuring accurate transfer of ignition energy to the spark plug.

Suitable for Weichai WP10, WP12, and WP13 series CNG and LNG engines.
Suitable for Shacman M3000 and X3000 series trucks, tractors, and buses using these Weichai gas-fired engines.

Ignition Coil: The sheath is typically used with the ignition coil (part number such as 1007324835 or 1003650711).
Spark Plug: The sheath directly covers the spark plug, ensuring a high-voltage spark is generated in the cylinder.
Ignition Wiring Harness: The cable connecting the coil and the engine control unit (ECU).
Valve Cover Gasket: Part of the sheath mounting area.
