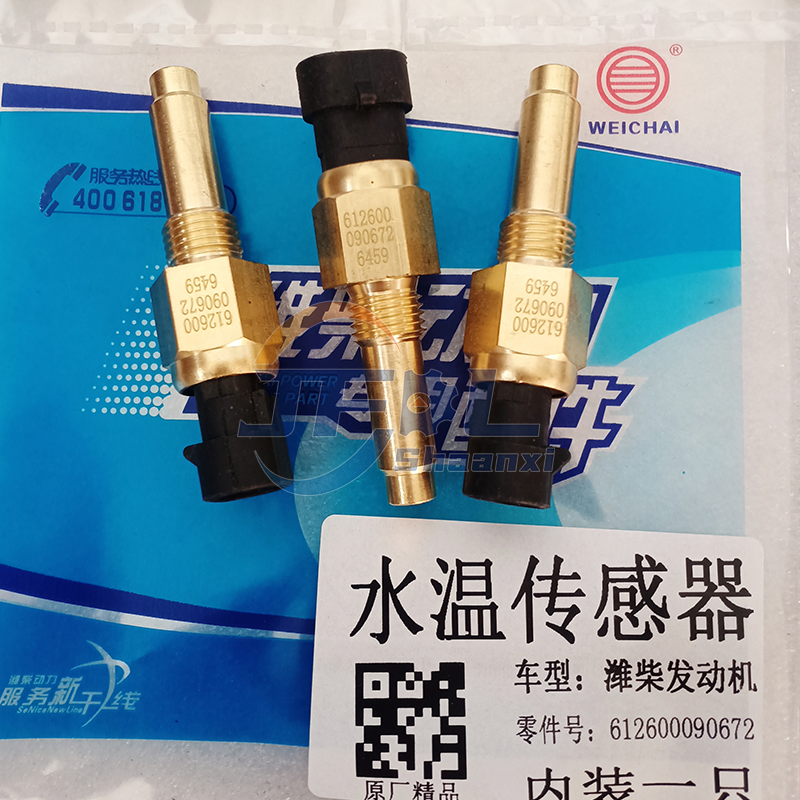

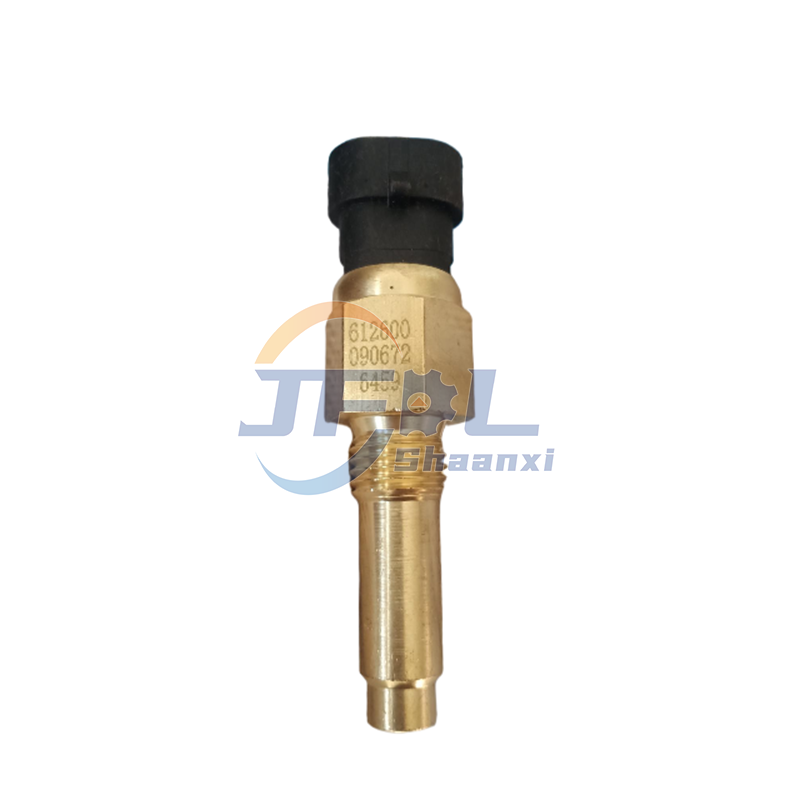

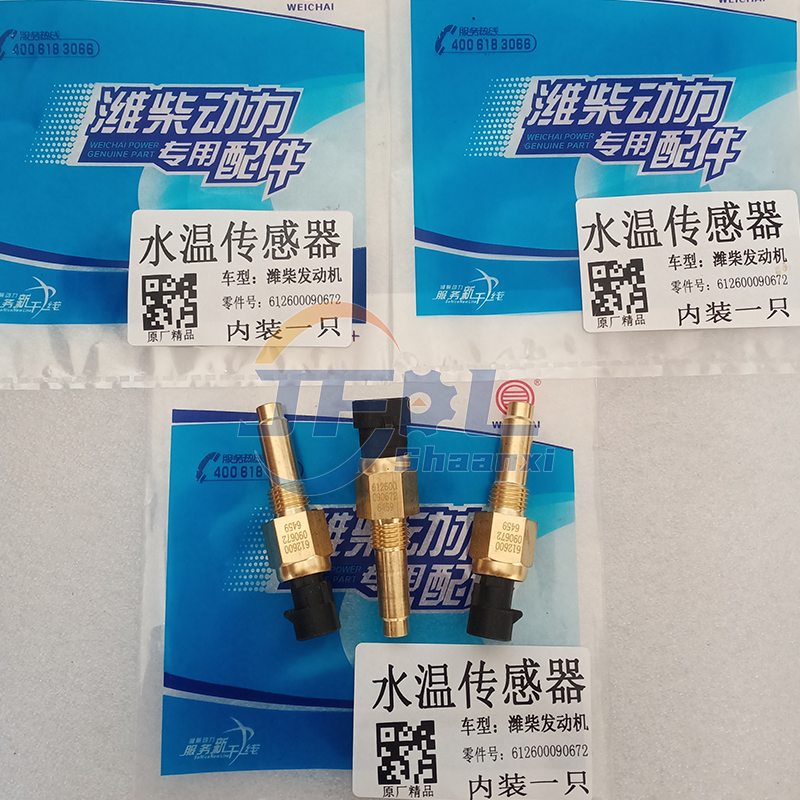

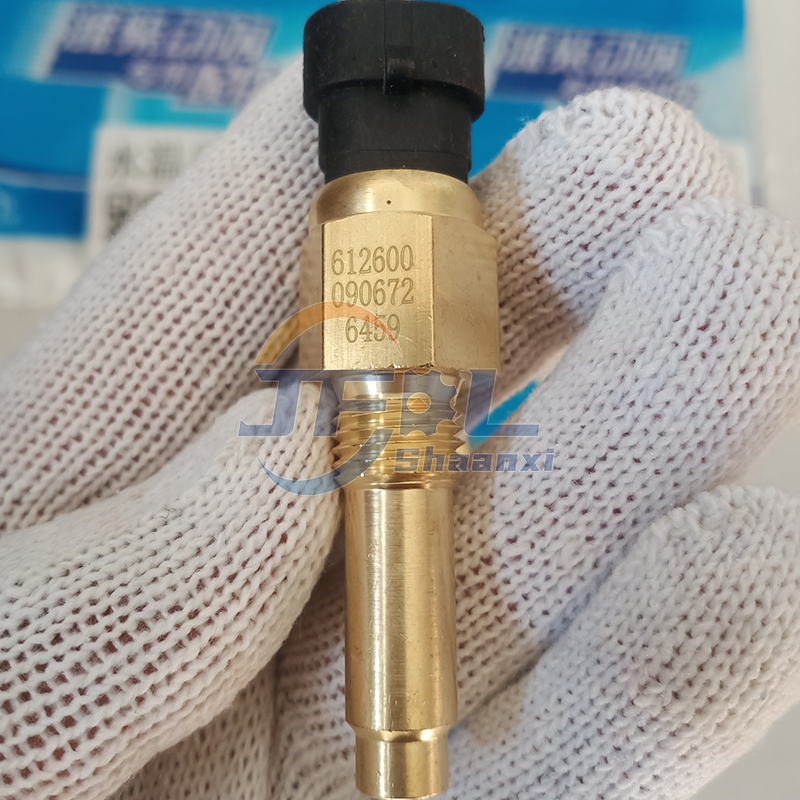

Weichai Engine 612600090672 Water Temperature Sensor
| Item name: | Water Temperature Sensor | Application: | Truck engine Systems |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
 | |
|
Core fit engine：Weichai WP10/WP12/WP13/WP10.5H series
Matching vehicles：Shacman Delong F3000/X3000/X5000/M3000S, Sinotruk HOWO T7H/T5G, Foton Auman GTL/EST, Hongyan Jieshi heavy trucks; compatible with Weichai-powered buses & engineering machinery
Sensing range: -40℃~130℃, accuracy ±1℃, real-time signal transmission, ensure engine constant temperature operation
Specification: 24V, thermistor type, fully compatible with original ECU, no fault alarm, fit National V/VI emission models
Durability: Stainless steel shell, IP67 waterproof, coolant corrosion & vibration resistant, service life ≥200,000km
Safety: Overload protection, automatic power-off when short circuit, no damage to original circuit
| Part No. | Accessory Name | Compatibility Note |
|---|---|---|
| 612600090673 | Water Temp Sensor Connector/Harness | Must replace with sensor |
| 612600090288 | Coolant Temp Alarm Switch | Linked with sensor system |
| 612600090300 | Thermostat | Co-control engine water temp with sensor |
| 612600090500 | Coolant Reservoir | Match cooling system & sensor |
| 612600090120 | Engine Water Pump | Guarantee coolant circulation for accurate sensing |
