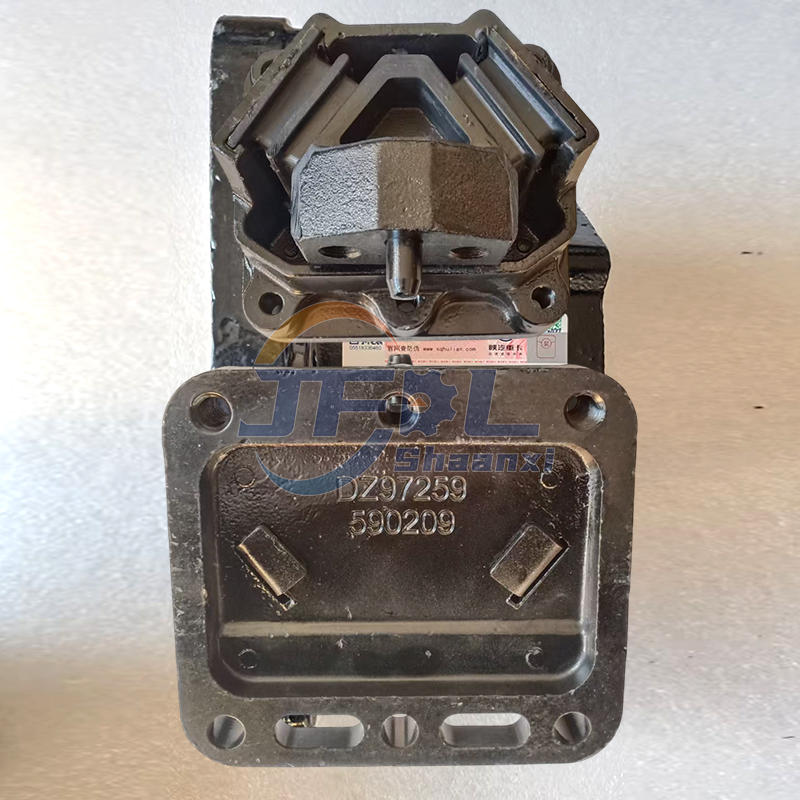

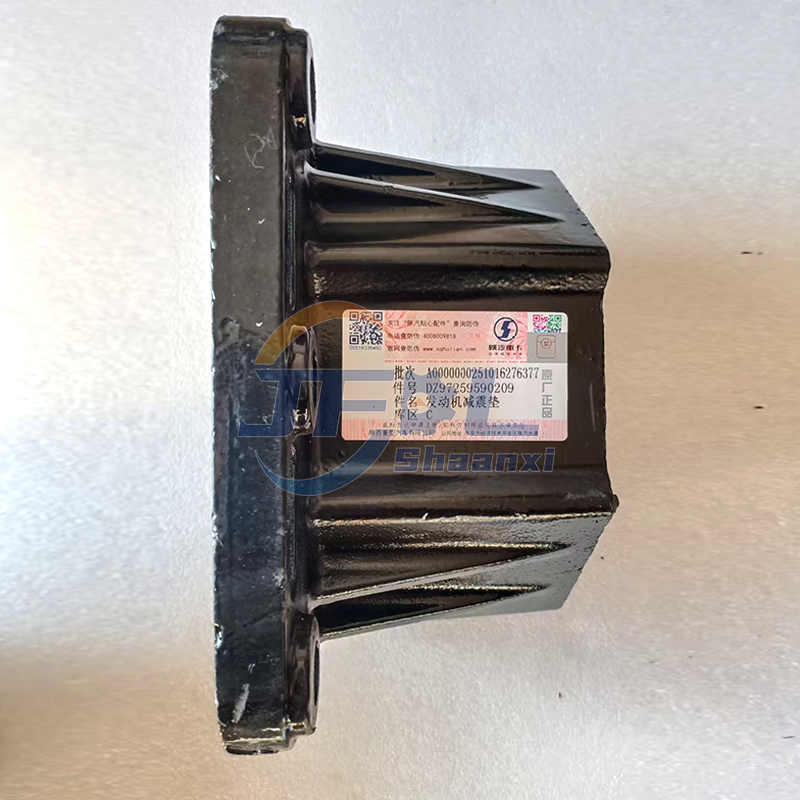

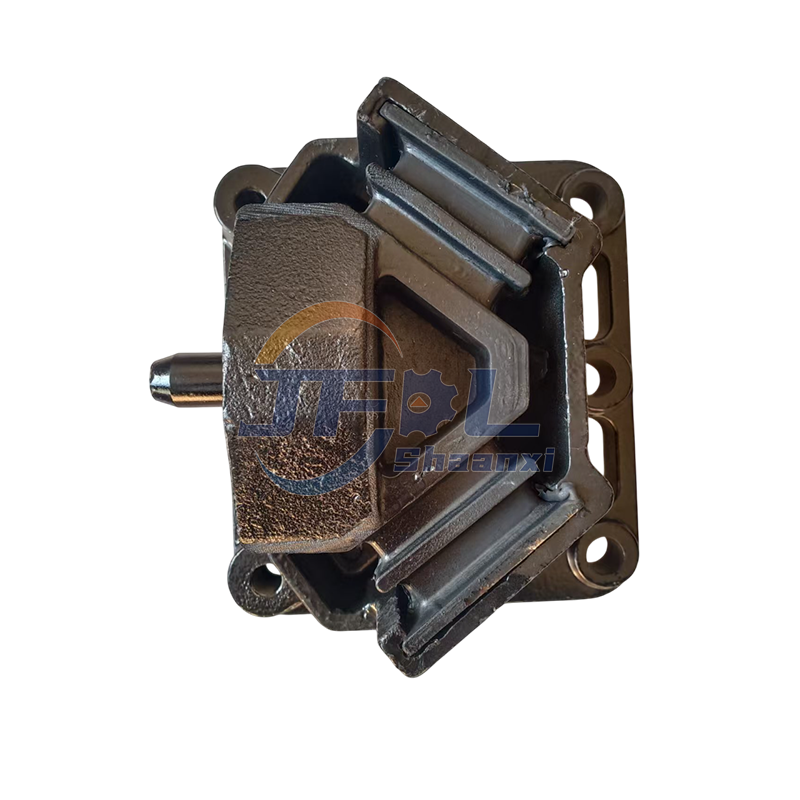

Factory Supply Heavy Duty Truck Engine Rear Support Assembly Rear Engine Mount Pad Rear Engine Feet DZ97259590209 for Shacman.
Item name: | Engine rear support assembly | Part No. : | DZ97259590209 |
| MOQ: | 1 pcs | Sample: | Available |
| Applicable Models: | X3000、X5000 / X5000S、X6000 | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzho |
| | |
Composite damping structure: Constructed from a high-strength metal frame and vulcanized with premium synthetic rubber. The latest 2026 rubber compound features enhanced linear damping characteristics, effectively absorbing complex vibrations at idle and high speeds.
Superior weather resistance: Designed for the demanding transportation conditions of 2026, this model boasts excellent high-temperature resistance—withstanding engine compartment temperatures exceeding 120°C—and resistance to oil corrosion, preventing premature softening or cracking of the rubber due to oil contamination.
Widely used in Shacman Delong series vehicles equipped with high-horsepower engines —such as Weichai WP12, WP13, WP15NG, etc.:
Mainstream models: Shacman Delong X3000, X5000 / X5000S, X6000, and M3000 / M3000S cargo trucks and tractors.
Special vehicles: Due to their high load-bearing capacity, they are also commonly used in Shacman series heavy-duty dump trucks and mining trucks.
When replacing the DZ97259590209 rear-end support, it is recommended to simultaneously check the following related components to ensure the overall suspension system balance:
1. DZ97259590208 / DZ97259590210: The corresponding left/right front-end supports (engine mounts).
2. Engine mount bracket: The cast steel metal component connecting the padding to the frame; check for fatigue cracks.
3. High-strength connecting bolts: Engine mount bolts are subjected to significant stress; after disassembly, it is recommended to check for thread elongation or deformation.
4. Driveshaft universal joint: If the rear-end support is damaged and sags, it will typically accelerate the wear of the driveshaft universal joint.
