615Q0170004
Weichai
| Availability: | |
|---|---|
| Quantity: | |
Shacman Heavy Duty Truck Parts Weichai WD615 WP12 WP10 Gasoline Engine

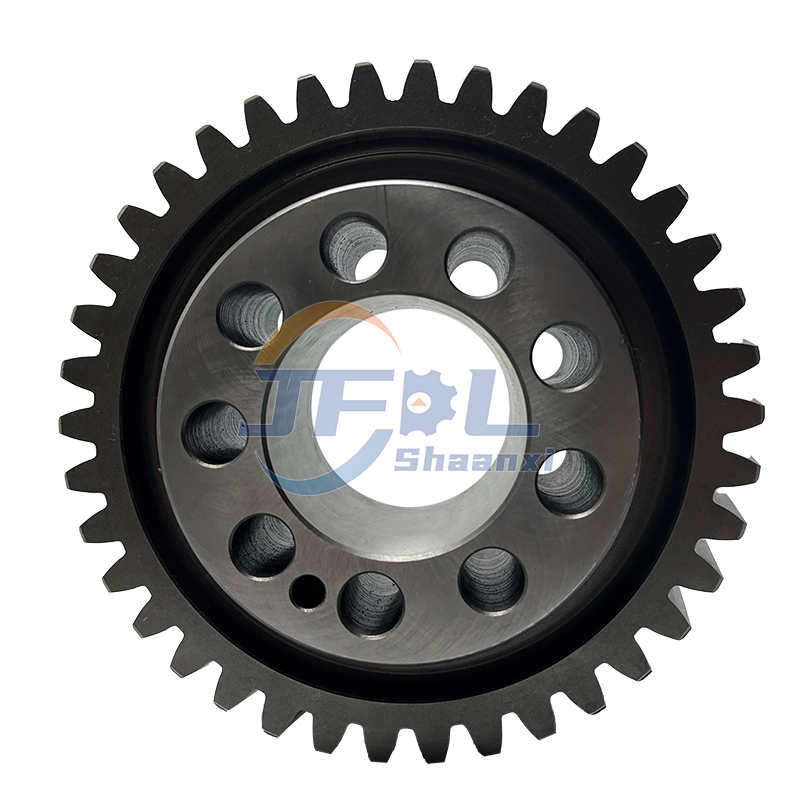

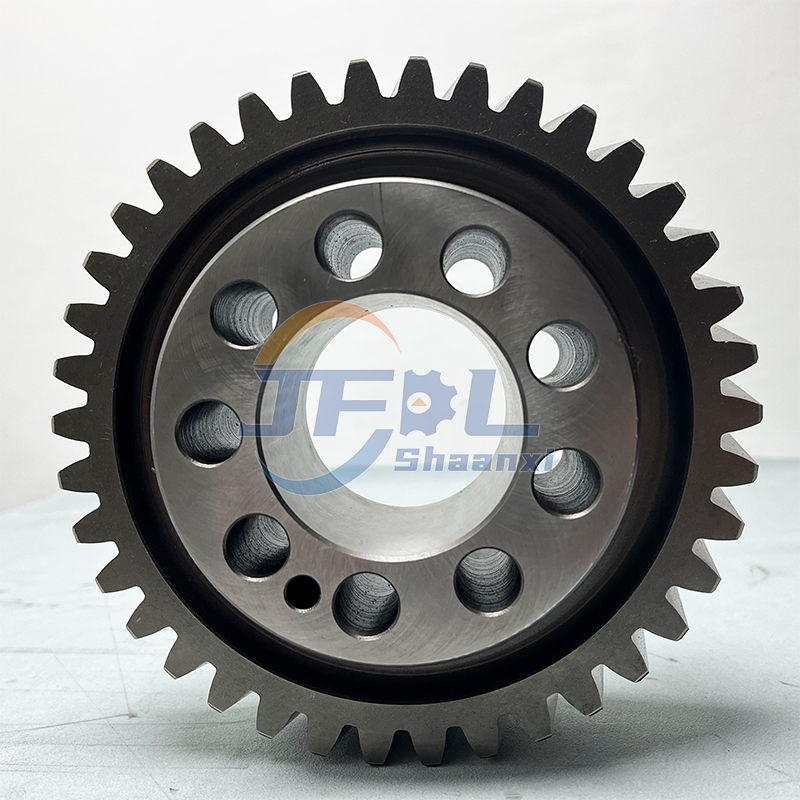

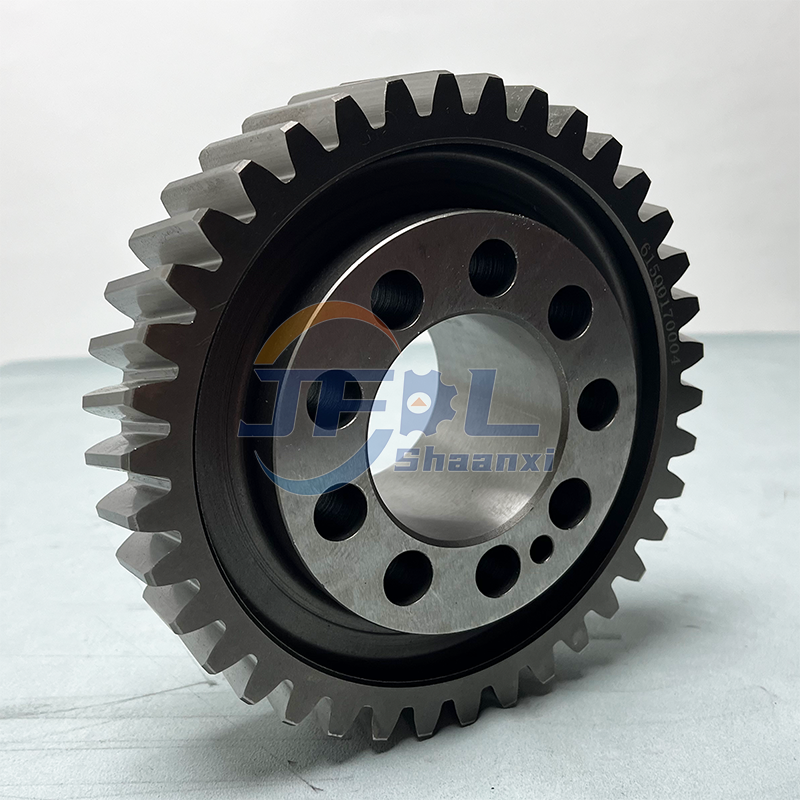

615Q0170004 Crankshaft Gear

| Item name | Crankshaft Gear | Part No. | 615Q0170004 |
| MOQ | 1 PC | Delivery time | 3-7 working days |
| Warranty | 6 months | Payment method | T/T, Western Union, Alipay, etc. |
| Services | 24 Hours Online | Port | Shanghai, Qingdao, Shenzhen |

| Parameter | Specification |
|---|---|
| Gear Type | Spur gear (straight-cut teeth) |
| Number of Teeth | Typically 38–42 teeth |
| Pitch Diameter | Approx. 120–130 mm (varies by module and tooth count) |
| Module (Gear Module) | Module 3.0 or 3.5 (standard for heavy-duty diesel engines) |
| Bore Diameter | Matches crankshaft journal size (~Ø50–60 mm, depending on engine series) |
| Width | ~40–50 mm |
| Hardness | Surface hardness: HRC 58–63 (after carburizing and quenching) |
| Tolerance Class | DIN 5 or ISO 6 (high precision for timing accuracy) |
| Weight | Approx. 4.5–6.0 kg (9.9–13.2 lbs) |

| Brand | Models |
|---|---|
| SINOTRUK / CNHTC | HOWO 7, HOWO A7, SITRAK C7H, SITRAK G7 |
| Shacman | X3000, F3000, L3000 |
| Foton Auman | GTL, H5, L3 |
| Dongfeng Commercial Vehicle | D310, KX, KL series (with Weichai-powered variants) |

![]() | ![]() | ![]() |
