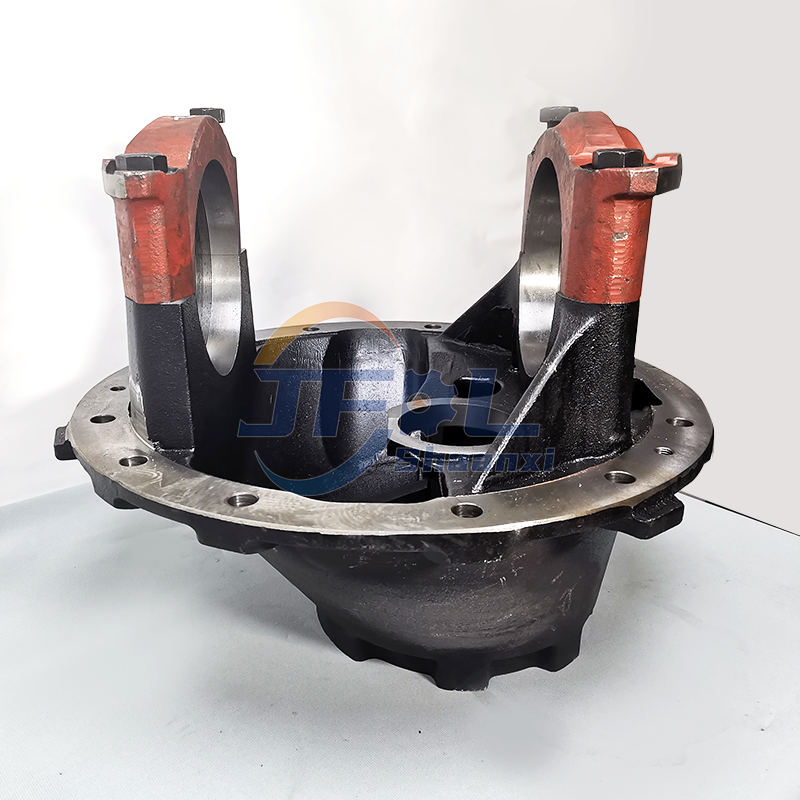

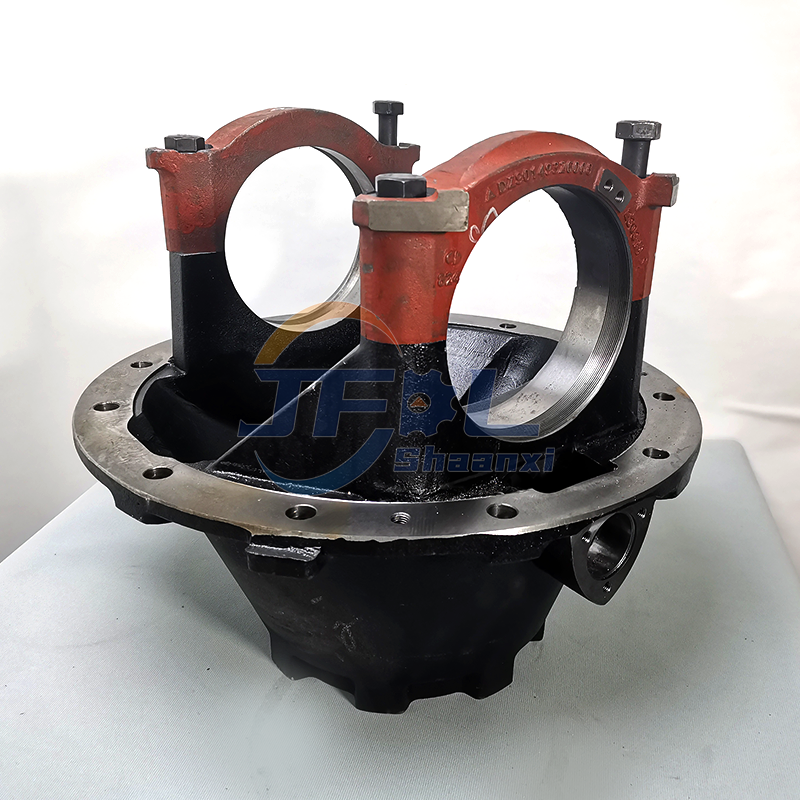

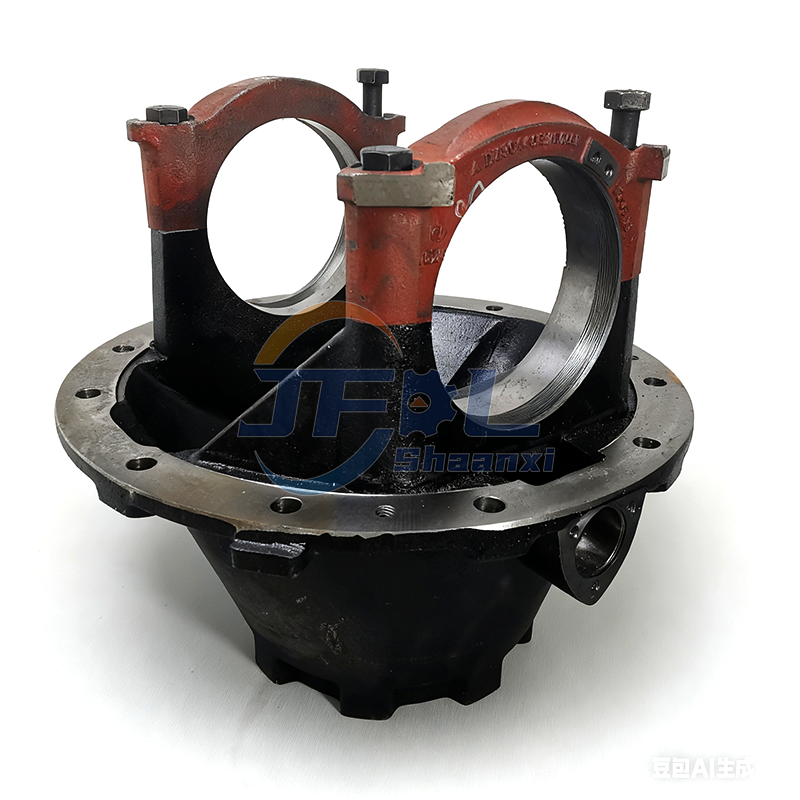

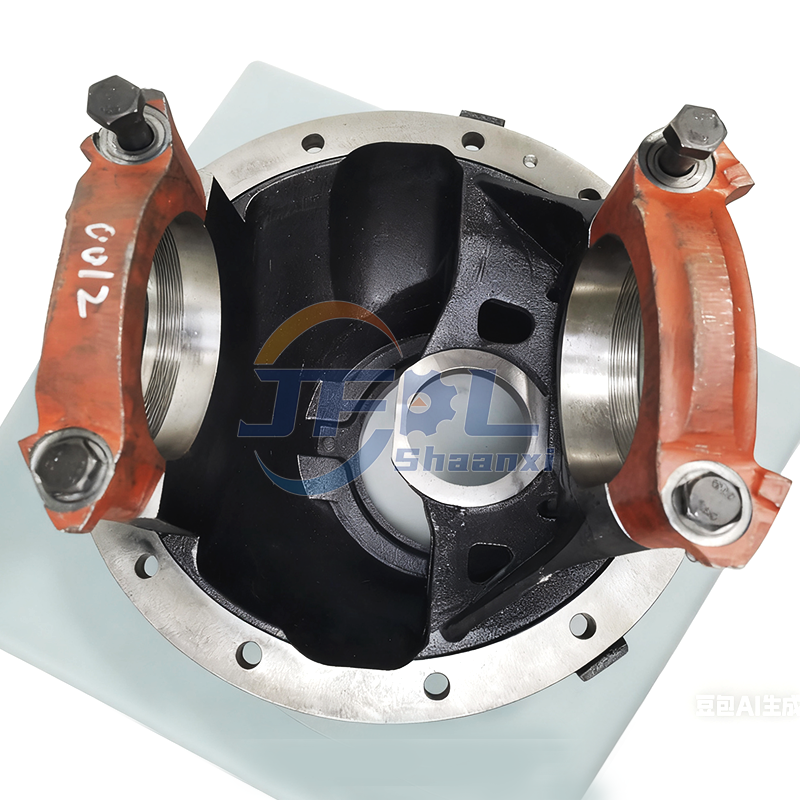

SHACMAN SINOTRUK Truck Spare Parts HANDE AXLE Main Reducer Housing HD90149320141
 | | |
The HD90149320141 is an original equipment (OE) rear axle main reducer housing used in heavy-duty commercial trucks, primarily manufactured by Shacman (Shaanxi Automobile Group) and compatible with certain Sinotruk HOWO models. This component serves as the core structural casing of the rear axle assembly, housing the final drive gear set, differential unit, bearings, and lubrication system.
As a critical drivetrain component, it ensures reliable power transmission from the driveshaft to the wheels under extreme load and operating conditions.
| Attribute | Description |
|---|---|
| Part Name | Rear Axle Main Reducer Housing / Final Drive Housing |
| OEM Number | HD90149320141 |
| Alternative Part Numbers | May vary slightly by supplier or batch; no universal standard replacement |
| Type | Drivetrain Component – Axle Assembly Core Part |
| Function | Houses and protects the ring & pinion gears, differential, bearings, and lubricant |
| Application | Heavy-Duty Trucks, Tractors, Dump Trucks, Construction Vehicles |
| Genuine Part | Yes – Designed to Shacman OE specifications |
| Quality Standard | Meets or exceeds Chinese national standards (GB/T), IATF 16949 certified manufacturing |
| Origin | Xi’an, Shaanxi Province, China |
| Packaging | Securely packed in wooden crate or reinforced cardboard box for shipping |
| Parameter | Value |
|---|---|
| Material | High-Strength Cast Steel or Ductile Iron (QT500-7 or equivalent) |
| Manufacturing Process | Precision Casting or Forging, CNC Machined Surfaces |
| Design Type | Integral Housing (Non-Split or Two-Piece Design depending on model) |
| Mounting Interface | Matches Shacman F2000/F3000/X3000 axle platforms |
| Gear Compatibility | Designed for hypoid spiral bevel gears (typically 4.8–5.9 final drive ratio variants) |
| Lubricant Capacity | Holds approximately 12–18 liters of gear oil (depending on axle type) |
| Sealing Method | Uses rubber/O-ring seals at cover joints and input shaft seal (oil-proof design) |
| Ventilation System | Integrated breather valve to prevent pressure buildup due to thermal expansion |
| Weight | Approx. 80–120 kg (varies based on exact configuration) |
| Surface Finish | Painted or anti-rust coated for corrosion resistance |
| Bolt Pattern | OEM-specific bolt holes for differential cover, suspension brackets, and brake lines |
Note: Exact internal dimensions and mounting points are engineered to match specific axle models — always verify compatibility before installation.
This reducer housing is widely used across major Chinese heavy-duty truck platforms with matching rear axle configurations.
SHACMAN (Shaanxi Auto):
F2000 Series
F3000 Series
X3000 Series (including high-end variants)
SINOTRUK (China National Heavy Duty Truck Corp):
HOWO Series
HOWO A7
Steyr-based Models
Huanghe Commander
Other heavy vehicles using compatible dual-reduction or single-reduction axles with similar center distance and flange layout
✅ Engine Compatibility: Typically paired with engines such as Weichai WP12, Cummins ISGe, or MAN-tech engines via appropriate driveline setup.
High Structural Strength: Engineered to withstand heavy torque loads, shock impacts, and long-term stress during full-load operation.
Precision Alignment: Machined bearing bores and gear mounting surfaces ensure accurate meshing of ring and pinion gears, reducing noise and wear.
Vibration & Noise Reduction: Rigid construction minimizes driveline vibrations and operational noise.
Effective Sealing & Lubrication Retention: Prevents gear oil leakage while maintaining consistent lubrication of internal components.
Thermal Management: Allows heat dissipation through metal mass and external fins (if present); breather prevents overpressure.
Corrosion Resistance: Coated or painted surface resists rust and environmental degradation.
Long Service Life: Built for durability under harsh conditions — suitable for mining, construction, long-haul freight, and off-road use.
Due to its role as a structural OEM-specific casting, this part has very limited direct aftermarket equivalents or universal replacements.
| Brand | Part Number |
|---|---|
| Shacman Original Equipment | HD90149320141 |
| Internal Variants | HD90149320141A, HD90149320141-XX (version suffix may differ) |
| Aftermarket Suppliers | Rarely available under generic names; often listed as “Shacman X3000 rear axle housing” |
| No Global Equivalents | Not interchangeable with Dana, Meritor, or ZF units due to proprietary design |
Search Tips: Use keywords like "HD90149320141 reducer housing", "Shacman F3000 axle casing", or "HOWO compatible rear end housing" when sourcing online.
Due to its critical safety and mechanical function, proper handling and installation are essential.
Professional Installation Required
→ Must be installed by experienced technicians familiar with heavy-duty axle systems. Improper assembly can lead to catastrophic failure.
Torque to Manufacturer Specification
→ All bolts (especially differential cover, input flange, and bracket mounts) must be tightened to specified torque values (e.g., 200–300 Nm for cover bolts). Use a crisscross tightening pattern.
Inspect Before Assembly
→ Check for cracks, warping, stripped threads, or damaged sealing surfaces. Never install a compromised housing.
Use Correct Gaskets & Sealants
→ Always replace old gaskets. Apply anaerobic sealant (e.g., Loctite 518) on mating surfaces if required by OEM guidelines.
Proper Lubrication
→ Fill with correct grade and amount of GL-5 or synthetic gear oil (e.g., 85W-140). Ensure oil level reaches inspection plug hole. → Confirm compatibility with differential type (e.g., limited-slip vs. open).
Check Breather Functionality
→ Ensure the breather vent is unobstructed to prevent pressure buildup that could force oil past seals.
Align Components Accurately
→ Misalignment between driveshaft, pinion, and differential can cause premature bearing or gear wear.
Regular Inspection Schedule
→ Inspect every 10,000–20,000 km for:
Oil leaks around cover or input shaft
Cracks near mounting points or weld zones
Corrosion or physical damage
Loose fasteners
Avoid Overloading
→ Exceeding GVWR places excessive stress on axle components — adhere to vehicle payload limits.
Replace Only With OEM-Matched Parts
→ The number HD90149320141 includes version-specific details (like gear ratio support, mounting bracket position, or brake type). Using incorrect versions may result in fitment issues or performance loss.
Safety Warning
→ Never operate a vehicle with a leaking, cracked, or improperly assembled axle housing — risk of sudden failure, wheel lockup, or fire exists.
Long-Haul Freight Transport
Mining & Quarry Operations
Construction Sites (Dump Trucks, Mixers)
Heavy Cargo & Oversized Load Hauling
Off-Road & Rough Terrain Applications
Extreme Climate Zones (desert heat, arctic cold)
Packaging: Wooden crate or heavy-duty carton with foam padding; protected against moisture and impact
Labeling: Includes part number, barcode, production date, warning labels
Warranty: Typically 12 months against manufacturing defects (excluding damage from misuse or improper installation)
Supply Chain: Available through Shacman dealerships, authorized distributors, and industrial spare parts suppliers
The Rear Axle Main Reducer Housing HD90149320141 is a mission-critical drivetrain component designed for durability, precision, and reliability in Shacman and Sinotruk heavy-duty trucks. As the foundation of the final drive system, it supports the differential, gears, and lubrication circuit, playing a vital role in safe and efficient power delivery to the wheels.
With applications across F2000, F3000, X3000, HOWO, and Steyr-based platforms, this housing must be replaced only with exact OE-match components to ensure structural integrity, gear alignment, and long-term performance.
