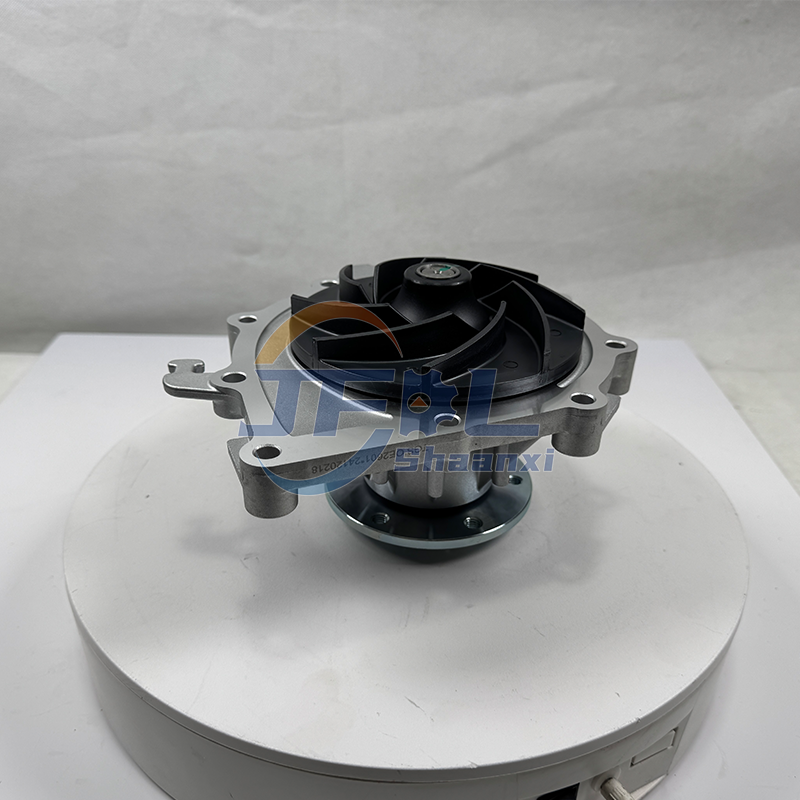

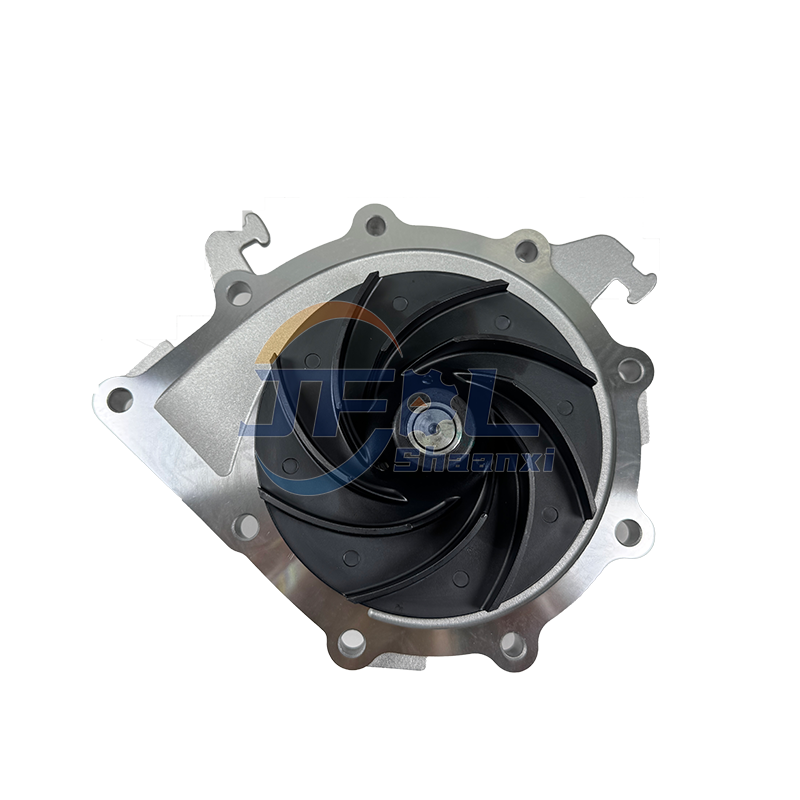

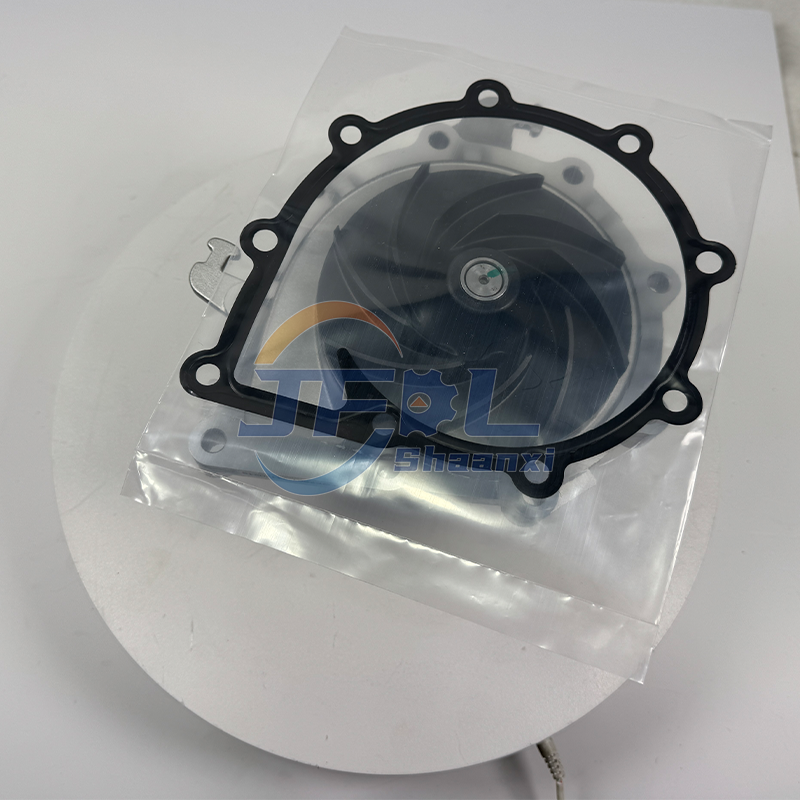

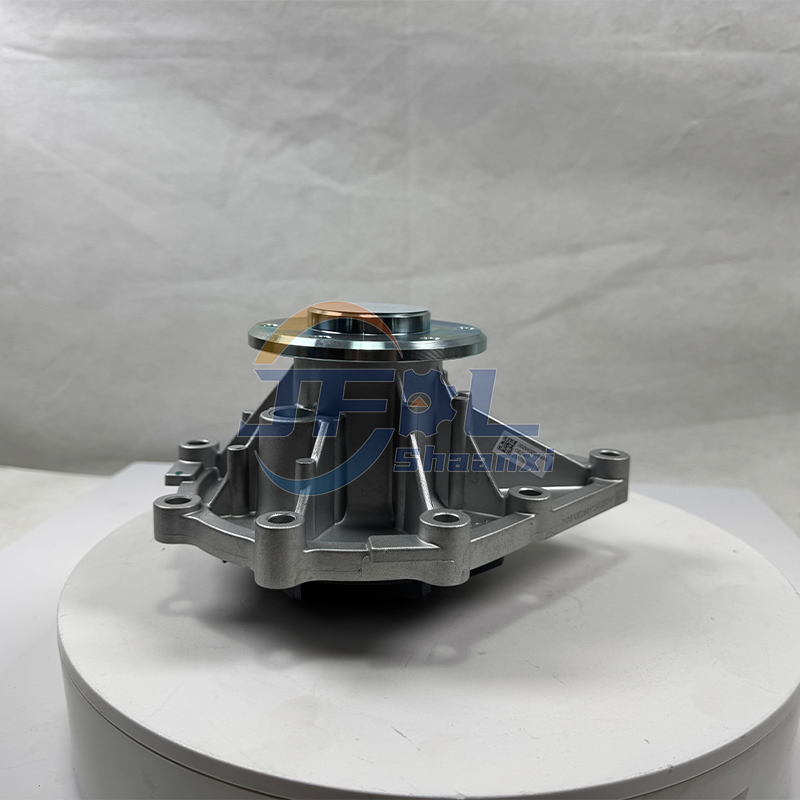

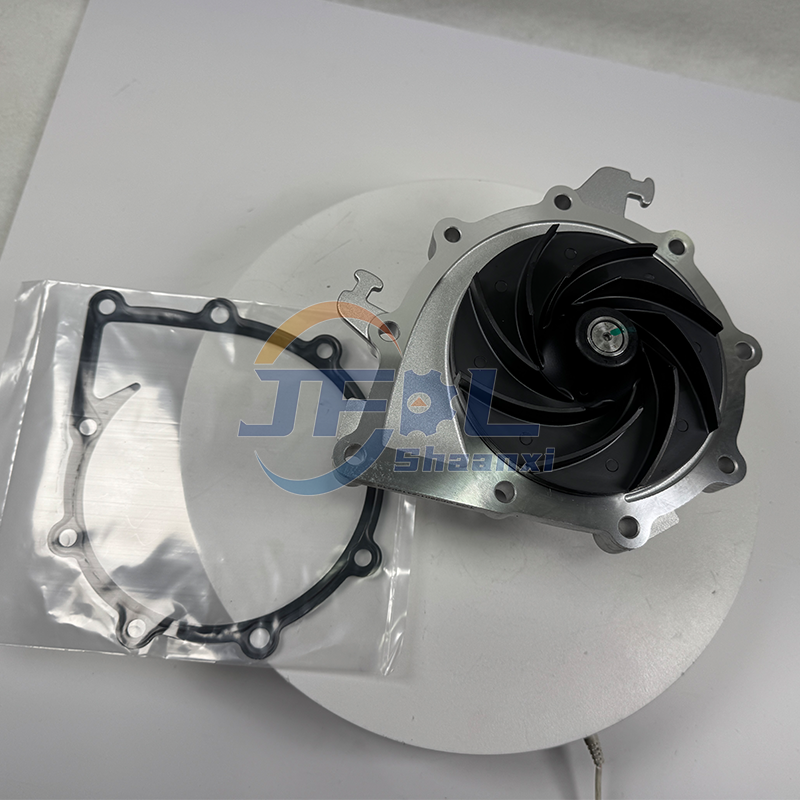

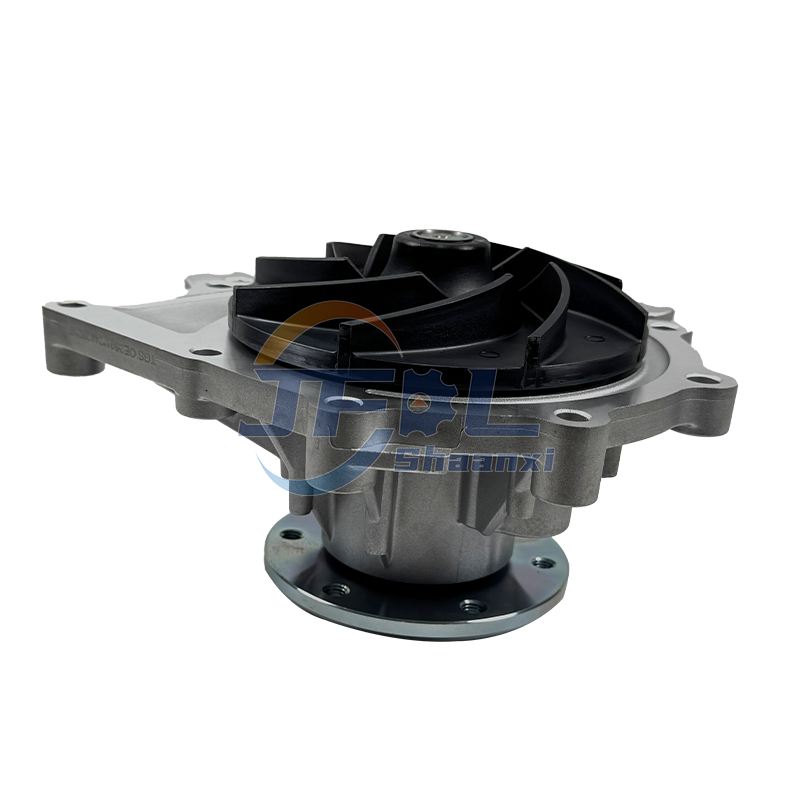

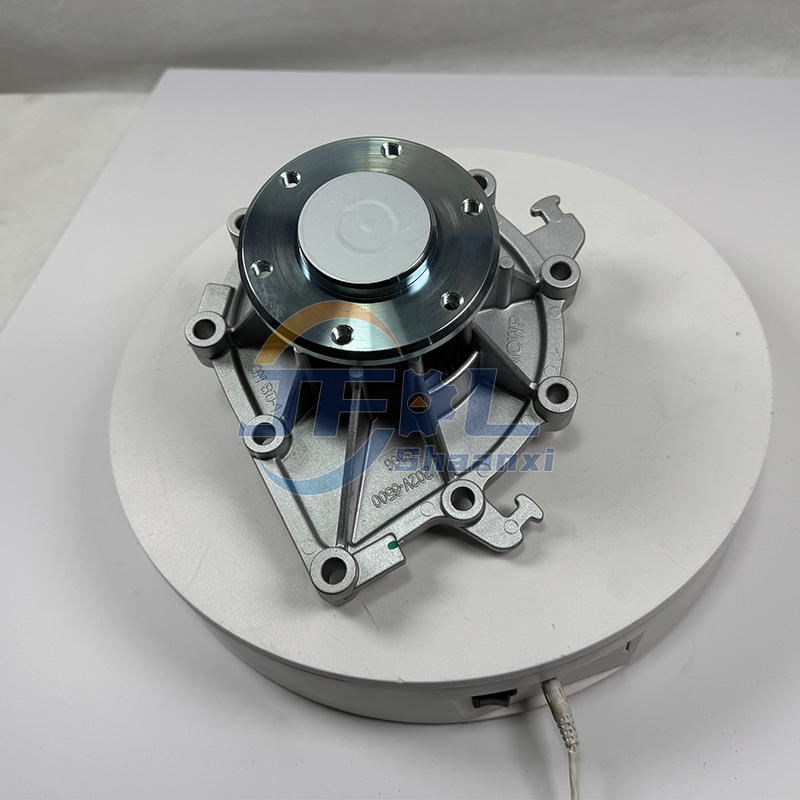

200V06500-6694
for Sinotruk HOWO
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

| Water Pump Specifications Table | |
| Category | Details |
| Product Name | Water Pump |
| Product Number | 200V06500-6694 |
| Compatible Engine Specifications | MAN MC11 series engines, compatible with MAN 11L and 13L Euro IV and Euro V engines, with a rated power range of 400-500 horsepower. |
| Structural Parameters | Utilizes a single-layer impeller design; inlet and outlet diameters match the original mounting dimensions of the MAN MC11 engine; mounting holes precisely match the engine block; overall weight approximately 5.5kg (refer to specifications of other parts in the same series); pump body dimensions fit the engine block mounting position, requiring no additional space. |
| Performance Parameters | Working medium is engine coolant (containing ethylene glycol); applicable medium temperature range -15℃ to 110℃; rated working pressure 6 bar; maximum head 5-6m; flow rate adapted to the cooling requirements from engine idle speed to rated speed, ensuring efficient heat dissipation. |
| Material Characteristics | The impeller is made of high-strength, wear-resistant cast iron; the pump body is integrally molded cast iron; and the seals are made of high-temperature resistant rubber, suitable for long-term operation under complex conditions in heavy-duty vehicles. |
| Transmission Parameters | Utilizes V-belt drive, compatible with type A V-belts. The pulley has a 3-groove design, with a pitch diameter consistent with the original pulley specifications of the MAN MC11 engine. Suitable for engine rated speeds of 900-1450 r/min, with a transmission efficiency ≥95%. |
| Installation Parameters | Equipped with 4 M12-10.9 grade mounting bolts; recommended tightening torque is 111 Nm ± 12 Nm (at a friction coefficient of 0.12); the sealing method is a mechanical seal with a sealing surface hardness ≥ HRC58 to prevent coolant leakage. |
| Inventory | 300 pieces |

![]() | ![]() | ![]() |

Performance Features
1. **Strong Heat Dissipation Stability:** The flow rate is precisely matched to engine speed, ensuring uniform heat dissipation in the cylinder block at idle. Under high-speed, heavy-load conditions, it quickly removes engine waste heat, preventing overheating and making it suitable for high-intensity scenarios such as long-distance logistics and engineering operations.
2. **Excellent Wear and Durability:** The cast iron pump body and impeller are resistant to coolant corrosion, and the sealing structure effectively prevents leakage. Performance degradation is slow and service life is long within the range of -15℃ low-temperature start-up to 110℃ high-temperature operation.
3. **Good Installation Compatibility:** Fully complies with MAN engine original factory installation standards, requiring no modification to mounting holes or piping. It can directly replace old original parts, making it suitable for original factory assembly and after-sales maintenance scenarios for Sinotruk and compatible brand vehicles.
Usage and Maintenance Precautions
1. Pre-installation Inspection: Before installation, verify that the water pump model matches the engine batch and emission stage. Check that the impeller rotates smoothly and that the seals are intact to avoid malfunctions caused by incompatible parts or damage during transportation.
2. Installation Specifications: Installation must be performed by a professional mechanic. During installation, ensure the pump body fits tightly against the cylinder block and tighten bolts to the specified torque. After connecting the cooling lines, bleed the air to prevent air blockage and ensure effective heat dissipation.
3. Medium Requirements: Only use engine coolant that meets original equipment manufacturer (OEM) standards. Do not add tap water or inferior coolant. Adjust the coolant ratio according to the season and change it regularly to prevent scale buildup and corrosion inside the pump body.
4. Operation and Maintenance: Regularly check the water pump belt tension and sealing. If coolant leakage, abnormal pump noise, or abnormal engine coolant temperature occurs, repair or replace the affected components immediately. Avoid prolonged engine overload operation to reduce water pump wear.
5- Safety Warning: When performing maintenance or replacement, disconnect the power supply and cool the engine first. Wait until the coolant temperature drops to room temperature before proceeding to prevent burns from hot coolant splashes. Do not disassemble the water pump yourself, as this will result in seal failure and void the warranty.
