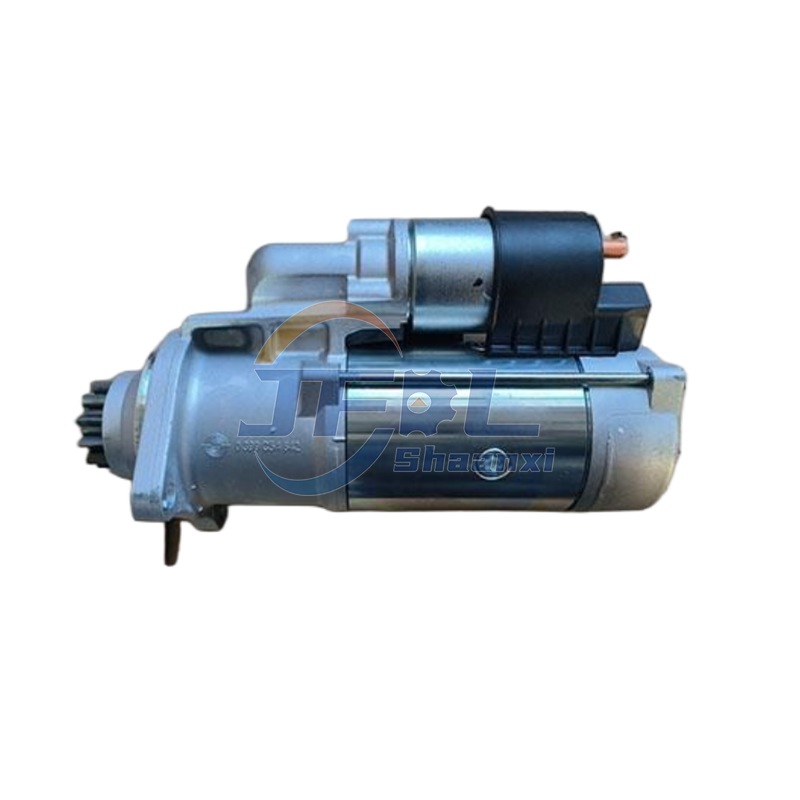

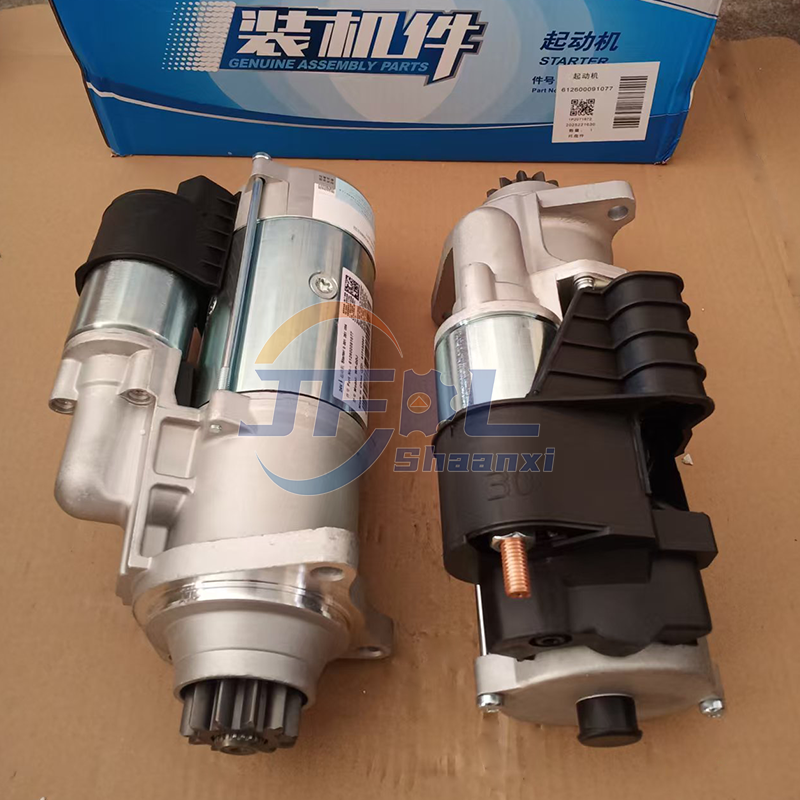

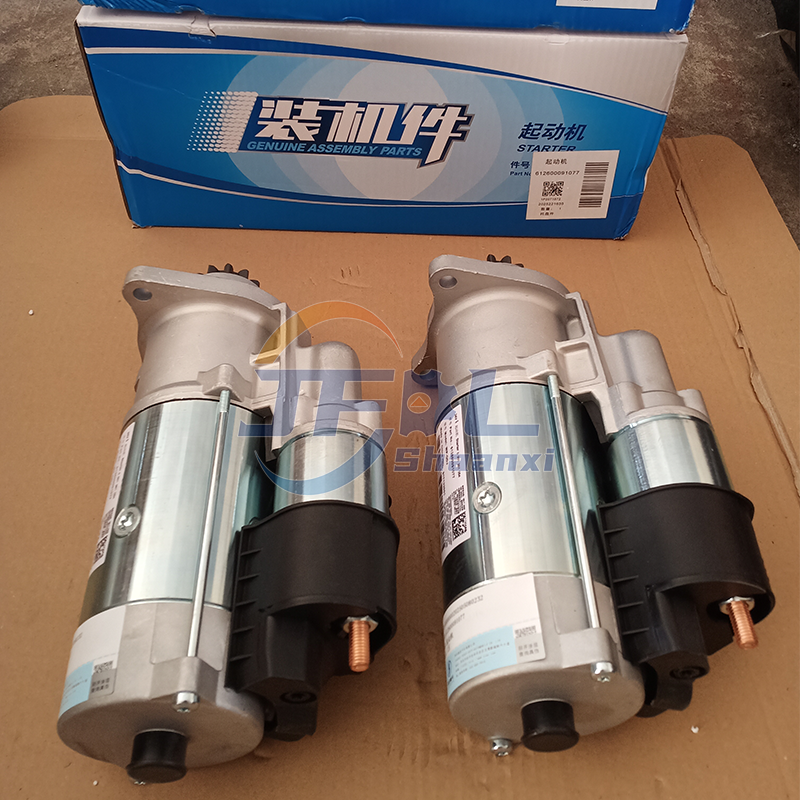

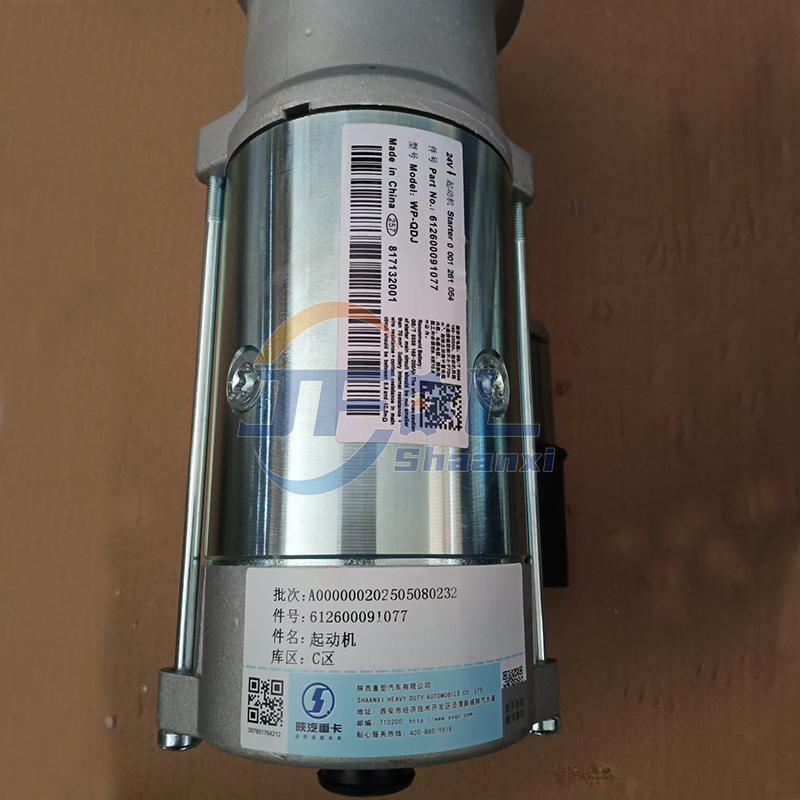

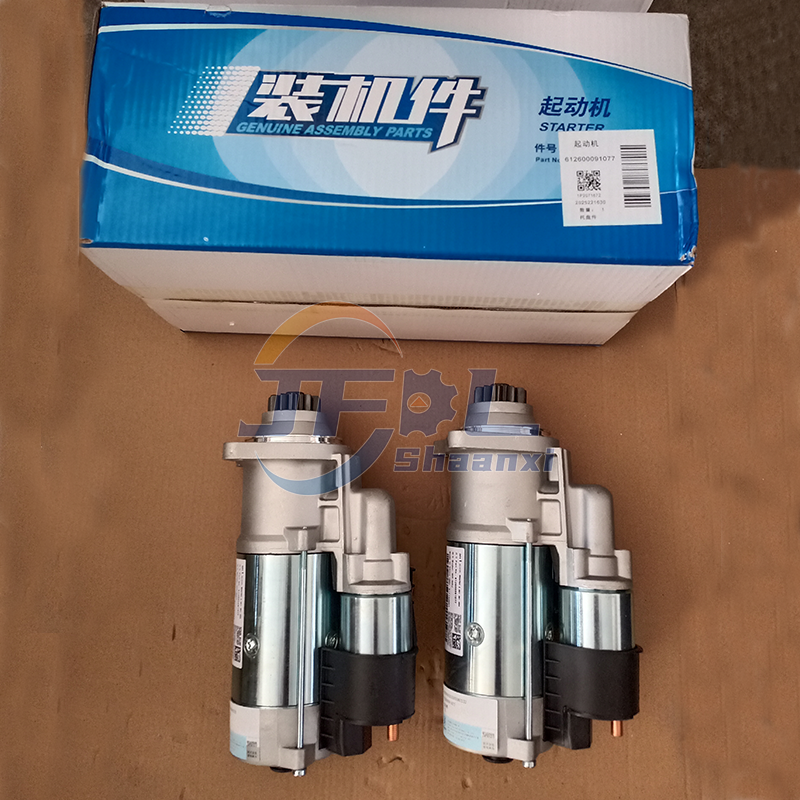

Starter Assembly 612600091077 for Weichai WD615/WP10/WP12 Engines
| Item name: | Starter Assembly | Application: | Truck body Systems |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
|  |  |
Exclusive for Shacman Delong F3000, SINOTRUK HOWO series heavy trucks (6×4/8×4 dumpers, long-haul logistics, LNG tractors); fits Weichai WD615/WP10/WP12 engines, matches 24V electrical system and flywheel housing mounting position.
Powerful starting: 24V DC series motor, rated power 7.5kW, max torque ≥320N·m, reliable starting at -40℃, suitable for heavy - duty starting conditions.
Transmission protection: Planetary gear reduction + roller one - way clutch, automatic disengagement after engine starting, preventing motor overspeed.
Durable: High - quality copper windings, brush and commutator with good contact, service life ≥15000 starts, suitable for high - frequency starting.
Vibration & weather resistance: Cast iron shell, temperature resistance -40℃~120℃, withstanding engine vibration, suitable for complex working conditions.
Easy maintenance: Modular design, easy replacement of electromagnetic switch and one - way clutch, low maintenance cost.
| Parts No. | Accessory Name | Compatibility Notes |
| 612600090561 | Starter Relay | Controls circuit on - off, must - install for starting system |
| 612600090293 | Starter One - way Clutch | Transmits torque and prevents engine back - dragging, core part of transmission mechanism |
| 612600091078 | Starter Brush Assembly | Supplies current to motor, regular replacement part |
