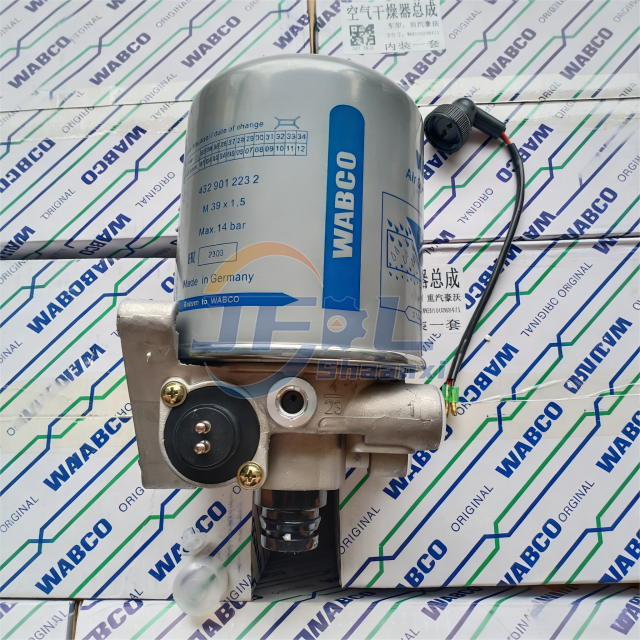

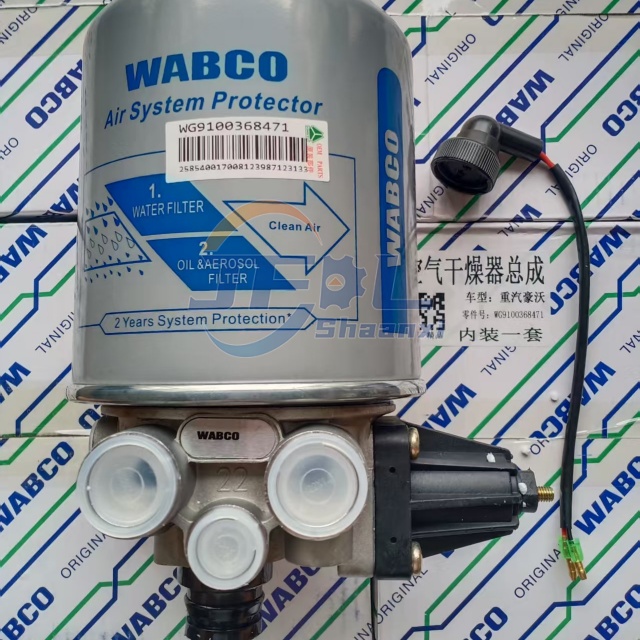

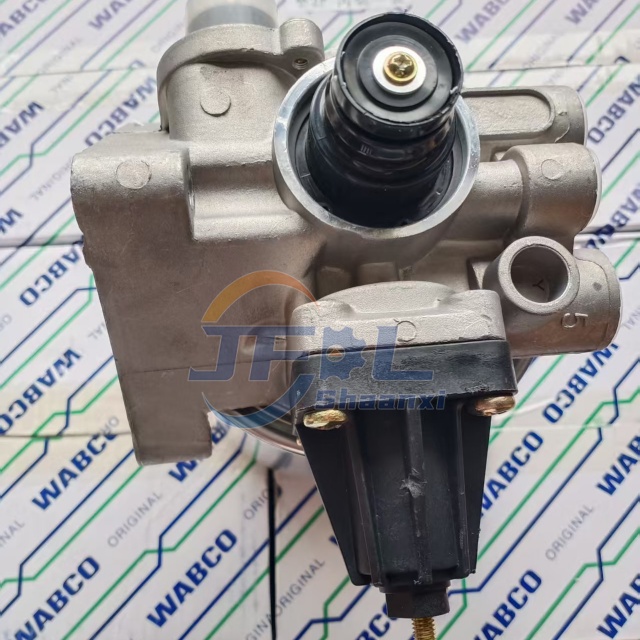

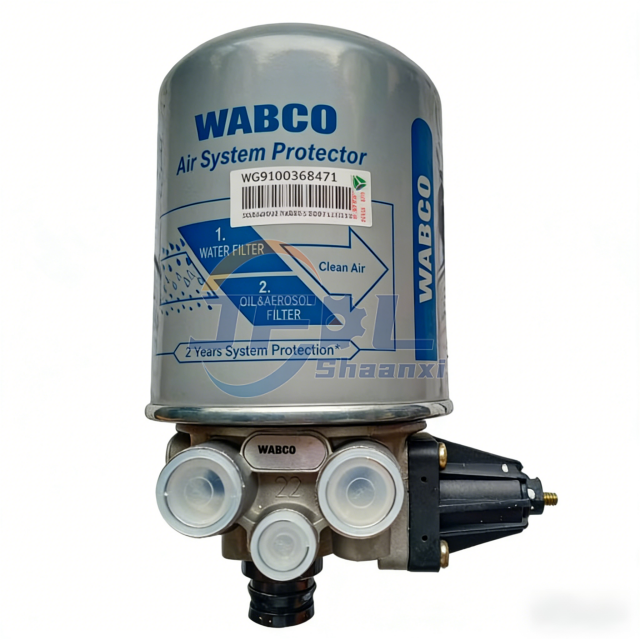

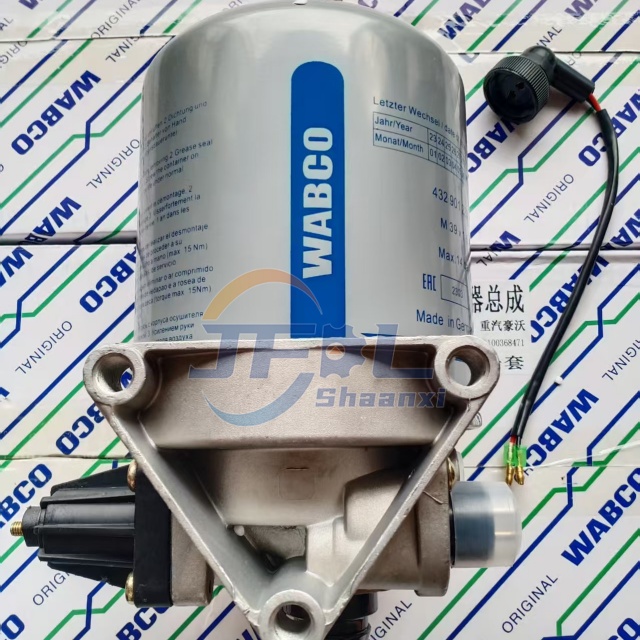

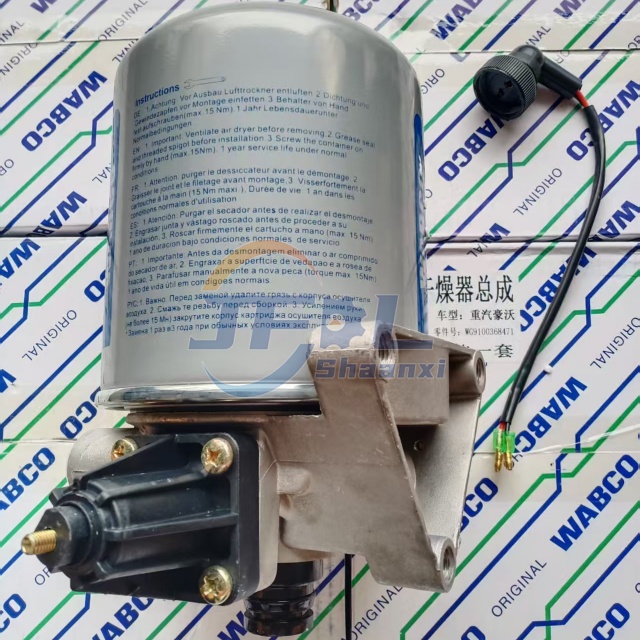

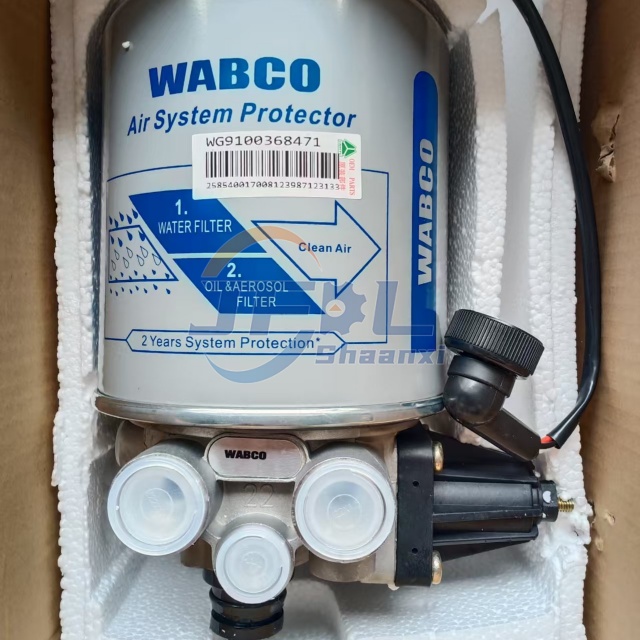

Sinotruk Howo air dryer assembly WG9100368471
| Item name: | air dryer assembly | Application: | Truck engine Systems |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
 |  |  |
Core fit ：HOWO A7/T7H/T5G/HOWO-7/TX/TX7
Compatible fit ：HOWO 371/336 (with MC11/MC13, WD615/WP10/WP12 engines)
Working pressure ：0-10bar, Cut-off pressure ：8.5±0.2bar
Voltage ：24V, Built-in 100W heater （anti-ice block ）
Operating temp ：-40℃~+65℃, Drying efficiency ：≤3g/m³
Service life ：300,000km; Desiccant replace cycle ：100,000km/2years
Safety ：Built-in safety valve ，anti-overpressure
| Part Number | Accessory Name | Core Function | Compatibility |
|---|---|---|---|
| WG9100368472 | Desiccant Cartridge | Core consumable of the air dryer, responsible for absorbing moisture | Special - matched with WG9100368471 assembly, regular replacement is recommended |
| WG9100368473 | Air Dryer Seal Kit | Seal each interface to prevent air leakage | Must be replaced synchronously when installing/replacing the desiccant cartridge, compatible with original factory interfaces |
| WG9100368474 | Regeneration Air Reservoir | Store air for regeneration and support automatic regeneration of the air dryer | Used with the assembly to ensure the normal operation of the regeneration function |
| WG9100368475 | Air Dryer Muffler | Reduce exhaust noise and filter exhaust impurities | Installed at the exhaust port, compatible with original factory exhaust standards |
| WG9100368476 | Pressure Sensor | Monitor air circuit pressure in real time and feed back to ECU | Integrated into the assembly, need to be replaced with the assembly or separately when faulty |
| WG9100368477 | Heater Assembly | Prevent air circuit from icing in low - temperature environment and ensure the air dryer works normally | Adapted to 24V system, precisely matched with the electrical interface of the assembly |
