VG1560090001 VG1560090007
Sinotruk HOWO
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

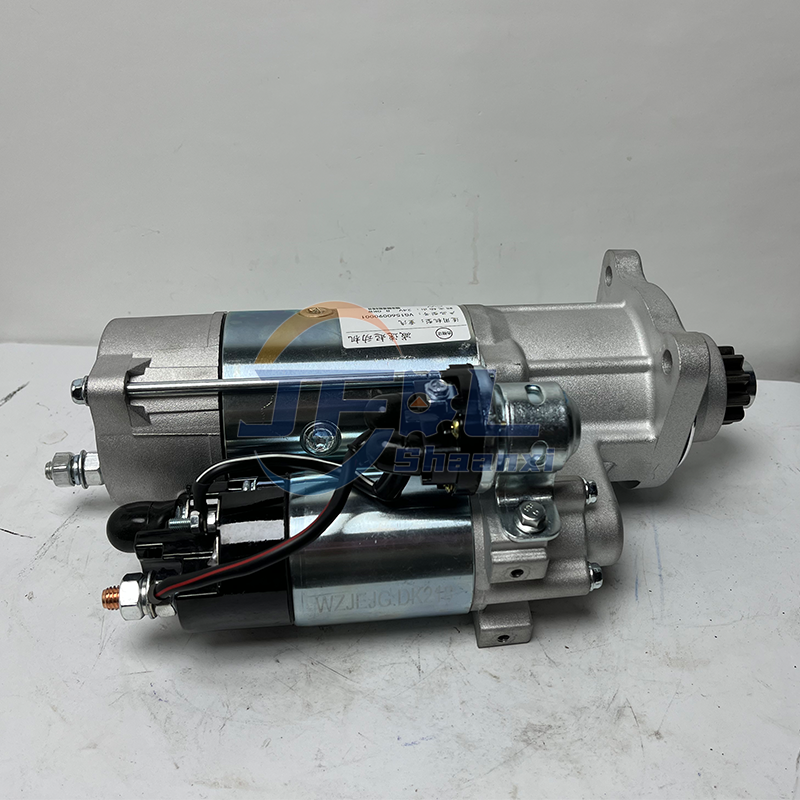

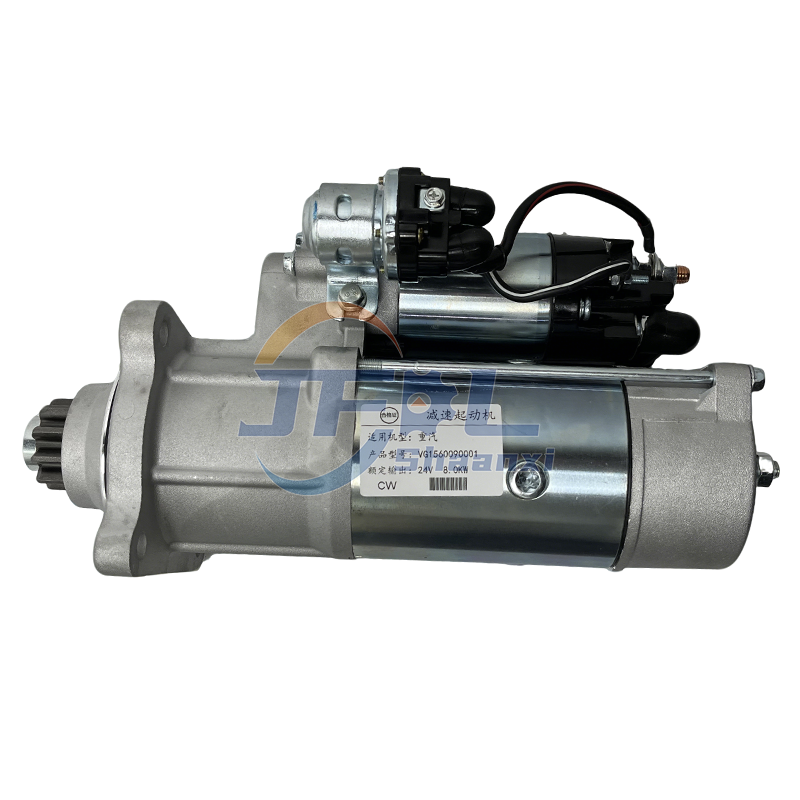

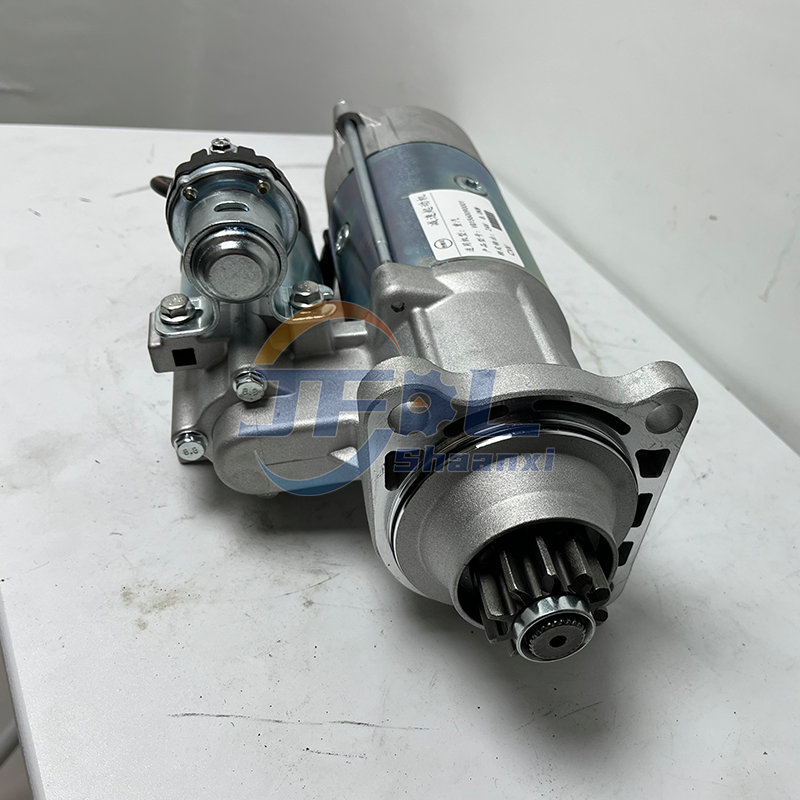

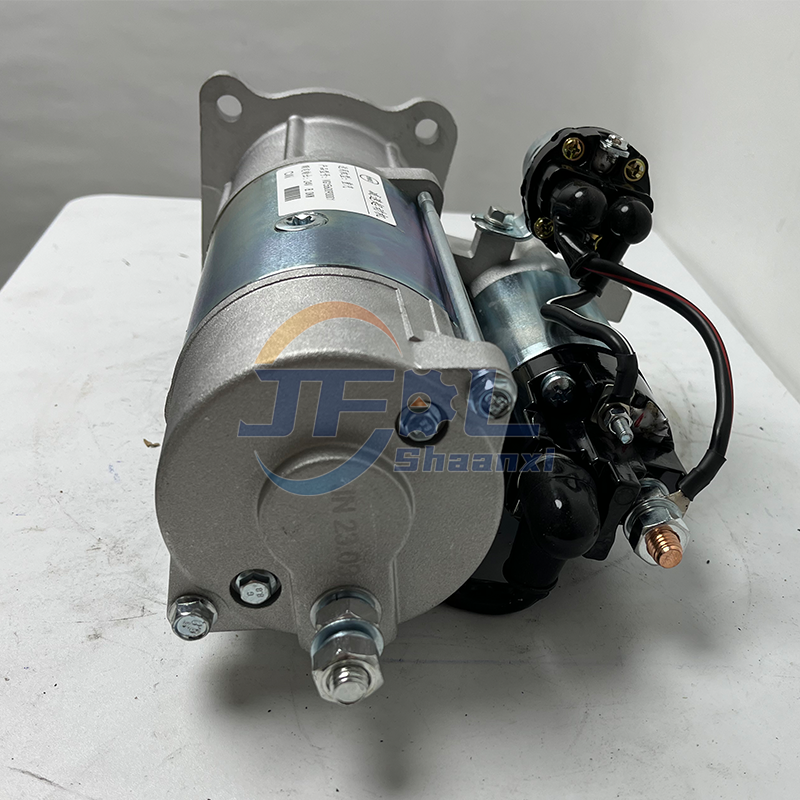

Sinotruk Howo Truck Spare Parts VG1560090001 VG1560090007 Starter Motor
| Parameter | VG1560090001 | VG1560090007 |
| Voltage | 24V | 24V |
| Rated Power Output | 7.5 kW (typical) | 7.5 kW (typical), range: 5–10 kW |
| Pinion Gear Teeth | 10 teeth | 11 teeth |
| Rated Speed | 1800 rpm | 150–300 rpm (cranking speed) |
| Starting Torque | 20–40 Nm (reference) | 35–70 Nm (higher torque output) |
| Current Draw | ~500 A (under load) | 400–800 A (depending on load) |
| Drive Type | Solenoid-operated Bendix drive | Standard OEM solenoid mechanism |
| Design Style | Bosch/Denso-style design | OEM standard design |
| Mounting Type | Flange mount, standard pattern | Compatible with same housing |
| Rotation Direction | Clockwise (as viewed from drive end) | Same |
| Duty Cycle | Intermittent (short bursts only) |
![]() | ![]() | ![]() |
Suitable for Major Truck Models:Sinotruk (SINOTRUK):
HOWO
HOWO A7
T7H
Steyr (licensed models)
Haojun (Haohan)
Other Chinese Heavy-Duty Brands:
Shacman (Shaanxi Auto) F2000 / F3000
Foton Auman
FAW J5, J6 (Jiefang)
Weichai (Weichai Power):
WD615 series
WD10
WD12
WP10
WP12
WP13 (in some configurations)
These engines are commonly used in construction, mining, long-haul freight, and heavy transport applications requiring high-compression diesel ignition.
| Part Number | Known Cross References |
|---|---|
| VG1560090007 | - Mitsubishi: M009T64771, M9T64771 |
| VG1560090001 | - Often listed as direct replacement for VG1560090007 where 10-tooth flywheel is used
| - Interchangeable in many WD615-based systems with proper gear alignment |
Always verify tooth count and spline compatibility before replacement.

High-torque output ensures reliable engine cranking
Durable solenoid and gear mechanism for long service life
Robust housing protects against vibration, dust, and moisture
Efficient energy conversion from battery to mechanical rotation
Designed for easy maintenance and field replacement
These starter motors are engineered for use in:
Harsh Conditions: Construction sites, mines, quarries, cold climates
High-Compression Diesel Engines: Require strong cranking power due to high cylinder pressure
Cold Weather Starting: Designed to deliver reliable starts even at sub-zero temperatures when paired with healthy batteries
Frequent Starts: Suitable for dump trucks, mixers, and delivery vehicles that require multiple daily engine cycles
| Task | Frequency / Condition |
|---|---|
| Check Terminal Tightness | Every 5,000 km or during routine servicing |
| Inspect for Corrosion | Regularly check battery cables and grounding points |
| Listen for Noises | Grinding, clicking, or whining may indicate gear/solenoid issues |
| Test Engagement | Verify smooth meshing of pinion with flywheel |
| Clean Housing | Remove dirt, grease, and debris to prevent overheating |
⚠️ Stop Use Immediately If:
Smoke or burning smell occurs during starting
Starter does not disengage after engine start (freewheeling issue)
Persistent failure to crank despite good battery
Condition: Brand new, factory sealed
Certifications: ISO9001, TS16949 (varies by supplier)
Warranty: Typically 6–12 months (supplier-dependent)
Shipping: Export-standard packaging with rust protection and shock absorption
Original Equipment Manufacturer (OEM):
Sinotruk (China National Heavy Duty Truck Group Co., Ltd.)
Aftermarket Producers:
Multiple certified suppliers in Jinan, Weifang, and Yuchai ecosystems
Some units may be co-developed with Bosch or Denso technology platforms
| Feature | Recommendation |
|---|---|
| Interchangeability | Possible only if flywheel tooth count matches (10T ↔ 10T, 11T ↔ 11T) |
| Selection Criteria | Match pinion tooth count and engine model precisely |
| Best For | Heavy-duty diesel trucks operating in tough environments |
| Critical Note | Never interchange without verifying gear compatibility |
