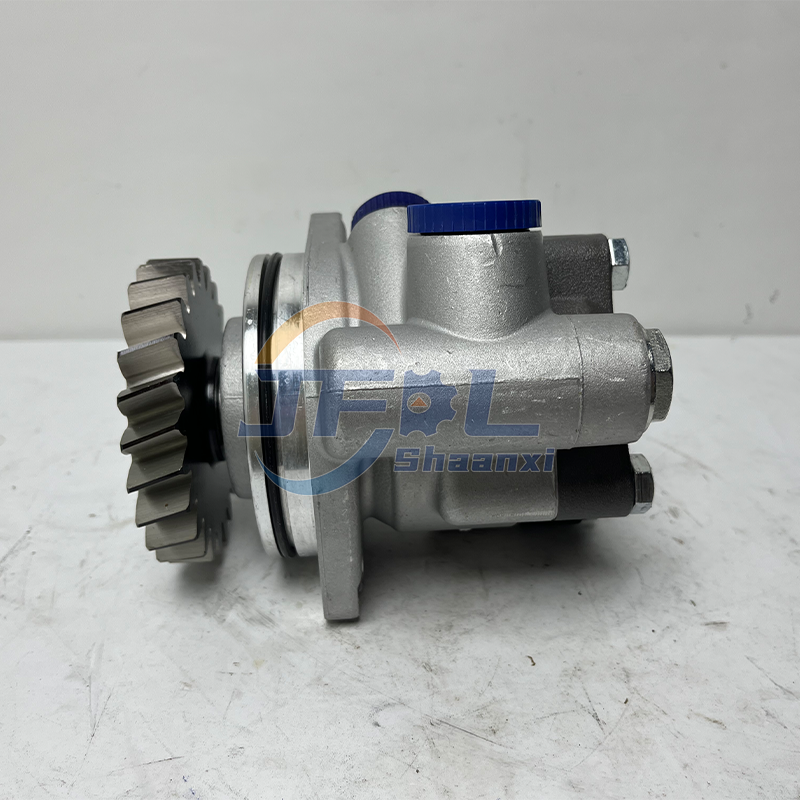

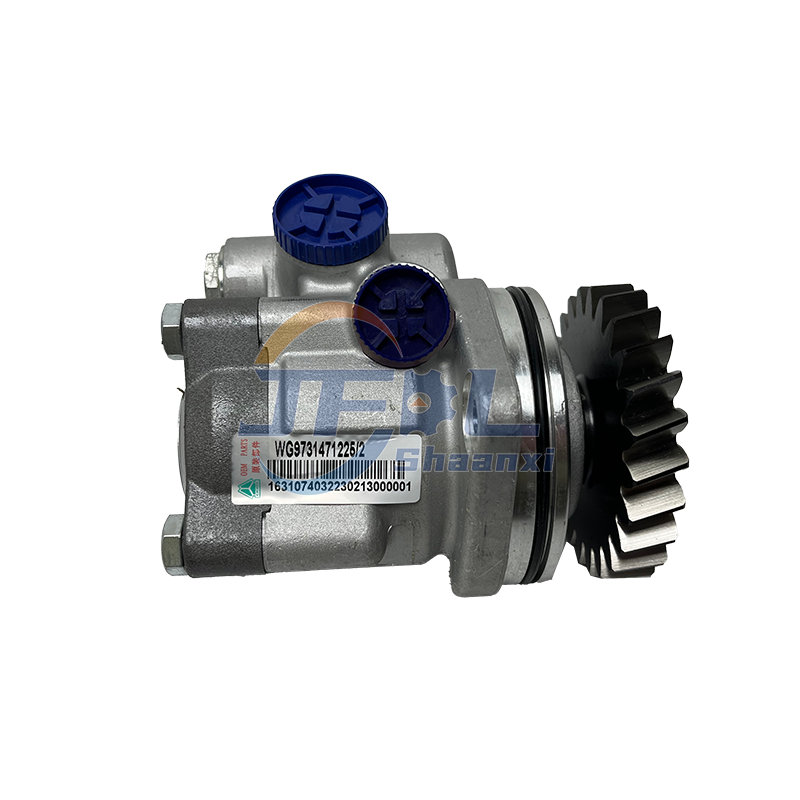

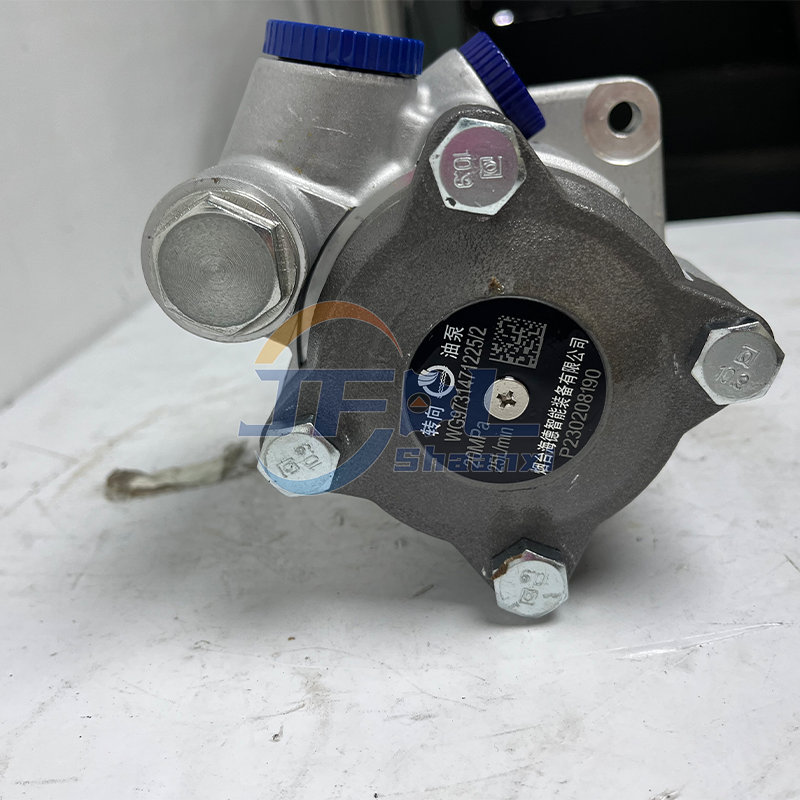

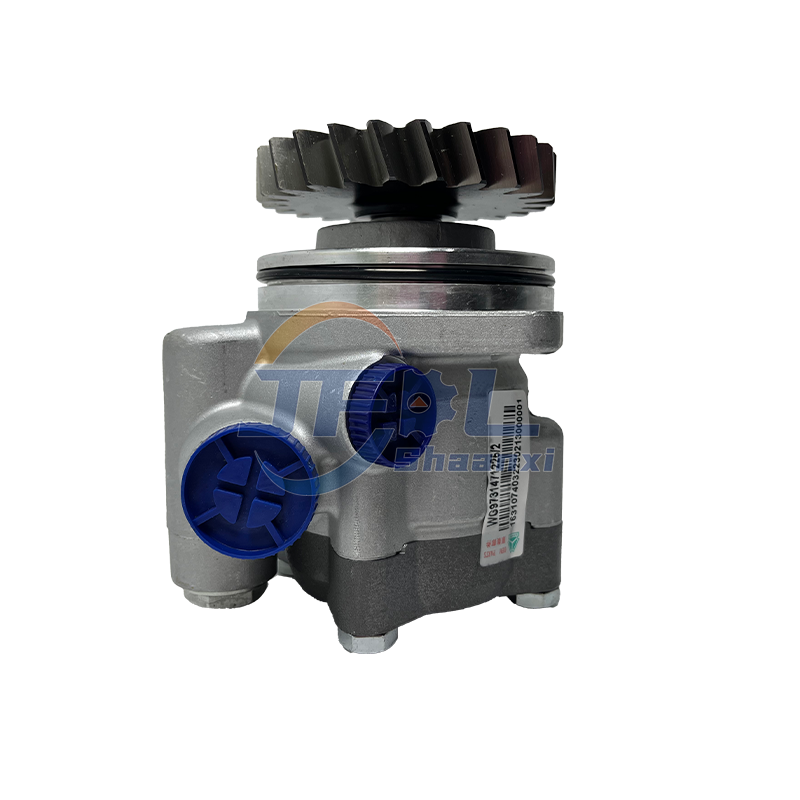

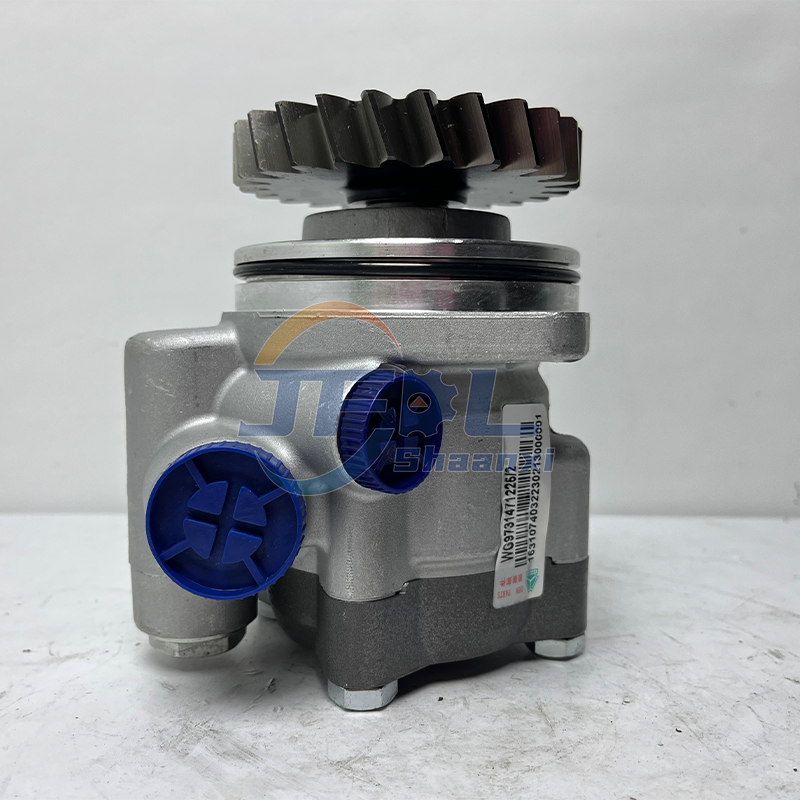

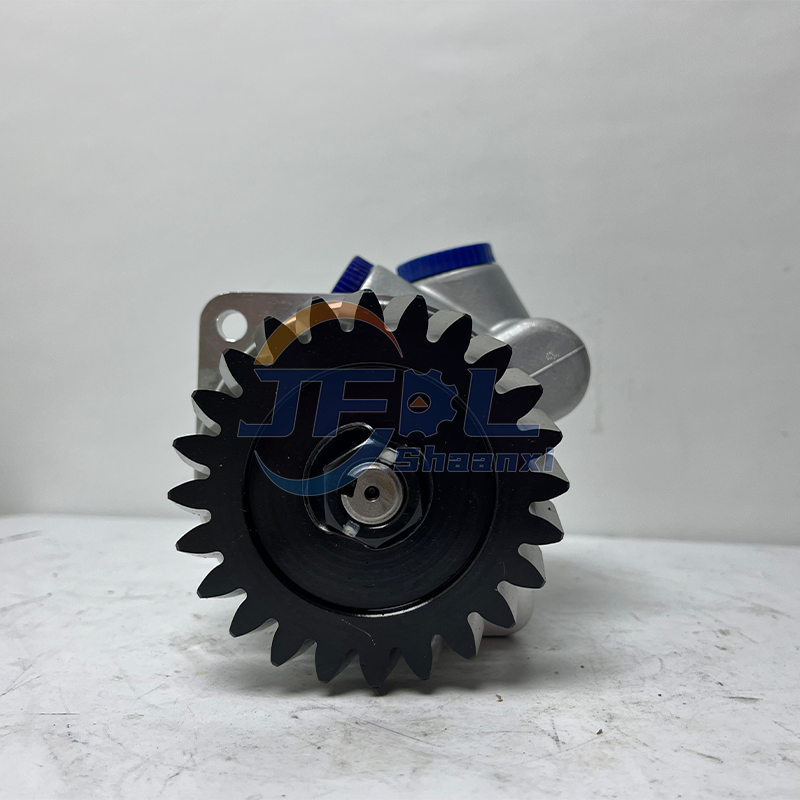

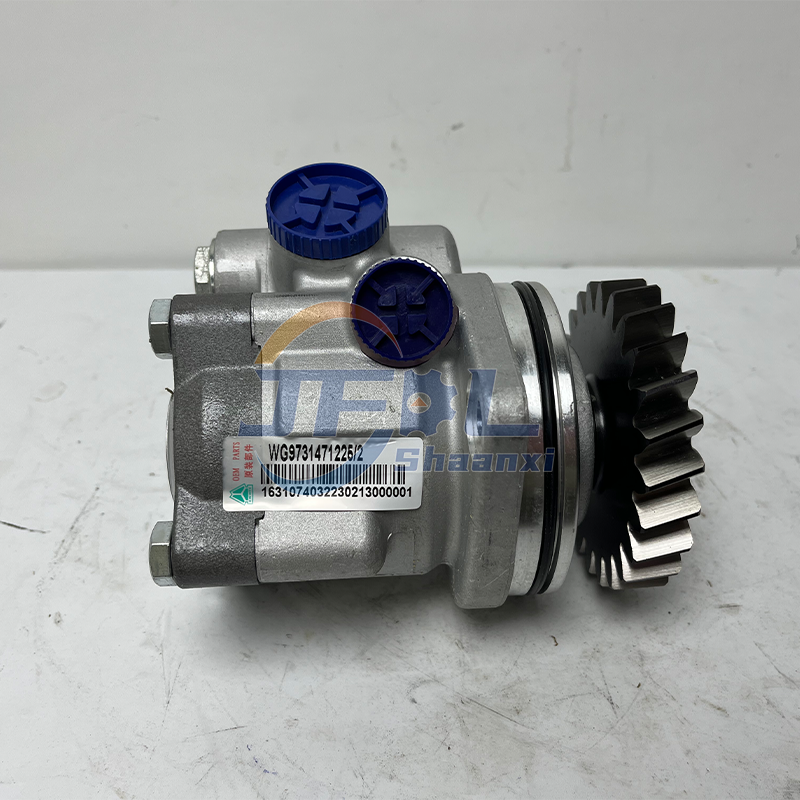

| Information Sheet for WG9731471225 Diverter Vane Pump | |
| Item | Details |
| Part Number | WG9731471225 |
| Weight | Approximately 10.0 kg gross weight per unit. |
| Operating Pressure | Industrial standard typically around 100-130 bar. |
| Internal Structure | Pump type is a vane pump. |
| Body Material | High-strength cast iron or die-cast aluminum alloy housing, providing excellent heat dissipation and corrosion resistance. |
| Internal Components | High-precision machined rotor, stator, vanes, cam rings, etc., ensuring high efficiency and low noise operation. |
| Seals | High-temperature resistant and oil-resistant NBR or FKM fluororubber oil seals ensure leak-free long-term operation. |
| Operating Performance - Maximum Flow Rate | Approx. 15 L/min to 18 L/min (liters per minute, depending on engine speed and pump design flow control value) |
| Operating Performance - Controlled Flow Rate | Approx. 17 L/min (limited by built-in flow control valve) |
| Operating Conditions - Rated Speed Range | 500 rpm to 4000 rpm (suitable for engine idle to high-speed operation) |
| Operating Conditions - Operating Temperature Range | -20°C to +100°C (depending on hydraulic oil performance) |
 | |
 | |  |
Performance Characteristics
1. Power Assist: It is the power source for the hydraulic steering system, generating high-pressure hydraulic fluid through engine drive, reducing the physical burden on the driver when turning the steering wheel.
2. Handling Stability: Ensures the vehicle maintains agile handling at low speeds or when turning on the spot, and provides necessary steering feedback at high speeds.
Usage and Maintenance Precautions
Usage and Maintenance Precautions
1. Fluid Management: Only use the specified type of hydraulic power steering fluid. Mixing different brands is strictly prohibited. Regularly check the fluid level to prevent damage to the pump body due to dry running from insufficient fluid.
2. System Bleeding: After replacing the pump, the system must be bled according to the procedure (usually by turning the steering wheel fully to the left and right several times). Otherwise, air will cause heavy steering or abnormal noises.
3. Cleanliness: Ensure the oil pipe joints are extremely clean during installation. Even tiny impurities entering the pump body can cause the impellers to seize or the oil seal to leak.
4. Seal Inspection: Regularly check the pump body and pipe connections to prevent air leaks that could lead to power steering failure.
