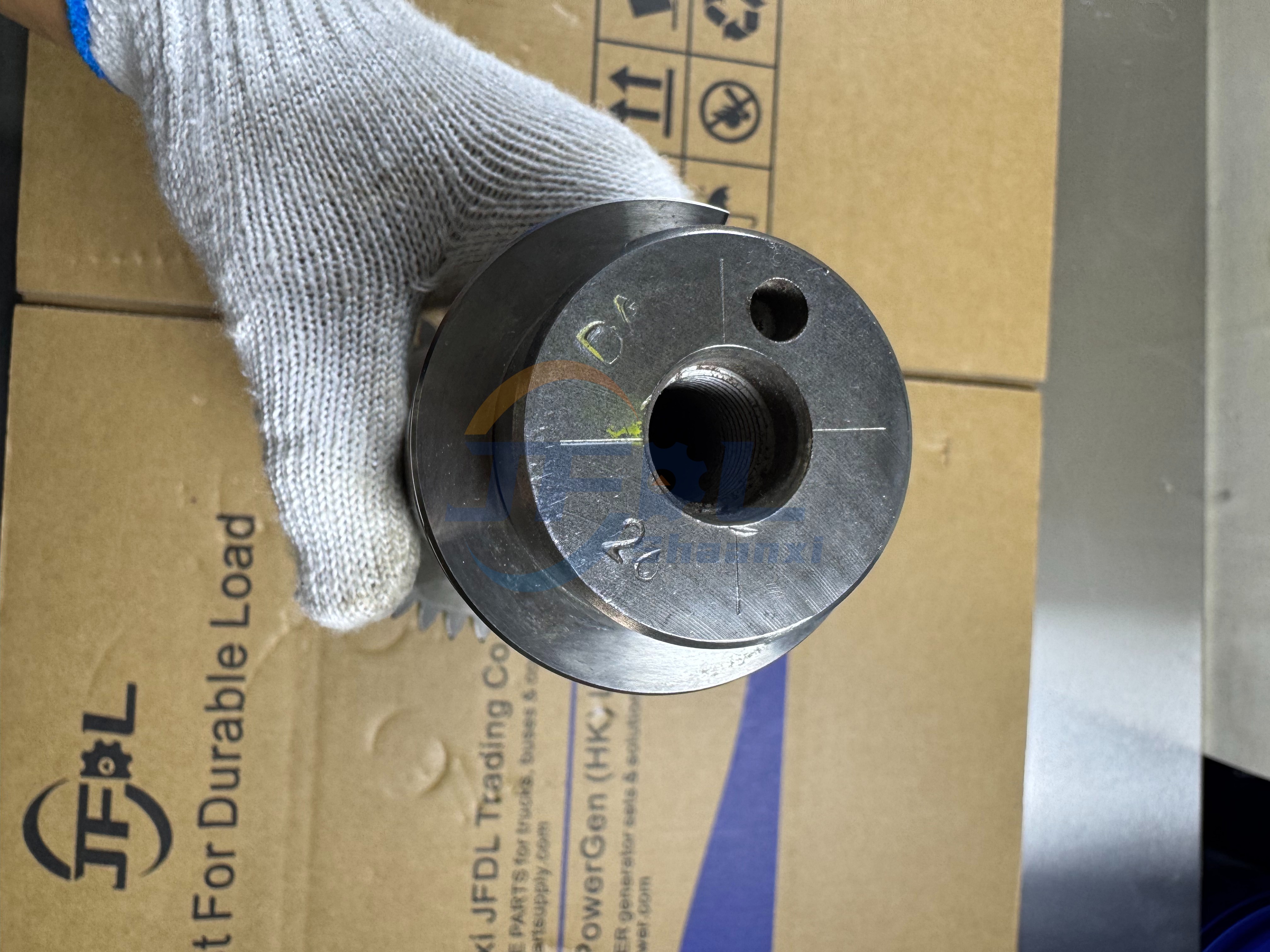

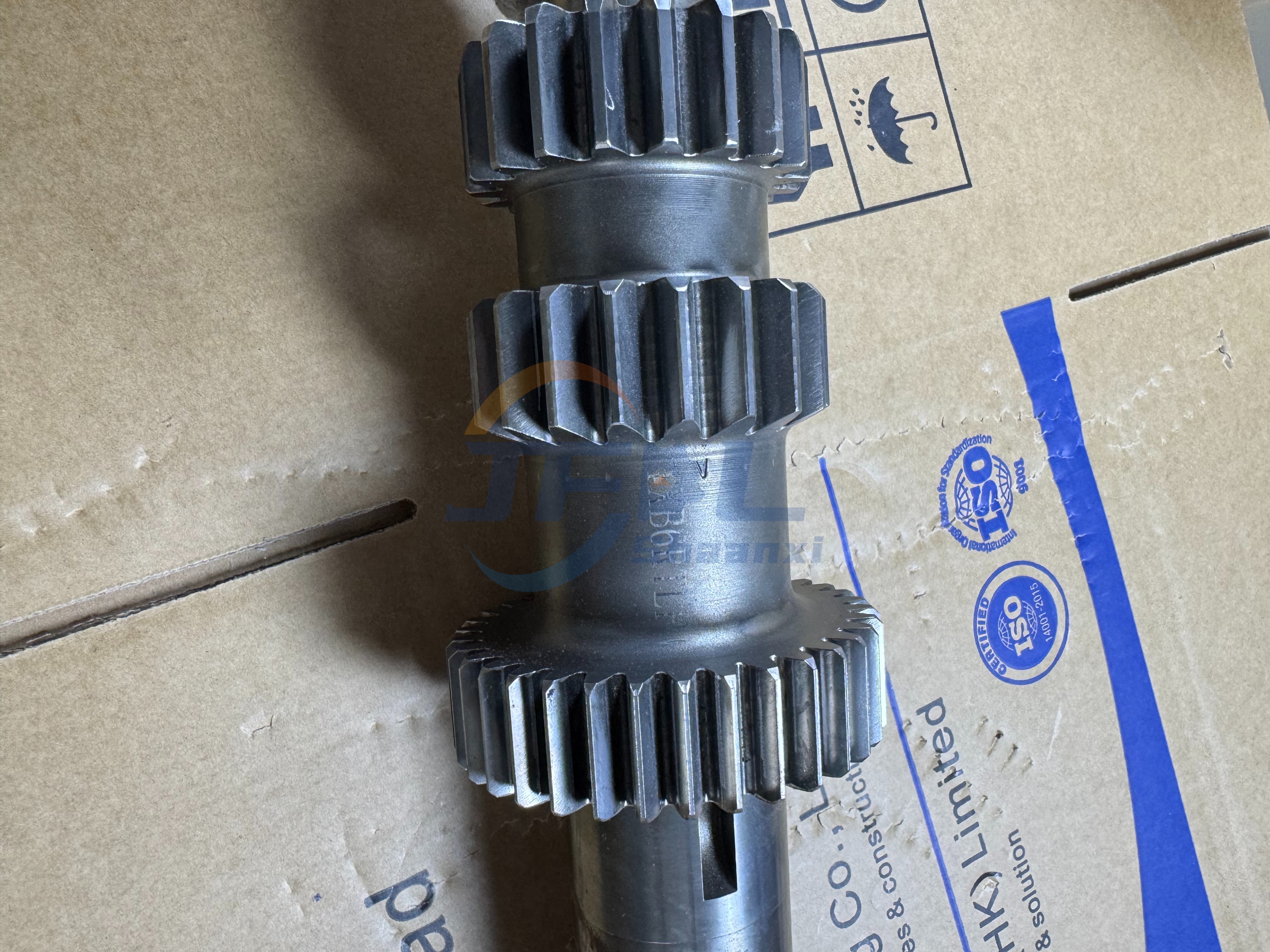

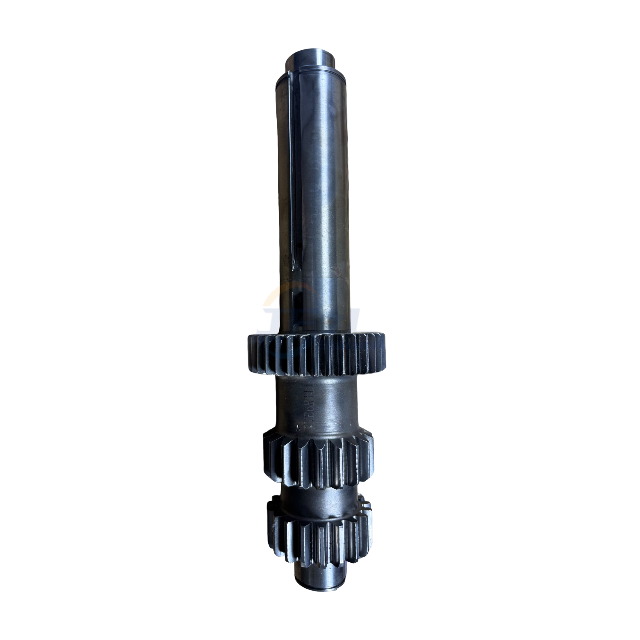

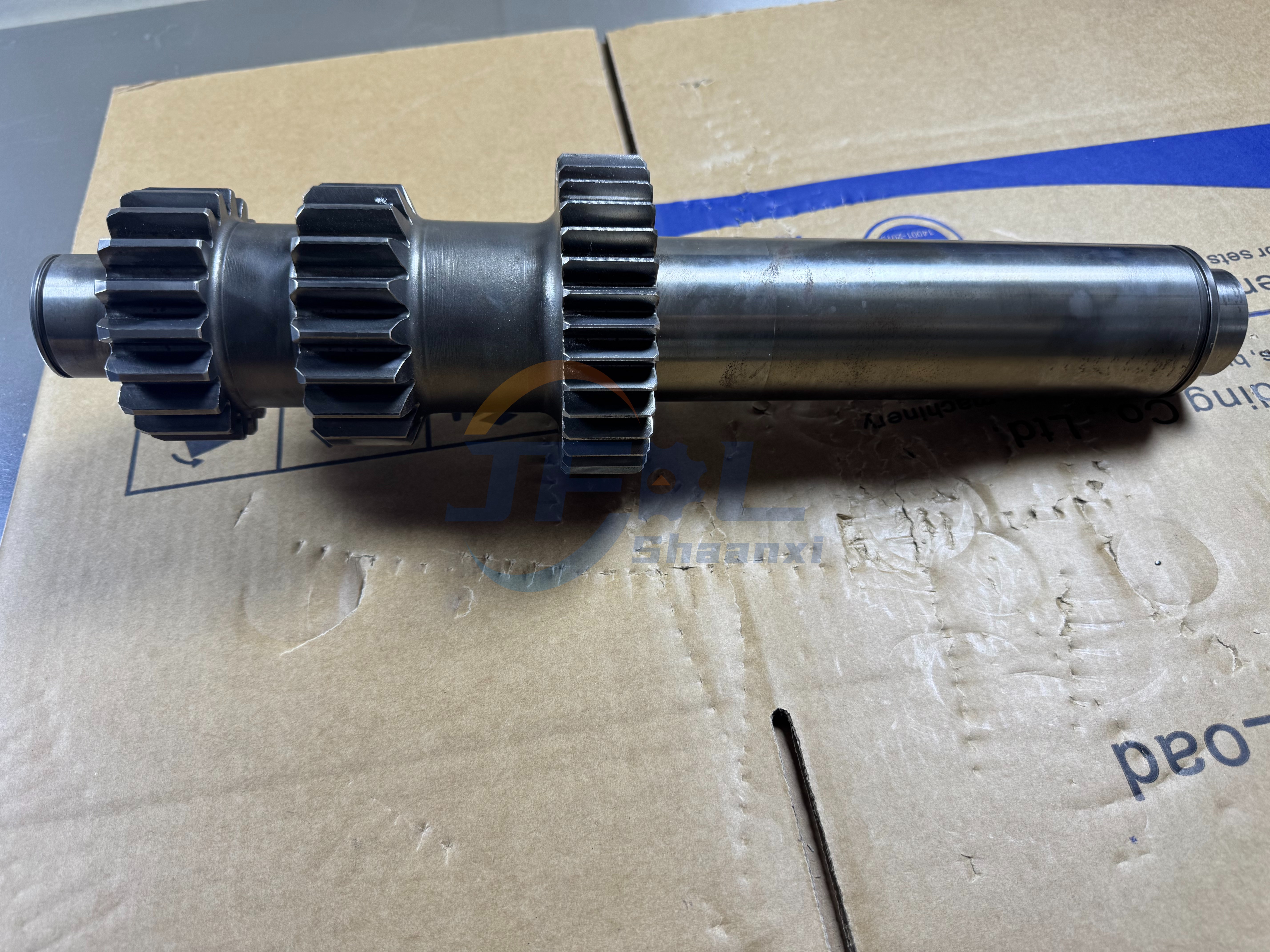

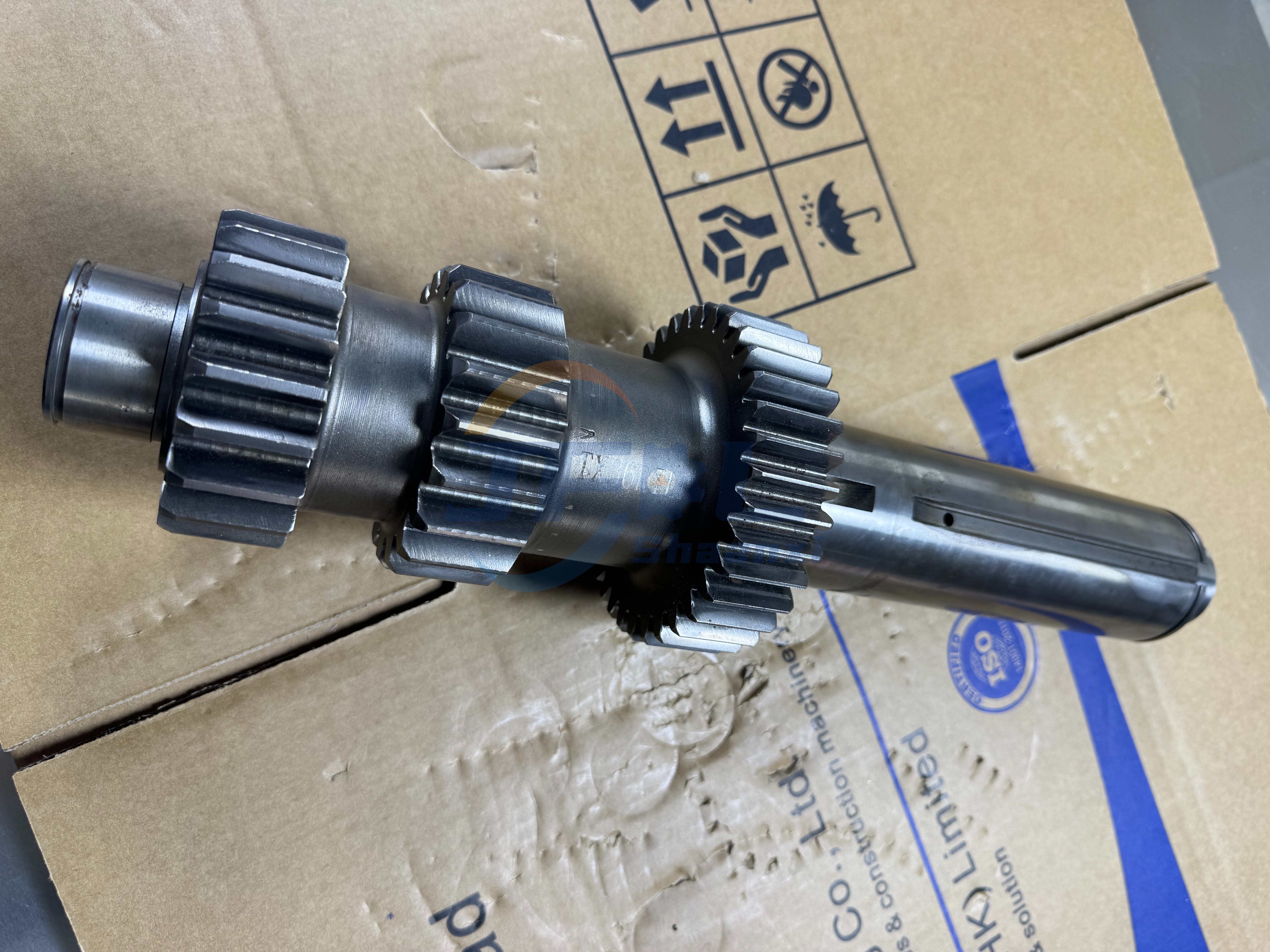

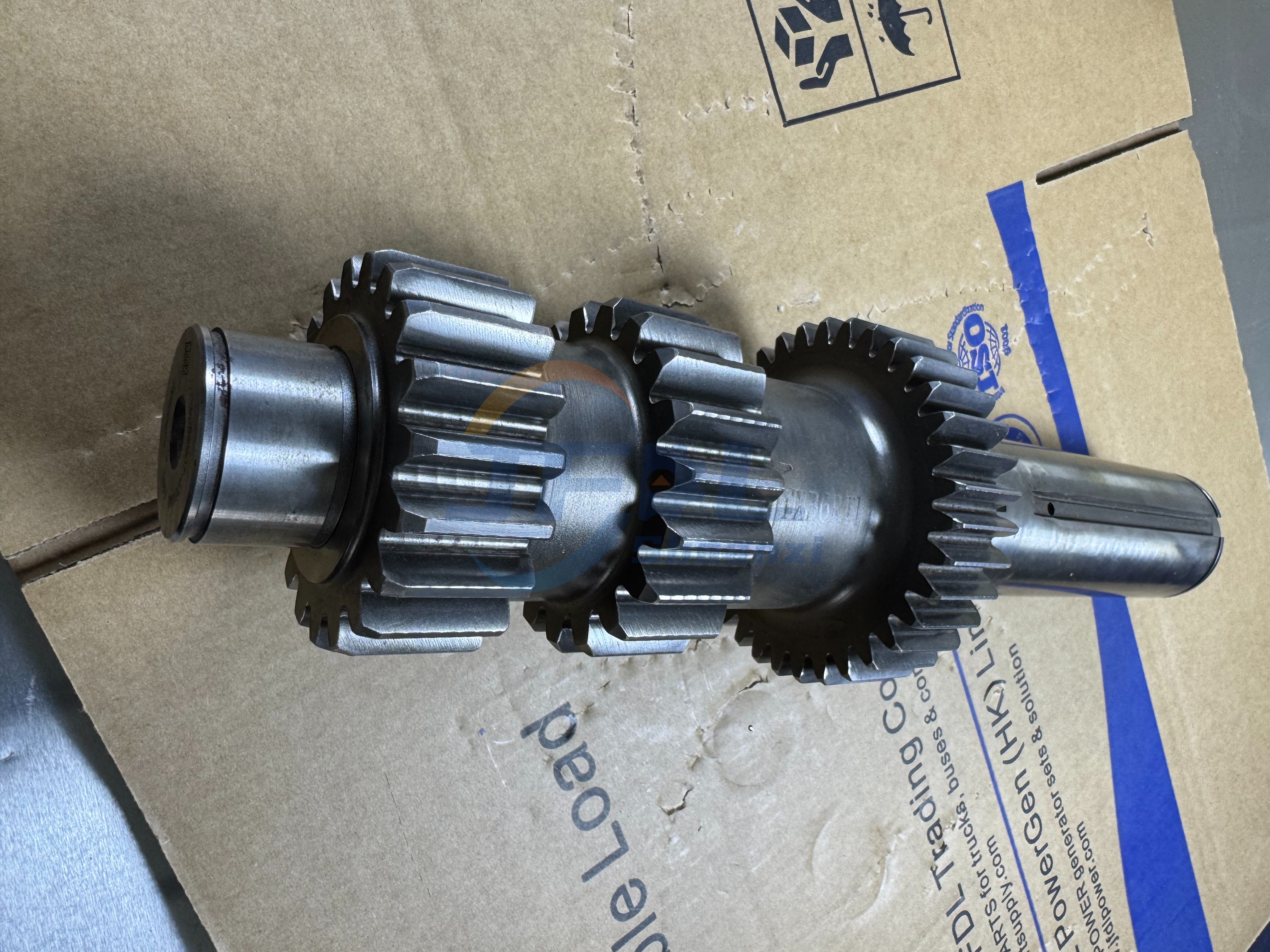

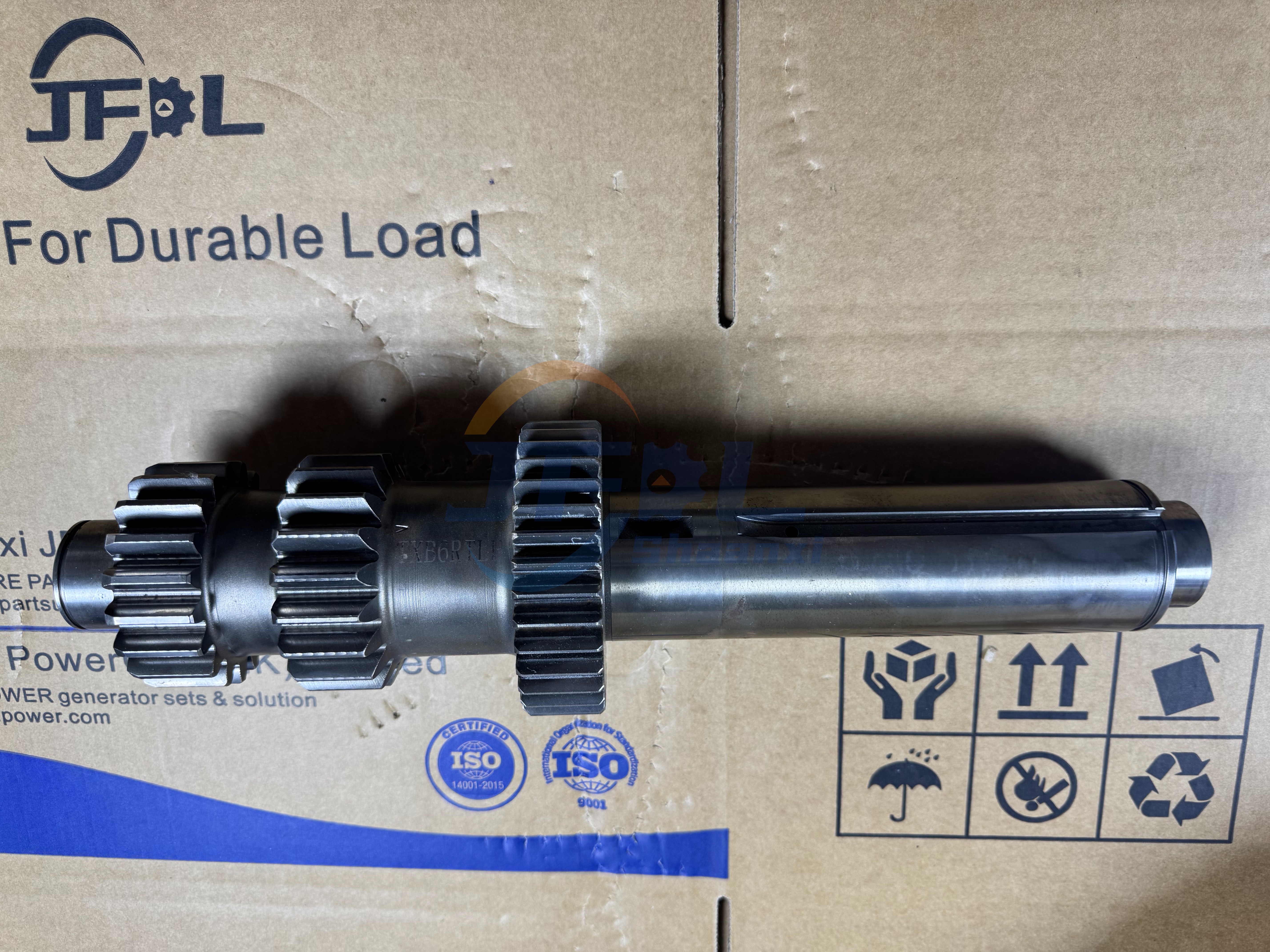

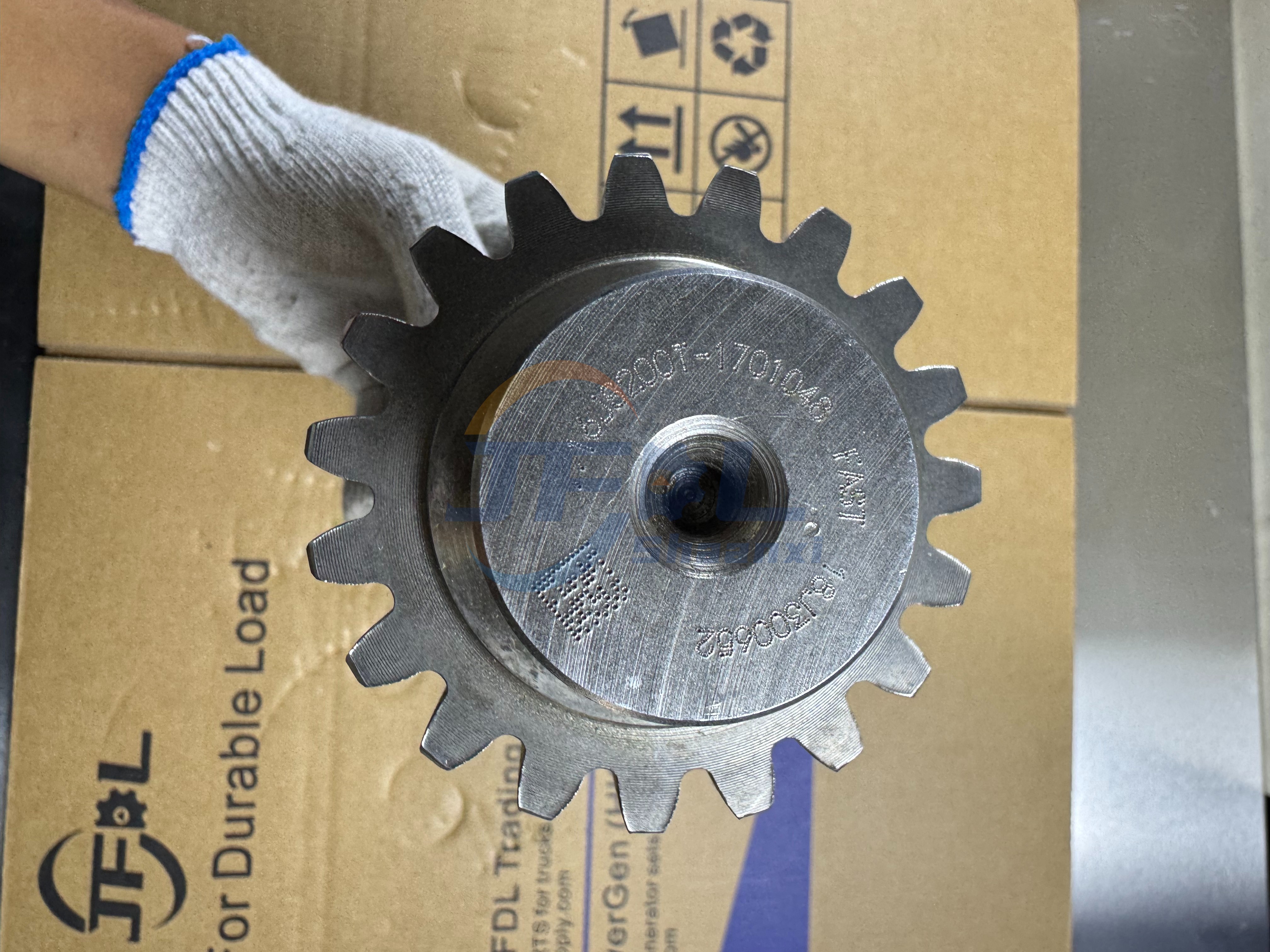

| Truck Transmission system Countershaft / Intermediate Shaft Information Sheet | ||
| Attributes | Shacman | |
| Model | JFDL-16JS200T-1701048 | |
| Main Models | JFDL-16JS200T-1701048 | |
| Installation Location | Installation Location: Inside the main box of the transmission (Dual Countershaft Setup) | |
| Material | Iron | |
| Length (L) | Approx. 300mm - 350mm | |
| Flange Specifications | Standard | |
 | |  |
Performance Characteristics
Advanced Twin Countershaft Geometry: Engineered specifically for FAST’s signature dual-countershaft system, splitting the torque load equally to significantly reduce gear center distance and transmission size.
Premium 20CrMnTi Alloy Steel: Forged from high-grade chromium-manganese-titanium alloy steel to withstand massive torsional stress and heavy-impact loads in mining and construction environments.
Precision Carburized & Quenched Hardening: Subjected to advanced heat treatment, delivering a rock-hard, wear-resistant surface (up to 58-62 HRC) while maintaining a resilient, flexible inner core to prevent snapping.
High Torque Capacity (2000 N·m+): Optimally rated to handle high-output heavy truck engines (336 HP – 460 HP), ensuring smooth and efficient power transfer without deformation.
CNC Precision-Ground Journals & Splines: Features high-accuracy splines and bearing journals machined to micro-tolerances, eliminating gear slippage, minimizing vibration, and extending bearing life.
Perfect OE-Standard Fitment: Manufactured strictly according to original equipment (OE) blueprint dimensions, guaranteed to be a 100% direct-replacement part with zero modification needed.
Superior Anti-Fatigue Performance: Built for a long service life under severe heavy-duty cycles, including frequent low-gear hill climbs and heavy-load launches.
