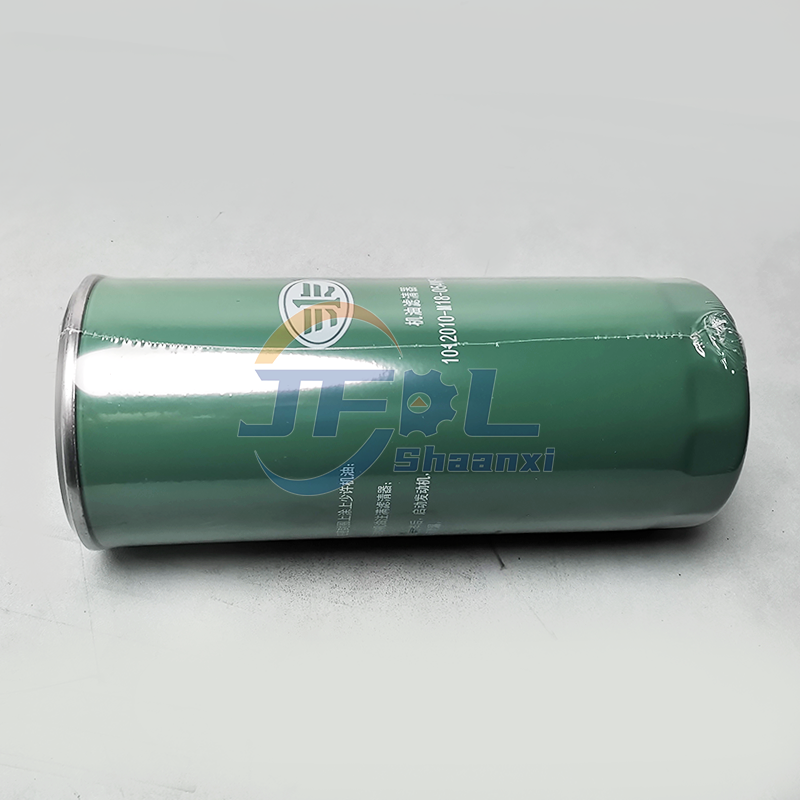

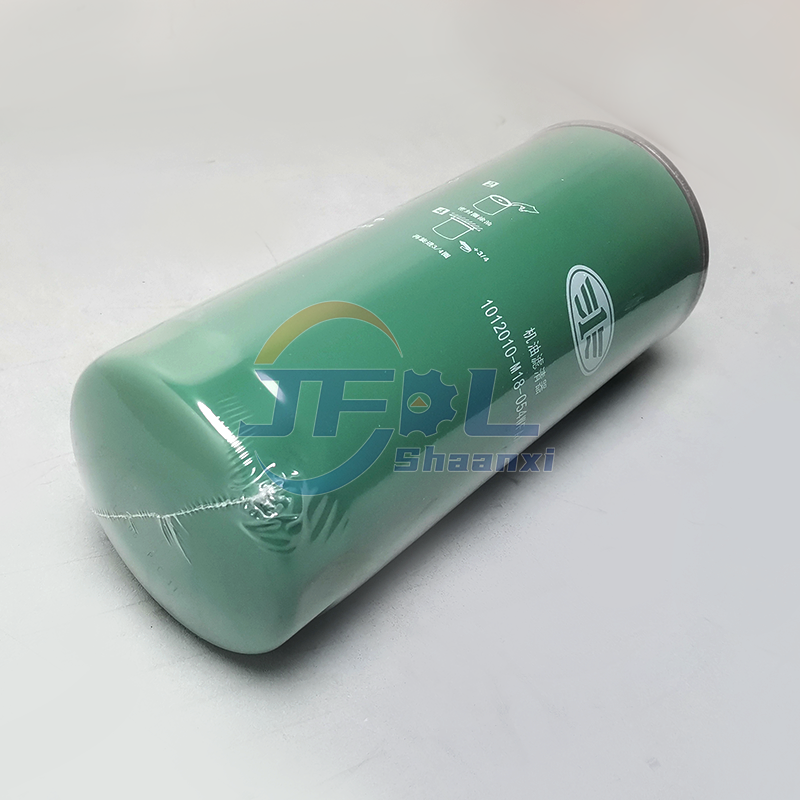

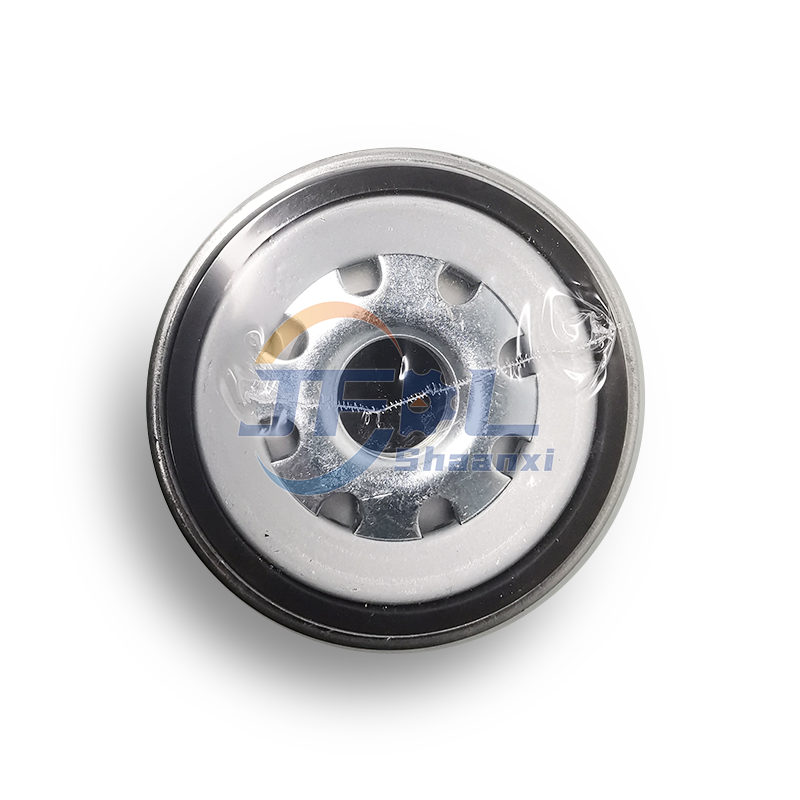

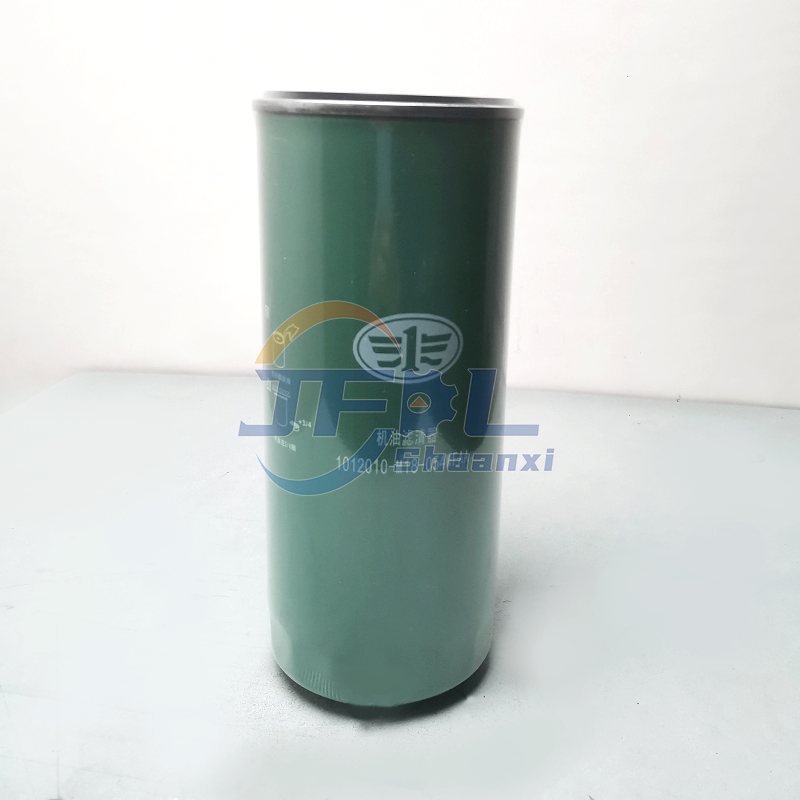

FAW J6P JH6 Truck Spare Parts 1012010-M18-054W Oil Filter for 6DM/6DN Engine
 | |  |
The 1012010-M18-054W is a long-life, full-flow spin-on oil filter designed for heavy-duty diesel engines used in Chinese-made commercial trucks. It ensures efficient filtration of engine lubricating oil, protecting critical engine components from wear and contamination under harsh operating conditions.
This OEM-spec filter is widely used across FAW (First Automotive Works) truck platforms and compatible with major Chinese diesel engine brands such as FAWDE (Dachai) and Weichai (WEICHAI).
| Attribute | Description |
|---|---|
| Part Name | Engine Oil Filter / Oil Filter Element |
| OEM Part Number | 1012010-M18-054W |
| Type | Full-Flow, Spin-On (Disposable Canister Type) |
| Design | Long-Acting / Extended Service Interval |
| Application | Heavy-Duty Diesel Trucks & Commercial Vehicles |
| Mounting Style | Threaded Base (Replaceable Cartridge-in-Housing) |
| Genuine Replacement | Yes – OEM Equivalent or Direct Fit |
| Quality Standard | Meets or exceeds FAW, Weichai, and industry filtration standards |
| Parameter | Value |
|---|---|
| Filter Type | Full-Flow (All oil passes through the filter) |
| Filtration Efficiency | High-Efficiency Grade (HEPA-level equivalent for particulate capture) |
| Nominal Filtration Rating | 10–25 microns (effective removal of fine particles) |
| Beta Ratio (β) | ≥ β25 > 100 (per ISO 16889) |
| Filter Media | High-Performance Cellulose/Resin Composite Paper (e.g., Ahlstrom or equivalent imported media) |
| Media Treatment | Heat-cured phenolic resin for wet strength and durability |
| Housing Material | Sturdy Steel Shell (anti-corrosion coated) |
| Seal Material | Nitrile Rubber (NBR) O-Ring – high temperature & oil resistant |
| Bypass Valve Opening Pressure | 0.1–0.15 MPa (1.0–1.5 bar) |
| Anti-Drain Back Valve | Integrated (prevents dry start-up after shutdown) |
| Operating Temperature Range | -40°C to +135°C |
| Maximum Working Pressure | Up to 6 bar (burst pressure > 15 bar) |
| Dimensions (Approx.) | - Outer Diameter: Φ110 mm - Height: 262 mm (including base plate and gasket) |
| Thread Size | M20×1.5 or similar (standard for Chinese/European truck engines) |
| Weight | ~0.7 kg (net) |
Designed primarily for FAW Jiefang series heavy trucks, but also fits other Chinese commercial vehicle platforms:
FAW Jiefang J5 Series
FAW Jiefang J6P
FAW Jiefang J7
FAW Tiger V (Hu-V) Light/Medium Duty Truck
Some models of:
Shacman (Shaanxi) Trucks
Sinotruk HOWO / A7 Series
Yutong Buses (with matching engine configuration)
FAWDE (FAW Dalian Engine) Series: CA6DL, CA6DM, CA6DN
Weichai (WEICHAI) Engines: WP10, WP12, WP13 series
Other Matching Diesels: Equipped with standard M20-threaded oil filter housing
Note: Always verify physical dimensions, thread type, and seal compatibility before installation on non-FAW vehicles.
High Dirt-Holding Capacity: Extended service life reduces maintenance frequency.
Excellent Particle Removal: Removes soot, metal shavings, sludge, carbon deposits, and dust from engine oil.
Thermal & Pressure Resistant: Stable performance under high-load, high-temperature diesel engine operation.
Leak-Proof Sealing: Precision-molded rubber gasket ensures reliable sealing against oil leakage.
Anti-Drain Back Design: Prevents oil drain-back when engine stops, ensuring instant lubrication at startup.
Bypass Protection: Opens under clogged or cold-start conditions to maintain oil flow and prevent engine damage.
Environmentally Friendly: Fully disposable; recyclable steel body.
This part is known by multiple manufacturer and aftermarket codes. Use these for sourcing replacements or cross-compatibility checks.
| Brand | Part Number |
|---|---|
| Original Equipment (FAW) | 1012010-M18-054W |
| Fleetguard (Donaldson) | LF16411 |
| Donaldson (Global) | P578766 |
| Baldwin Filters | R011848, W1110245 |
| S3 Group (S3) | S3684R1 |
| Yutong Bus Application | 1012-00096 |
| Weichai Engine Match | 610800070015 |
| Shanghai Diesel Engine (SDEC) | D17-002-02+B |
Tip: Search using keywords like "1012010-M18-054W oil filter", "LF16411 replacement", or "FAW J6P long-life oil filter" for best results.
Follow these guidelines to ensure proper function and avoid engine damage:
Regular Replacement Required
→ Replace every oil change cycle. Typical intervals:
Mineral Oil: 5,000 km
Semi-Synthetic: 7,500 km
Full Synthetic: Up to 10,000–15,000 km (depending on engine and driving conditions)
Pre-Lubricate the Gasket
→ Apply a thin layer of clean engine oil to the rubber seal before installation to ensure smooth mounting and prevent leaks.
Correct Tightening Torque
→ Hand-tighten until the gasket contacts the mounting surface, then turn an additional ¾ turn (3/4 turn) with a filter wrench.
❌ Do not over-tighten — this can damage the seal or housing and cause leaks or difficulty during next removal.
Check for Leaks After Start-Up
→ Run the engine for 1–2 minutes and inspect around the filter base for any signs of oil seepage.
Verify Oil Level
→ After replacement, check the dipstick to confirm correct oil level — some oil fills the new filter internally.
Avoid Mixing Incompatible Filters
→ Never force-install a filter that doesn’t match the original size, thread pitch, or bypass valve specs. Mismatched filters may result in poor filtration, no oil pressure, or catastrophic engine failure.
Dispose Responsibly
→ Used oil filters contain residual oil and must be recycled according to local environmental regulations.
Storage Conditions
→ Store unused filters in a cool, dry place away from direct sunlight and extreme temperatures.
Heavy-Duty Transport: Long-haul freight, container hauling
Construction & Mining: Dump trucks, mixers, off-road operations
Harsh Climates: Desert heat, arctic cold, coastal humidity
High-Dust Areas: Quarry sites, rural roads, unpaved terrains
Packaging: Individual box or bulk packaging; labeled with part number, barcode, batch code, production date
Markings: Includes filter specifications, warnings, and directional arrows (if applicable)
Warranty: Typically 12 months against manufacturing defects (varies by supplier)
Origin: China (manufactured for FAW or licensed OEM suppliers)
The Oil Filter 1012010-M18-054W is a high-performance, long-service-life solution for modern heavy-duty diesel engines in Chinese commercial vehicles. With superior filtration efficiency, robust construction, and broad compatibility across FAW, Weichai, Shacman, and Sinotruk platforms, it plays a vital role in maintaining engine health and extending service intervals.
