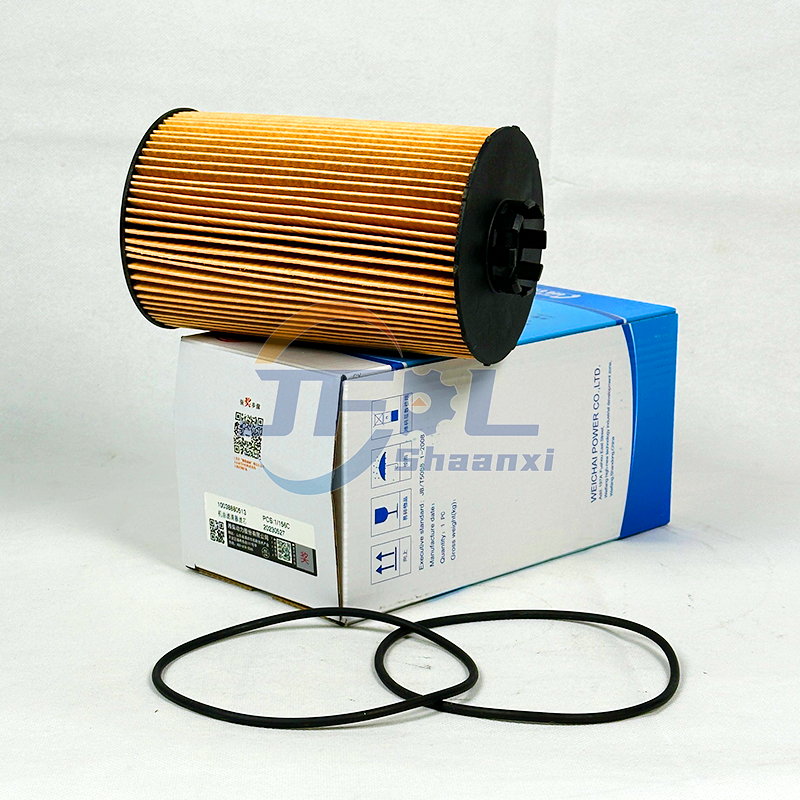

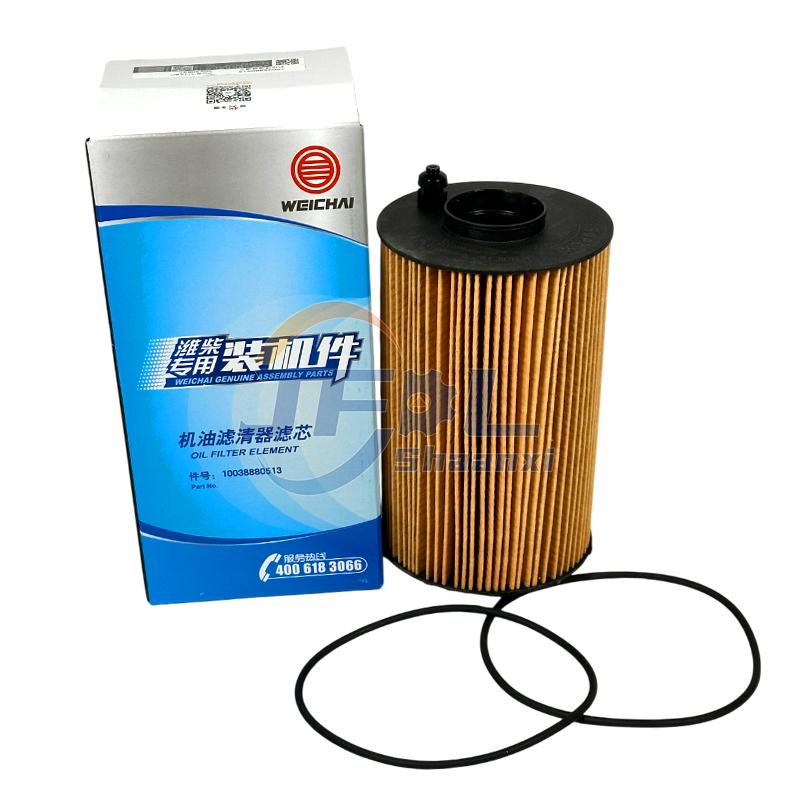

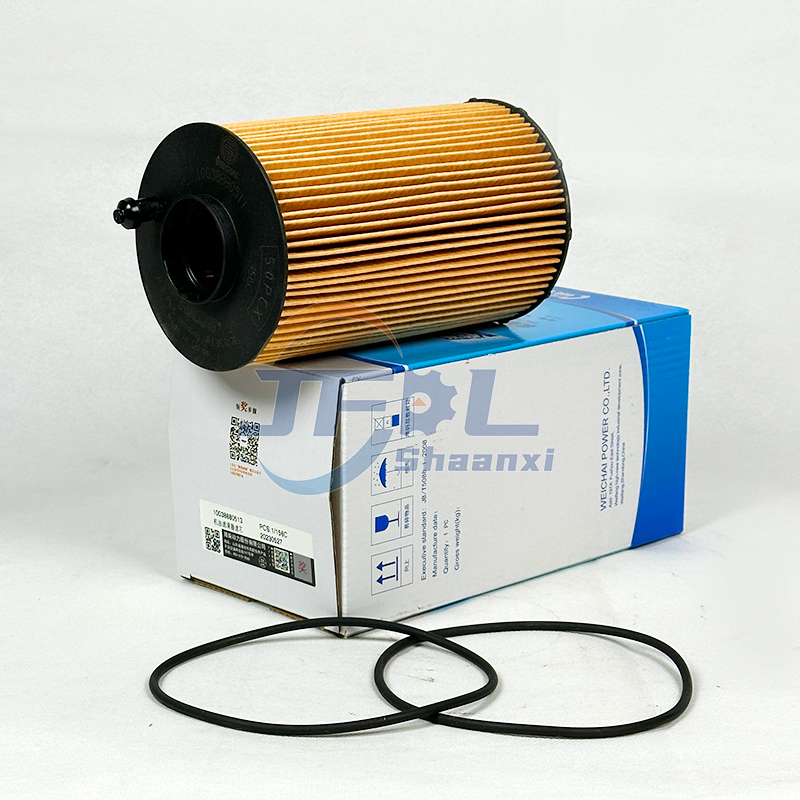

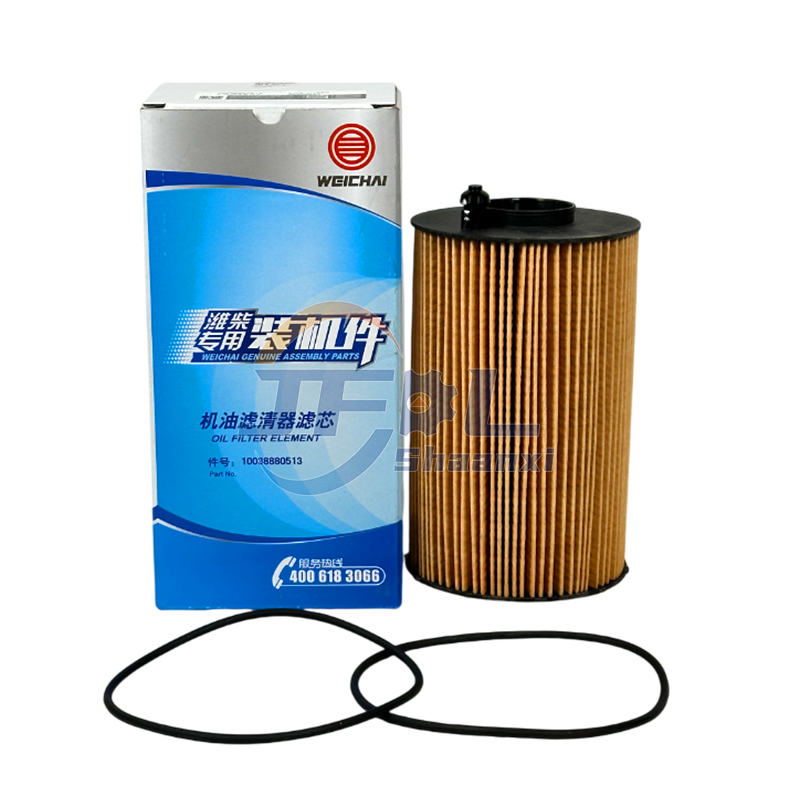

FAW Jiefang Truck Weichai Engine Parts Oil Filter Element 10038880513 Oil Filter
| Parameter | Specification |
|---|---|
| Model No. | 10038880513 |
| Type | Spin-On Full-Flow Engine Oil Filter |
| Core Filtration Material | High-efficiency synthetic filter paper |
| Sealing Component | Rubber gasket (NBR or EPDM material) for leak-proof seal |
| Structure | Cylindrical spin-on design with integrated bypass valve |
| Color | Typically black or dark gray housing |
| Dimensions (Filter Core) | Approx. 11 cm × 11 cm × 21 cm |
| Single Unit Packaging Size | 13.5 cm × 13.5 cm × 23 cm |
| Gross Weight (with packaging) | ~0.6 kg |
| Filtration Efficiency | Filters particles ≥ 30 microns with high capture rate (>95%) |
| Filtered Contaminants | Metal shavings, carbon sludge, dust, soot, oxidized oil residues |
| Operating Pressure | Designed to withstand normal engine lube system pressures (up to 6 bar burst pressure typical) |
| Temperature Range | -30°C to +120°C (short-term peaks up to +140°C) |
| Quality Certifications | ISO 9001, IATF 16949 (International Automotive Quality Standards) |
| Warranty Period | Standard: 6 months Genuine OEM versions: up to 12 months under proper use |
| MOQ (Minimum Order Quantity) | 1 piece (common in aftermarket sales) |
 |  |  |
WP7
WP10
WP10H
WP12
WP13 series diesel engines
| Brand | Compatible Models |
|---|---|
| FAW Jiefang (First Auto Works) | - J5 Series (e.g., CA4163P7 model from 2007) - HanV 400 HP and other HanV variants |
| Shaanxi Auto (SX / Shacman) | - TT385 and other models produced after 2012 with matching Weichai powertrain |
| Sinotruk (CNHTC) | - Selected HOWO series trucks powered by WP10/WP12/WP13 engines |
| Other Heavy Commercial Vehicles | - Long-haul tractor-trailers - Engineering dump trucks - Mining and construction haulers |
Widely used in:
National logistics fleets
Infrastructure projects
Mining and quarry transport
Regional freight distribution networks
Effectively captures harmful contaminants such as:
Metallic wear particles (from bearings, gears)
Carbon deposits and sludge
Dust and external debris
Prevents abrasive damage to critical engine components:
Crankshaft
Camshaft
Turbocharger bearings
Fuel injection pump drive mechanism
Reduces risk of oil passage blockage and maintains consistent oil flow.
Built to endure:
High-load continuous operation
Frequent thermal cycling
Vibration and shock loads
Maintains structural integrity under:
High temperatures (>100°C oil sump)
High-pressure conditions
Dusty and humid environments
No deformation of filter media or housing during long-term use.
Features standard spin-on mounting interface used across Weichai heavy-duty platforms.
Direct fit — no modifications required.
Easy removal and installation using standard tools.
Ensures fast maintenance turnaround and improved fleet uptime.
Opens automatically when filter becomes clogged or at cold start.
Prevents engine oil starvation.
Maintains lubrication even if filter needs replacement.
This oil filter has several equivalent identifiers used across OEM and aftermarket channels:
| Type | Part Number |
|---|---|
| Weichai Original | 10038880513 |
| OE Number | 611600070119 |
| Compatible Alternative Models | |
| 6061800109 | |
| 10038880511 (Same platform — compatible on WP10/WP12/WP13 engines) |
| Scenario | Description |
|---|---|
| Long-Haul Freight Transport | Continuous engine operation demands reliable oil filtration to prevent overheating and wear |
| Mining & Quarry Operations | Exposure to extreme dust and vibration requires robust filtration systems |
| Construction Site Hauling | Stop-start cycles and heavy loads increase oil contamination risks |
| High-Temperature Regions | Desert or tropical climates require thermally stable filter materials |
| Cold Climate Use | Cold-start performance enhanced by low-restriction design and quality gasket sealing |
Inspect Sealing Ring Before Installation
Ensure the rubber O-ring is intact, undamaged, and not twisted.
Apply a thin layer of clean engine oil to the seal to improve sealing and prevent dry friction.
Correct Tightening Procedure
Hand-tighten first until the gasket contacts the mounting surface.
Then tighten an additional ¾ to 1 full turn with a wrench.
❌ Do not over-tighten — this can crush the gasket or deform the metal housing, leading to leaks or difficulty in future removal.
Check for Leaks After Installation
Start the engine and let it run for 5–10 minutes.
Visually inspect the filter base for any signs of oil seepage or dripping.
Address leaks immediately by rechecking torque and seal condition.
Follow Recommended Replacement Interval
Replace every 10,000 km or in line with engine oil change schedule.
In severe conditions (dust, heavy load, frequent idling): shorten to every 7,000–8,000 km.
Even if mileage is low, replace at least once every 2 years — aged filter media may degrade internally.
Purchase Genuine or Certified-Quality Products
Poor filter paper allows contaminants through
Weak anti-drainback valves cause dry starts
Inferior seals lead to oil leaks
Avoid counterfeit or substandard filters:
Risk: Increased engine wear, reduced lifespan, potential engine failure
Monitor for Warning Signs
Replace immediately if you notice:
Sudden drop in oil pressure warning light
Knocking or abnormal engine noise
Increased oil consumption
Dark, sludgy oil after short use
Store Properly Before Use
Keep in dry, clean, temperature-controlled environment.
Avoid exposure to moisture, direct sunlight, or corrosive chemicals.
Do not remove protective cap until ready for installation.
Dispose of Used Filters Responsibly
Drain residual oil into approved container.
Recycle according to local environmental regulations.
Never dispose of in regular trash.
