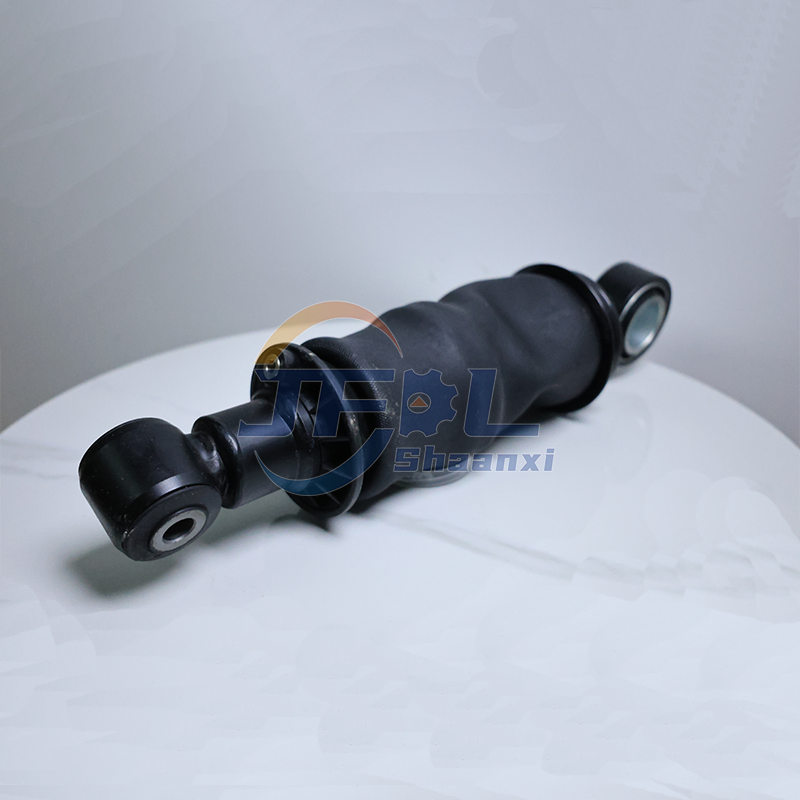

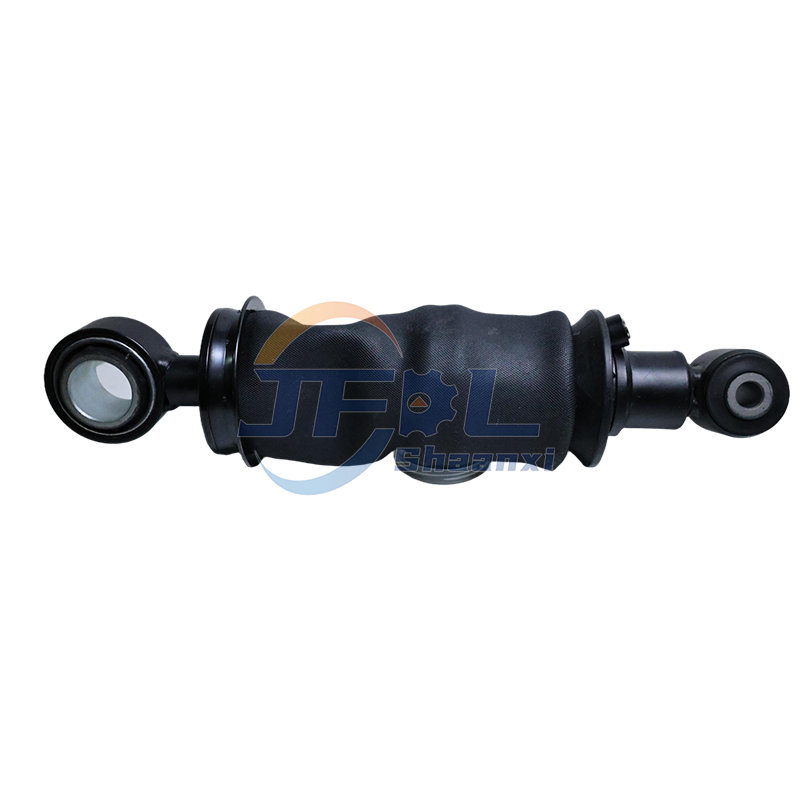

Truck Chassis System Part 5001025A1063-C00 Front Suspension Air Spring Shock Absorber Assembly for FAW Jiefang JH6 Heavy Trucks

Truck Chassis System Part 5001025A1063-C00 Front Suspension Air Spring Shock Absorber Assembly for FAW Jiefang JH6 Heavy Trucks

5001025A1063-C00 is the front suspension airbag shock absorber assembly for the cab of FAW Jiefang JH6 series heavy-duty trucks. The core function of this part is to achieve full floating filtration of the cab through the combination of airbag elastic support and hydraulic damping shock absorption, thereby greatly reducing chassis bumps and improving the comfort of long-distance driving.

Model:
5001025A1063-C00
Brand:
for FAW Jiefang JH6 Series Heavy Trucks

Size:	451515cm
Availability:

Quantity:



Inquire Add to Basket

Truck Chassis System Part 5001025A1063-C00 Shock Absorber 5001025A1063-C00 Front Suspension air Spring Shock Absorber Assembly 5001025A1063-C00 Shock Absorber Assembly for FAW Jiefang JH6 for FAW Jiefang JH6 Heavy Truck Part 5001025A1063-C00 Air Spring Shock Absorber Assembly

Product Description

Description

Cab Front Suspension Airbag Shock Absorber Assembly Information Table
Item	Details
Name	Cab Front Suspension Airbag Shock Absorber Assembly
Part Number	5001025A1063-C00
Main Materials	High-strength steel (for shock absorber cylinder) and high-wear-resistant synthetic rubber (for airbag components)
Damping Characteristics	Employs a dual-cylinder hydraulic structure, featuring greater restoring damping (under tension) than compressive damping, effectively absorbing large impacts and suppressing residual vibrations in the cab.
Variable Stiffness Characteristics	The air spring frequency changes minimally with variations in load (such as cab weight and vibration), maintaining a consistently comfortable ride.
Long-Term Protection	Some high-quality models (such as original equipment manufacturer parts) feature a rubber-coated internal piston design, effectively preventing cylinder wear and extending service life.
Mounting Interface	Both ends are typically ring-hole (hole-type) interfaces or pin-threaded connections, using M12 or M14 high-strength bolts.
Air Line Interface	Standard quick-connect air hose connector (usually VOSS 230 or similar), used to connect to the vehicle's chassis air supply system.
Rated operating pressure	Typically between 0.5MPa and 0.8MPa (5-8 Bar); under static conditions, a minimum of 0.1MPa to 0.2MPa is recommended to prevent airbag folding damage.
Temperature range	Adaptable to ambient temperatures from -40°C to +70°C, ensuring the rubber airbag does not crack in extremely cold regions.
Installation	This part is installed at the front end (symmetrically on both sides) of the FAW JH6 cab. It typically works in conjunction with a cab height control valve (five-way or three-way valve) to maintain the cab's level.

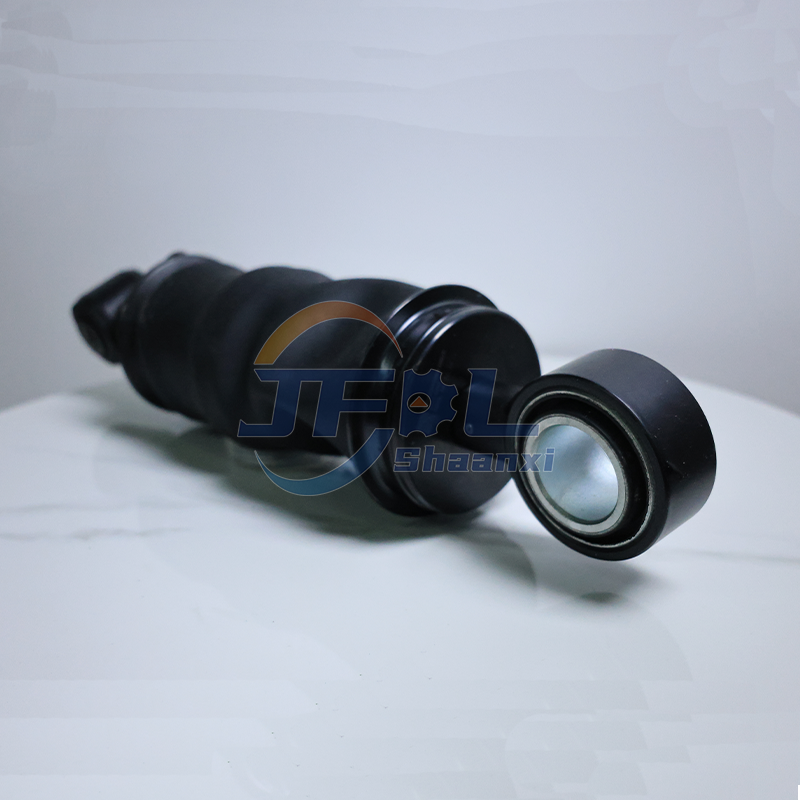

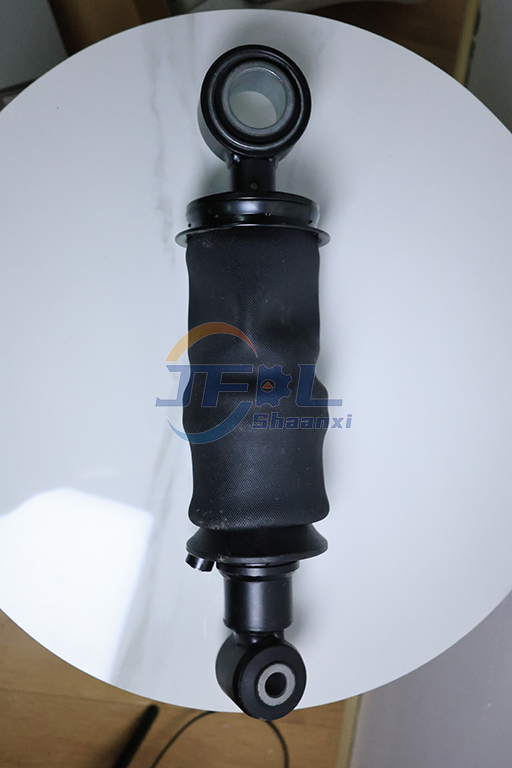

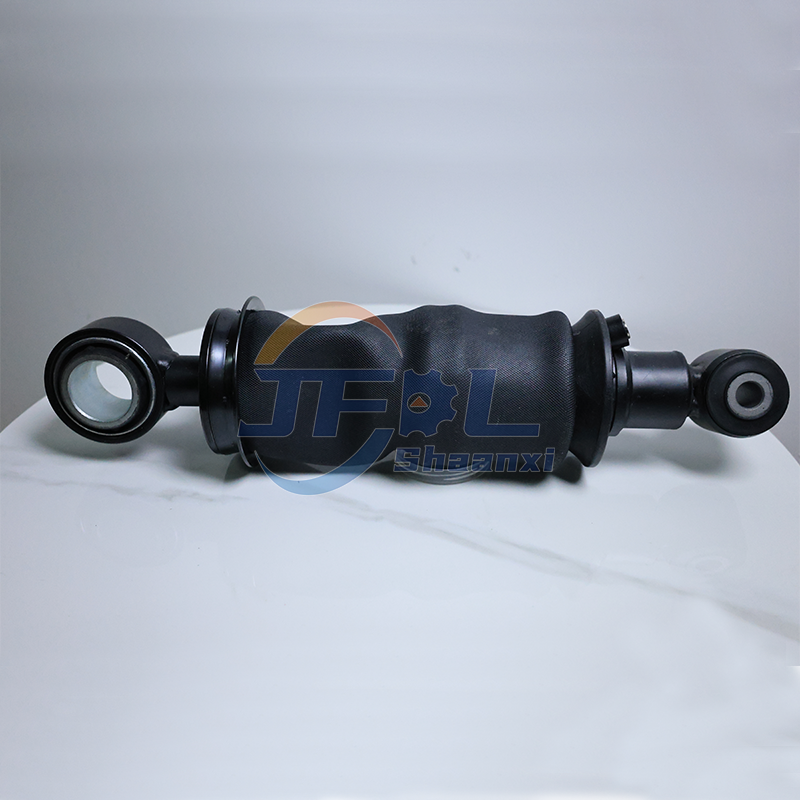

Photos

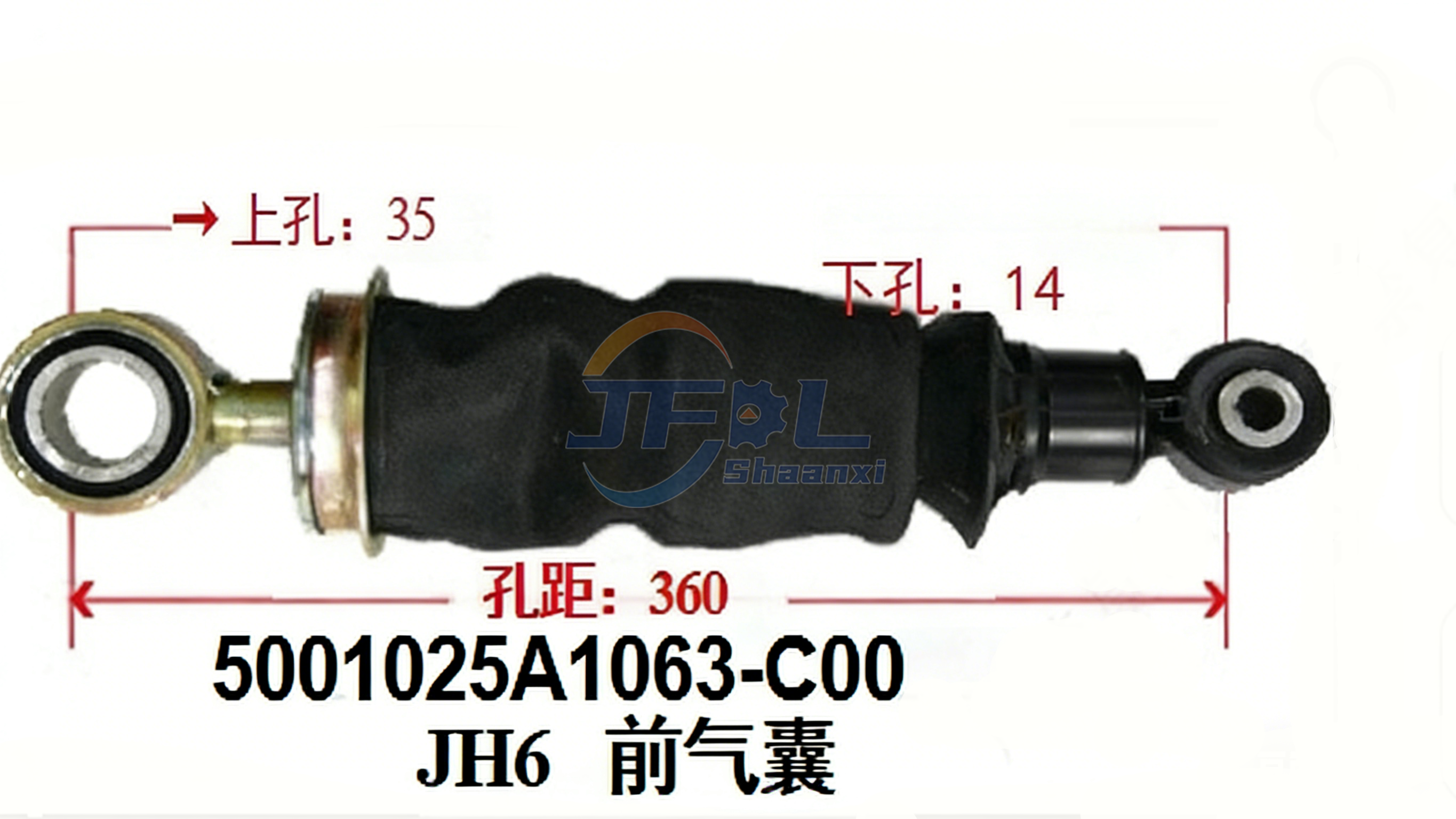

5001025A1063-C00-10

Features

Performance Characteristics

1. Dual damping: Combining the variable stiffness characteristics of air springs with the high damping characteristics of hydraulic dampers.

2. Long lifespan design: Internally, a rubber-coated piston is typically used, effectively protecting the inner cylinder and extending its service life.

3. Environmental adaptability: The air bladder rubber possesses strong resistance to cold, oil, and aging.
