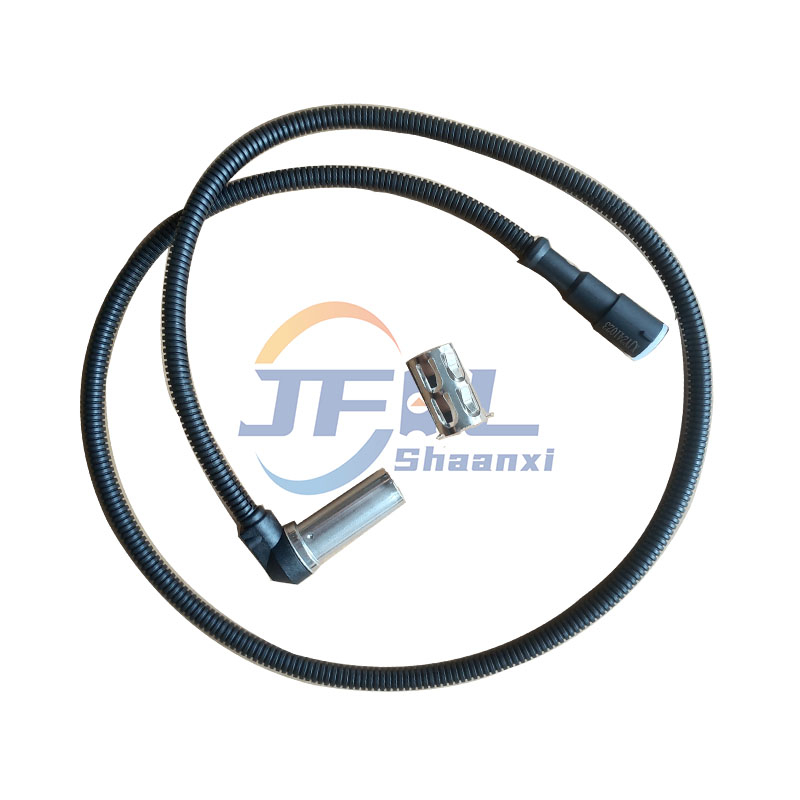

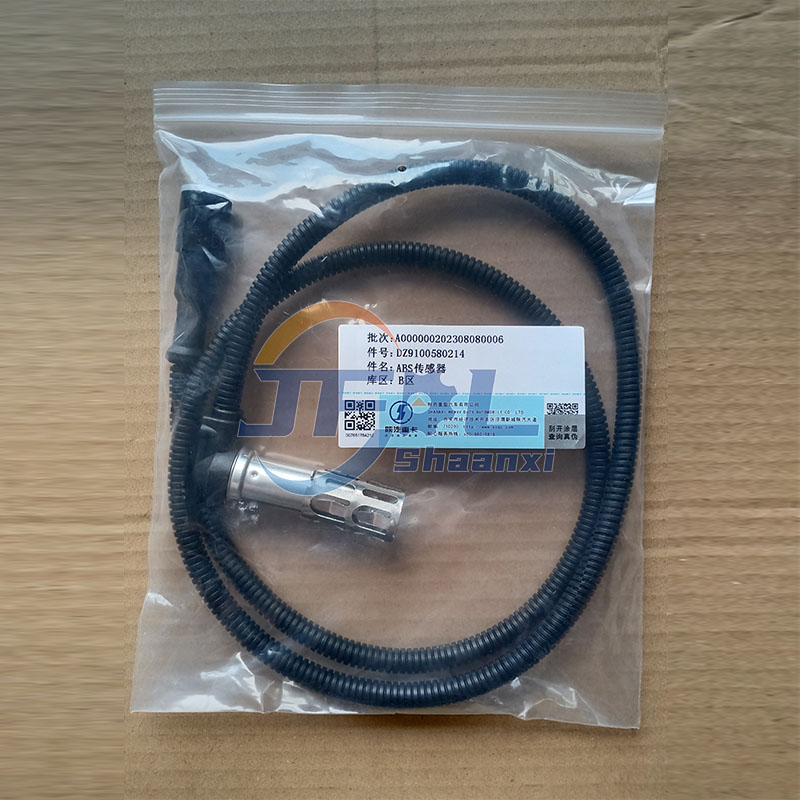

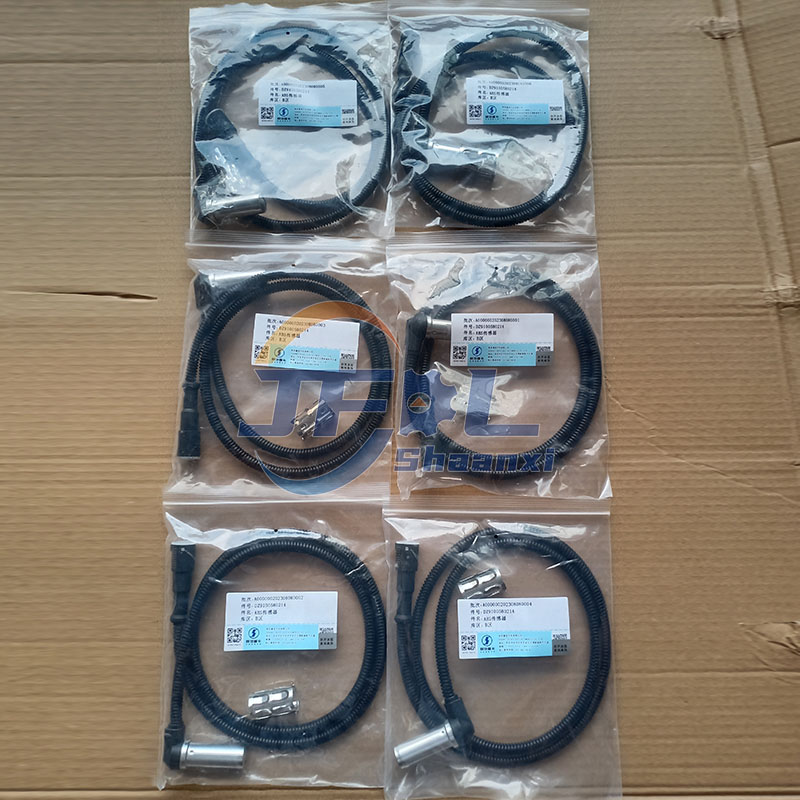

Quality Certification Truck Spare Parts ABS Wheel Speed Sensor DZ9100580214 for Shacman X3000
| Item name: | ABS Wheel Speed Sensor | Application: | Truck Spare Parts |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
| |
| Attribute | Description |
|---|---|
| Sensor Type | Passive Magnetic Inductive (Variable Reluctance) |
| Signal Output | Analog AC voltage signal (sine wave) |
| Sensing Principle | Detects rotation of toothed tone ring (reluctor wheel) on hub or axle |
| Installation Position | Mounted near front/rear wheel hubs, typically threaded into steering knuckle or axle carrier |
| Connector Type | 2-pin weatherproof connector (integral or pigtail) |
| Cable Length | Approx. 1.8–2.2 meters (varies by application) |
| Housing Material | Reinforced engineering plastic / PBT with stainless steel sensor tip |
| Sealing | IP67 rated – dust-tight and protected against temporary immersion |
| Thread Size | M12 × 1.0 or M12 × 1.5 (common) |
| Mounting Depth | Adjustable via shims or fixed air gap design |
High Reliability: Designed for continuous operation under harsh conditions.
Accurate Speed Sensing: Enables precise ABS and traction control system response.
Robust Design: Resistant to water, dust, oil, and road salt.
Long Service Life: Typically lasts over 500,000 km under normal conditions.
Fail-Safe Signal Drop-off: Gradual signal loss allows ECU to detect faults early.
Clean Mounting Area
Remove rust, dirt, or metal debris from thread hole and tone ring.
Check Air Gap
Ensure proper clearance between sensor tip and tone ring teeth (usually 0.3–1.3 mm).
Use feeler gauge if adjustable; some sensors seat fully when tightened.
Tightening Torque
Typical: 8–12 N·m (do not overtighten – risk damaging threads or housing).
Cable Routing
Avoid sharp bends, contact with moving parts, or exposure to exhaust heat.
Secure with clips to prevent vibration damage.
Connector Connection
Plug securely until it clicks; ensure waterproof seal is intact.
Post-Installation Test
Rotate wheel manually and check signal output with oscilloscope or multimeter (AC voltage should increase with speed
