7.5-ton Foton Auman Truck Front Axle Assembly Spare Parts Include Manual Adjusting Arm & Right Steering Knuckle Arm Etc Other Accessories

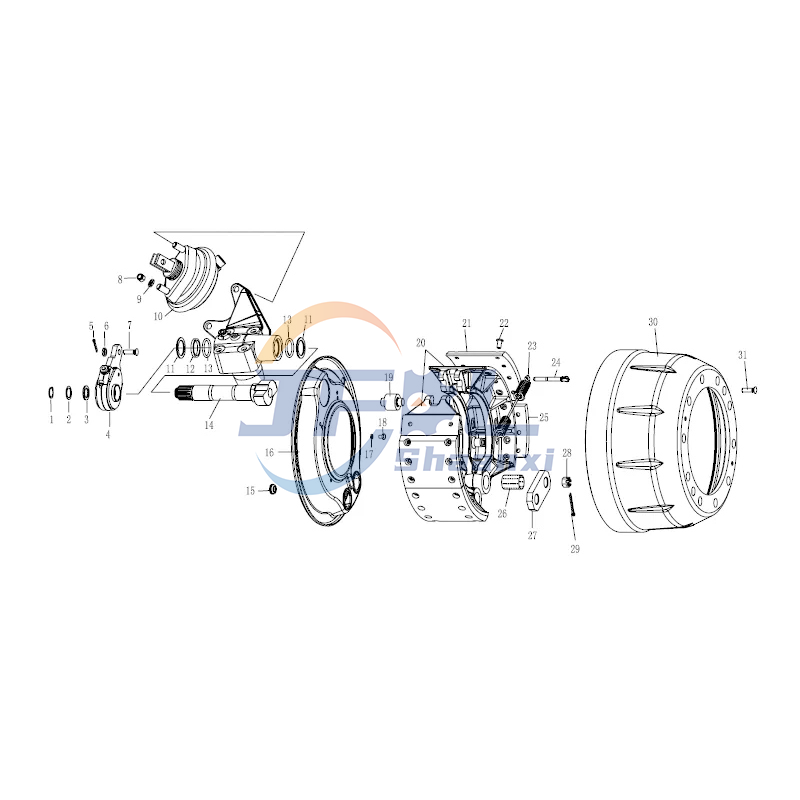

Foton Auman Front Axle (7.5t, W/Hand Adjusting Arm, Rh Knuckle Arm )-2

Key Components:

Front Axle (7.5T, W/Hand Adjusting Arm, RH Knuckle Arm): The primary structural component that supports the vehicle’s weight and facilitates steering and suspension.

Shaft Circlip: A retainment ring preventing shaft components from moving along the axle.

Adjusting Washer: Used for fine-tuning positions or tensions within the axle assembly.

Washer: Distributes load and protects surfaces from fastener damage.

Brake Adjusting Arm: Allows manual adjustment of brake shoes to compensate for wear.

Split Pin: Secures other components by preventing nuts or bolts from rotating.

Flat Washer: Helps in distributing pressure and protecting surfaces.

Axis Pin: Holds components together and allows for rotational movement.

Hexagon Nut: A standard nut with six sides for tightening and securing bolts.

External Sawtoothed Locking Nut: Prevents loosening under vibration due to its specialized threads.

Diaphragm Brake Chamber: Converts air pressure into mechanical force to actuate the brakes.

Additional Shim: Makes fine adjustments to component positions or fits.

Spacer Bush: Maintains spacing between parts or compensates for wear.

O-Ring Seal: Prevents leakage of fluids or gases.

Brake Camshaft: Translates brake chamber force into mechanical action for applying brakes.

Seal Plug: Seals openings to prevent leaks.

Brake Dust Cover: Protects brake components from dust and debris, extending their lifespan.

Spring Washer: Provides resilience and maintains tension in the assembly.

Hexagon Head Bolt: Allows for tightening with a wrench due to its six-sided head.

Roller: Facilitates smooth movement, possibly in the brake mechanism.

Foton Auman Front Axle (7.5t, W/Hand Adjusting Arm, Rh Knuckle Arm )-2

Brake Shoe: Presses against the brake drum to slow the wheel.

Brake Friction Lining: Provides the necessary friction for braking when contacting the drum.

Rivet:_secures parts together through expansion when hammered.

Retracting Spring: Returns brake components to their original position after braking.

Retracting Spring Pin: Attaches the retraction spring for proper function.

Bush: Reduces friction or guides movement in the assembly.

Foton Auman Front Axle (7.5t, W/Hand Adjusting Arm, Rh Knuckle Arm )-2

Limit Plate: Sets movement limits for components to prevent overextension.

Hexagon Slotted Flat Nut: Allows adjustment and securing with a tool.

Split Pin: secures other components by preventing rotation.

Brake Drum: Rotates and is pressed by brake shoes to slow or stop the wheel.

Countersink Screw: sits flush or below the surface for a smooth finish.

This detailed assembly ensures the axle functions efficiently and safely, handling the heavy loads and requiring minimal maintenance. Each component plays a vital role in the overall performance and longevity of the front axle, making it an essential part of heavy-duty vehicles.
