1B24950200132
for Foton Auman
| Size: | |
|---|---|
| Availability: | |
| Quantity: | |

| Parts Information Sheet | |
| Item | Specification |

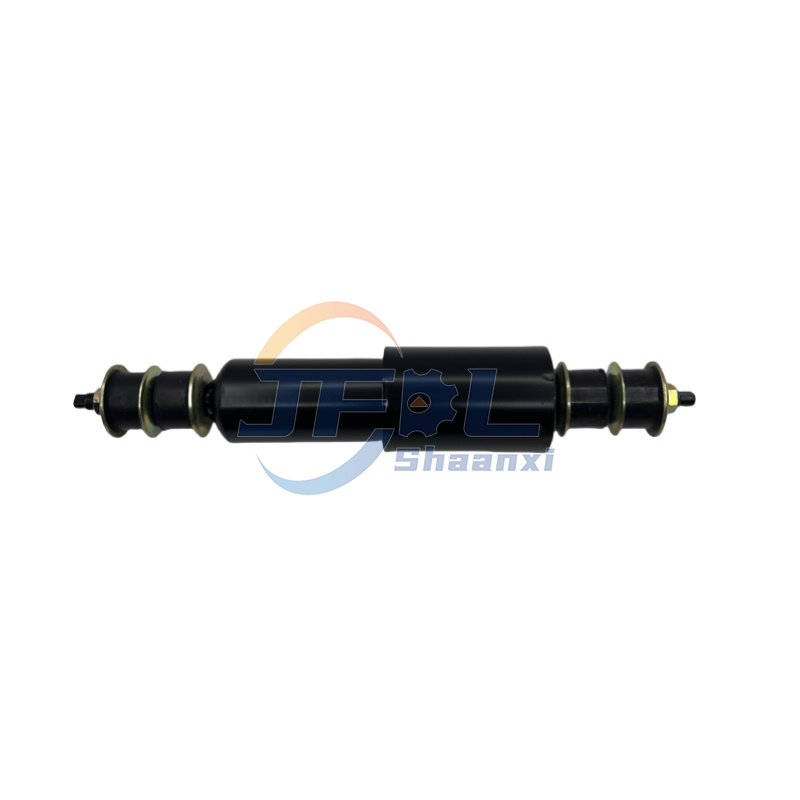

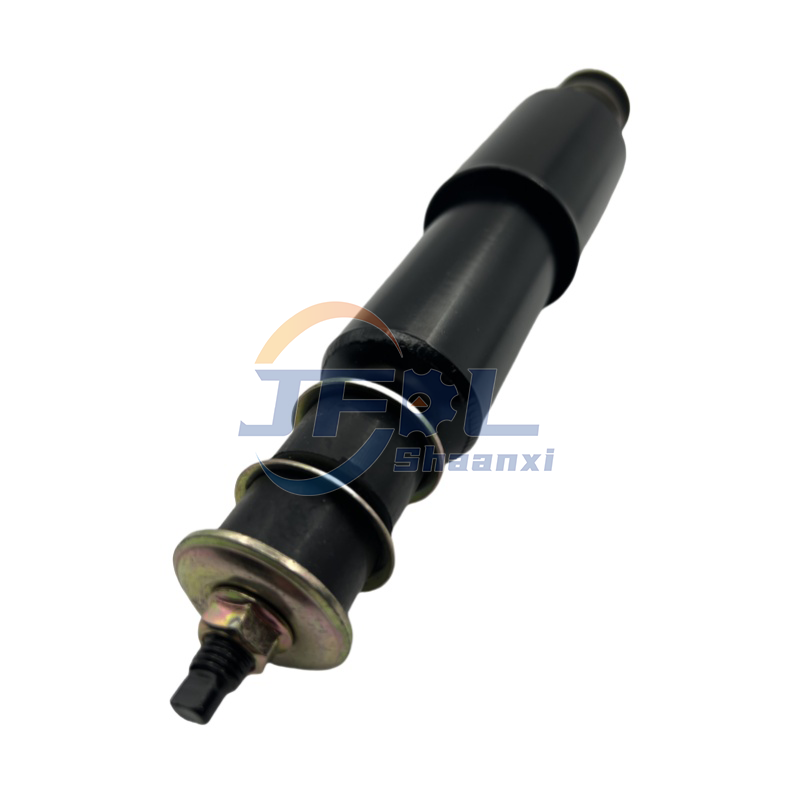

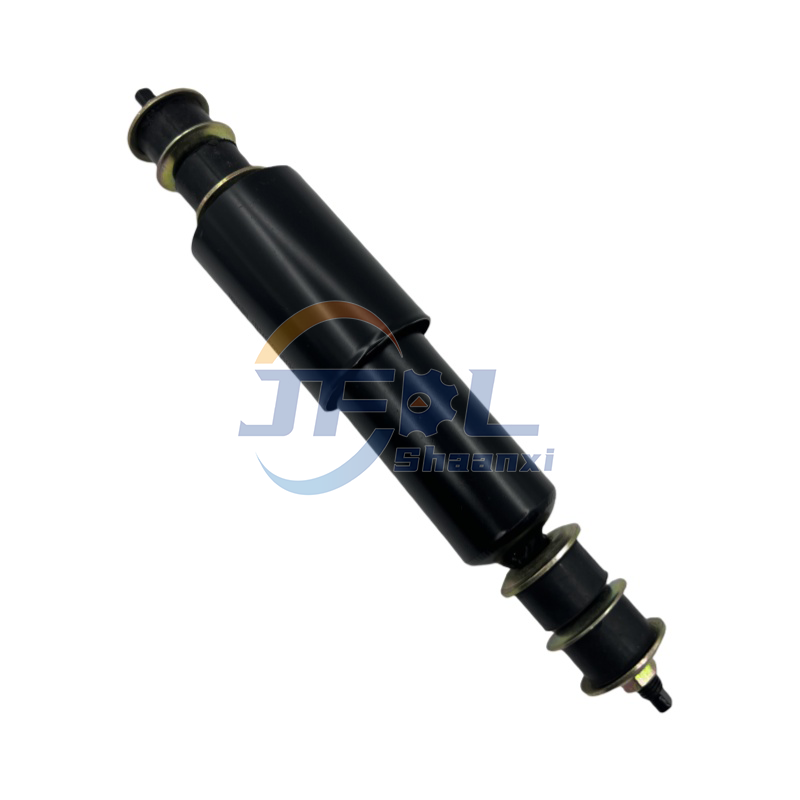

| Part Name | Cab Rear Shock Absorber Assembly |
| Part Number | 1B24950200132 |
| Material | Main body made of high-strength steel, internally containing hydraulic oil or gas, equipped with rubber buffer bushings |
| External Dimensions (Size) | Approx. 36cm × 8cm × 8cm |
| Mounting Interface | Both ends use eyelet bushing connections |
| Type | Hydraulic damping shock absorber (some versions are composite types with auxiliary springs, often referred to as "thick" shock absorbers) |
| Travel Information | Medium travel design, specifically adapted to the Auman ETX cab suspension bracket, used to filter vertical vibrations behind the heavy truck cab |
| Packaging Specifications | Usually individually packaged in cardboard boxes |

![]() | ![]() | ![]() |

Performance Characteristics
Shock Absorption and Cushioning: Absorbs impacts and rebound vibrations transmitted from the road surface to the cab, significantly improving driving comfort.
Reduced Fatigue: By optimizing damping characteristics, it reduces cab swaying and noise during long-distance driving, alleviating driver fatigue.
Stability: Enhances cab stability on corners or bumpy roads, protecting internal electronic components and interior trim.
Usage Precautions
Replace in Pairs: To ensure the cab's left-right balance, it is recommended to replace the left and right shock absorbers simultaneously to avoid cab tilting due to inconsistent damping forces.
Check for Oil Leaks: During routine maintenance, check the shock absorber body for hydraulic oil leaks. Leaks will rapidly reduce damping performance.
Bushing Inspection: During installation, check the end rubber bushings for aging or cracking. Replace them along with the shock absorbers if necessary to eliminate abnormal noise.
Installation Torque: Bolts must be tightened to the manufacturer's specified torque to prevent wear on the mounting holes or bolt breakage due to loosening.
