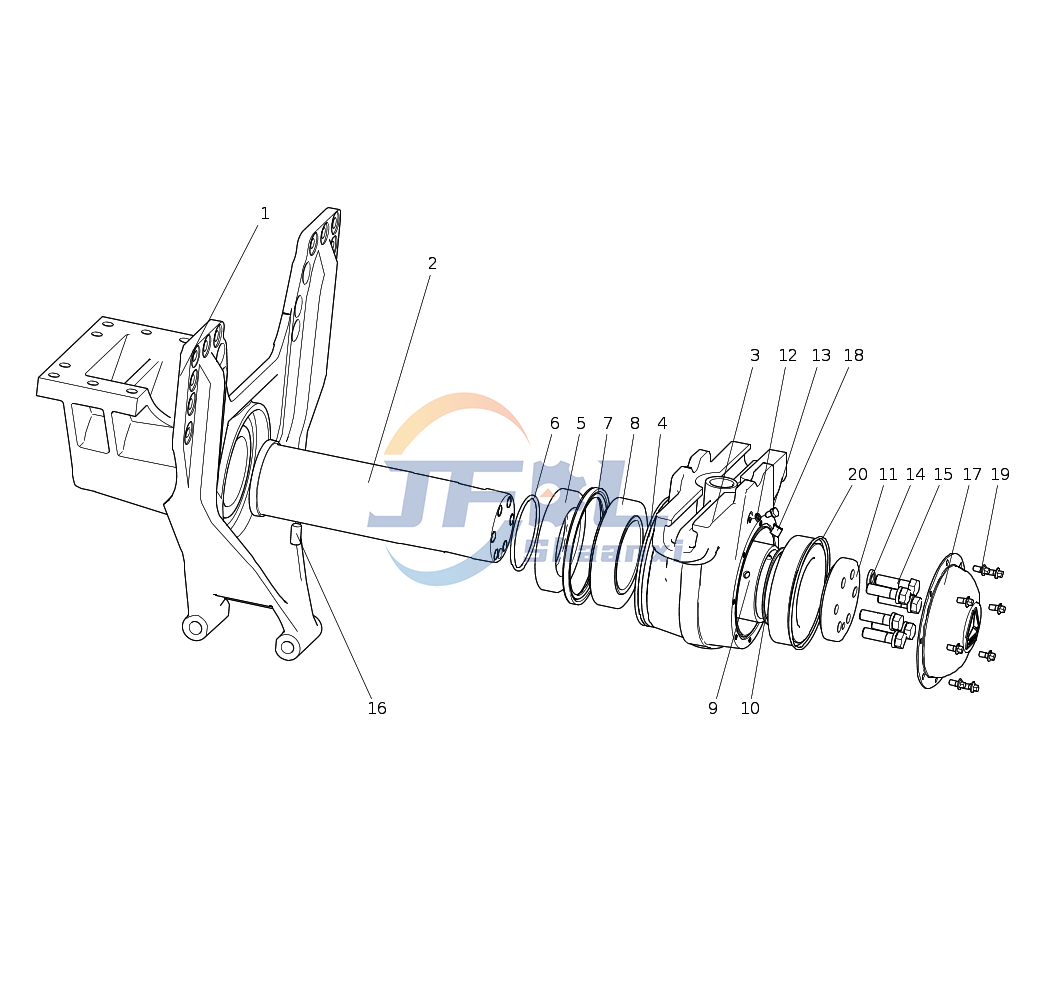

Howo Front And Rear Suspension System AZ9925520310 Balance Shaft with Shaft Housing Assembly
| Serial number | Drawing number | Name |
| 1 | WG9925520233 | Bracket |
| 2 | WG9725520237 | balance shaft |
| 3 | WG9925520235 | balance shaft housing |
| 4 | WG9925520062 | sealing ring |
| 5 | WG9725520136 | Bearing oil seal cap |
| 6 | WG614 130062 | sealing ring |
| 7 | WG9114520223 | Shaft seal |
| 8 | WG9114520042 | Spherical bearing |
| 9 | WG9725520238 | spacer bushing |
| 10 | WG9014520192 | Positioning washer |
| 11 | WG9725520239 | Bearing pressure block |
| 12 | Q72308T5F | Sealing gasket |
| 13 | ZQ150B0812 | Hexagon head bolt M8 |
| 14 | Q40516 | Heavy duty spring washers |
| 15 | Q151B1655TF2 | Hexagon head bolts (fine thread) |
| 16 | Q5211630 | Cylindrical pin |
| 17 | WG9014520312 | shell cover |
| 18 | WG0003962021 | Tapered thread internal hexagonal plug (Qingdao Botai) |
| 19 | ZQ1800816TF6 | Hexagonal flange toothed bolt M8 |
| 20 | AZ973152000053 | O-ring |
| 21 | WG9014520193 | Positioning washer |
| 22 | WG9014520194 | Positioning washer |
| 23 | WG9014520303 | Positioning washer |
| 24 | WG9014520306 | Positioning washer |
| 25 | WG9114520059 | Positioning washer |
| 26 | WG9100520008 | Positioning washer |
