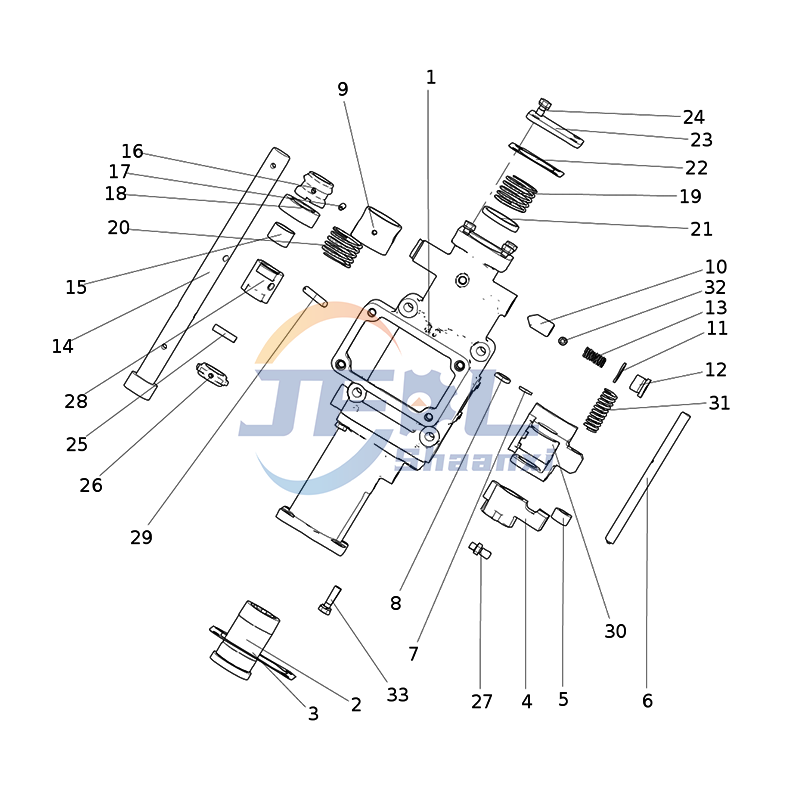

Howo Truck Drive Train Systems Parts AZ220321000036 small cover assembly (9 gears)
| serial number | Drawing number | Name |
| 1 | WG2203210746 | Small cover housing assembly (16 gears) |
| 2 | WG2210210002 | Spline bushing |
| 3 | WG2229210630 | End cap gasket |
| 4 | WG2229210350 | Sector-shaped self-locking block |
| 5 | WG2229210001 | bushing |
| 6 | WG2203210190 | Self-locking pin assembly |
| 7 | AZ9003343178 | Needle roller P3×17.8 GB309 |
| 8 | WG2229210011 | Spring retainer |
| 9 | WG2229210005 | Spacer sleeve |
| 10 | WG2229210018 | Range gear lock pin |
| 11 | Q72320 | Sealing gasket |
| 12 | 190003960005 | Cylindrical head hexagonal screw plug |
| 13 | WG2229210320 | Range gear lock spring |
| 14 | WG2212210004 | Shift shaft (double lever) |
| 15 | WG2229002520 | Composite bushing SF2 25×28×20 |
| 16 | WG2229210502 | High and low gear positioning ring |
| 17 | Q5280632 | Elastic cylindrical pin |
| 17 | Q5280632 | Elastic cylindrical pin |
| 18 | WG2229210004 | Centering seat ring |
| 18 | WG2229210004 | Centering seat ring |
| 19 | WG2229210003 | Centering spring (high-end side) |
| 20 | WG2229210303 | Centering spring |
| 21 | WG2229210022 | spacer ring |
| 22 | WG2229210144 | End cap gasket |
| 23 | WG2229210023 | Small cover end cover (range gear lock side) |
| 24 | Q1420820 | Hex head bolt and spring washer assembly |
| 25 | WG2229210012 | driving pin |
| 26 | WG2229210014 | Sensor drive ring |
| 27 | Q901 | Normally open vent plug |
| 28 | WG2214210102 | shift head |
| 29 | WG2229210009 | pin |
| 30 | WG2214210101 | interlocking forks |
| 31 | WG2229210333 | Self-locking spring |
| 32 | WG2229210006 | Set screw |
| 33 | Q1420830 | Hex head bolt and spring washer assembly |
