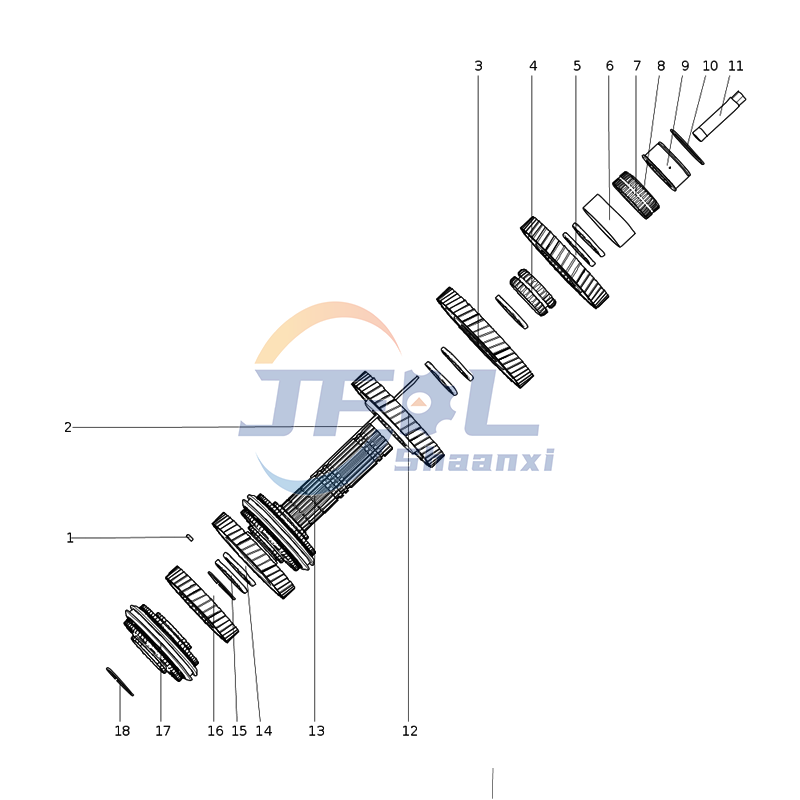

Howo Truck Drive Train Systems Parts AC22090400105 Spindle Assembly (fine And High Teeth)
| Serial number | Drawing number | Name |
| 1 | Q5280514 | Elastic cylindrical pin |
| 2 | WG2229040226 | Hex key |
| 3 | WG2210040137 | Main shaft climbing gear |
| 4 | WG2210040097 | Spindle sleeve |
| 5 | WG2210040136 | Main shaft reverse gear |
| 6 | WG2229100112 | Needle roller bearing outer ring |
| 7 | WG9003329835 | Needle roller bearing (K909835) |
| 8 | Q43072 | elastic retaining ring for hole |
| 9 | WG2210100100 | Spline bushing |
| 10 | Q43390 | Flattened steel wire retaining ring for shaft |
| 11 | WG2229240142 | Oil pipeline |
| 12 | WG2210040141 | Main shaft first gear (double cone lock ring) |
| 13 | WG2210040140 | Spindle |
| 14 | WG2210040138 | Main shaft second gear |
| 15 | WG2229040077 | Spindle gear spacer |
| 16 | WG2210040139 | Main shaft third gear |
| 17 | WG2203040041 | Synchronizer assembly |
| 18 | WG2229040150 | circlip |
Howo Truck Drive Train Systems Parts AC22090400105 Spindle Assembly (fine And High Teeth)
| Serial number | Drawing number | Name |
| 1 | Q5280514 | Elastic cylindrical pin |
| 2 | WG2229040226 | Hex key |
| 3 | WG2210040137 | Main shaft climbing gear |
| 4 | WG2210040097 | Spindle sleeve |
| 5 | WG2210040136 | Main shaft reverse gear |
| 6 | WG2229100112 | Needle roller bearing outer ring |
| 7 | WG9003329835 | Needle roller bearing (K909835) |
| 8 | Q43072 | elastic retaining ring for hole |
| 9 | WG2210100100 | Spline bushing |
| 10 | Q43390 | Flattened steel wire retaining ring for shaft |
| 11 | WG2229240142 | Oil pipeline |
| 12 | WG2210040141 | Main shaft first gear (double cone lock ring) |
| 13 | WG2210040140 | Spindle |
| 14 | WG2210040138 | Main shaft second gear |
| 15 | WG2229040077 | Spindle gear spacer |
| 16 | WG2210040139 | Main shaft third gear |
| 17 | WG2203040041 | Synchronizer assembly |
| 18 | WG2229040150 | circlip |
