Howo Truck Drive Train Systems Parts AZ2203100178 Range Gear Auxiliary Box Assembly

Availability:

Quantity:



Inquire Add to Basket

Product Description

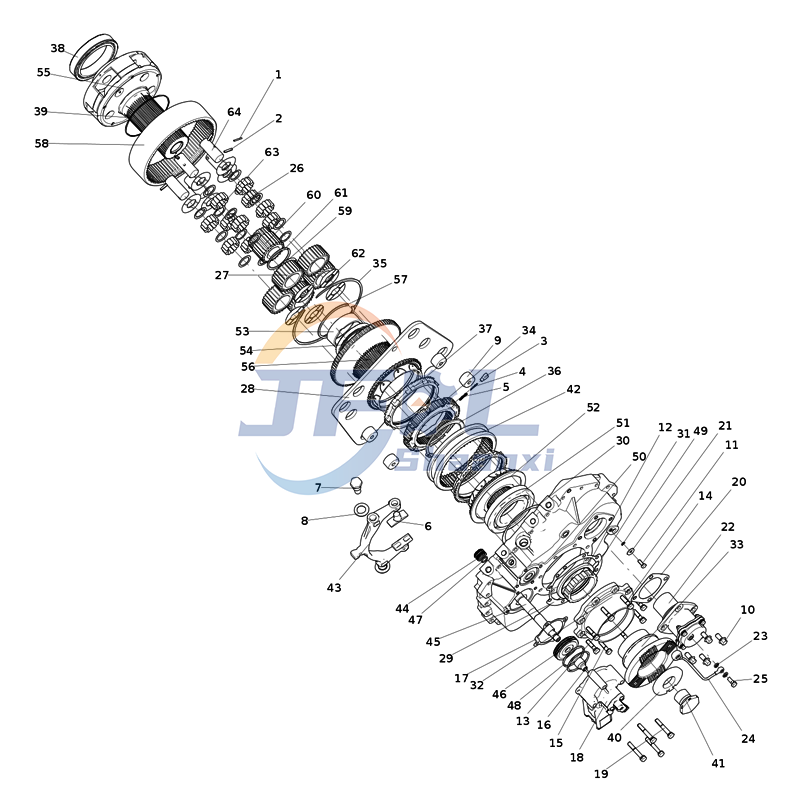

Description Howo Truck Drive Train Systems Parts AZ2203100178 Range Gear Auxiliary Box Assembly

Serial number	Drawing number	Name
1	Q5280430	Elastic cylindrical pin
2	Q5280630	Elastic cylindrical pin
3	WG2229020001	Push blocks synchronously
4	WG2229020003	Push block inner spring
5	WG2229020002	Push block outer spring
6	WG2229100022	Shift fork pendulum block
7	WG2229100043	Shift fork support pin
8	WG9003990024	Wave elastic washer
9	WG2229100021	Transmission torsion shaft
10	Q1841225	Hexagonal flange bolts
11	Q150B0820	Hexagon head bolts
12	WG9003071105	Combined skeleton oil seal (inner oil seal, outer oil seal)
13	Q40310	spring washer
14	WG9003801040	Combined rubberized bolt Q1421040
15	WG9003801041	Glue coated bolt Q170B1040
16	AZ9003870016	Hexagonal nut M16×1.5
17	WG2229100189	Range block cylinder paper gasket
18	WG2222100009	Range block cylinder
19	WG9003801065	Combined rubberized bolt Q1421065
20	WG2229100167	cover gasket
21	Q40208	Large washer
22	AZ2203240208	filter assembly
23	Q72310	Sealing gasket
24	WG2203240198	Filter oil pipe assembly 1
25	AZ900396100023	Hollow bolts (pre-glued)
26	WG9003321118	Cylindrical roller 11X18Ⅲb GB4661
27	WG2210100004	planet wheel
28	AZ220310000019	Low gear cone hub assembly
29	WG2229100184	Output shaft rear end cover gasket
30	AZ2208100003	Adjust shim set
31	WG2210100174	Sensor ring gear
32	WG2222100064	Output shaft rear end cover
33	WG2210100110	Output flange Φ180 end face teeth
34	WG2210100128	Range gear synchronization gear seat
35	WG2229100125	Flattened wire retaining ring for hole (for internal ring gear)
36	WG9003991130	Retaining rings for shafts
37	WG2210100199	Range stop synchronization ring
38	WG9003324824	Needle roller bearing (NA4824X1N/YA)
39	WG2229100114	Wire retaining ring
40	WG2229100072	Pressure plate
41	WG2229100073	bolt
42	WG2210100186	Range block synchronization sliding sleeve
43	WG2214100001	Range shift fork
44	WG2229230010	Insert the inner hole sealing ring of the rear housing of the splitter gear
45	WG2214100041	Range shift fork shaft
46	WG2229100039	Range stop piston
47	WG9003071700	O-ring 26500170 GB3452.1
48	WG2229100040	Range stop piston O-ring
50	WG2220100027	Transmission rear case
51	WG9003336218	Rolling bearing 6218/YA GB/T276
52	WG2203100254	High gear cone hub assembly
53	WG2229100032	Spacer
54	WG9003321820	Rolling bearing 61820 GB/T276
55	AZ2203100181	Planet carrier assembly
56	WG2210100132	Ring gear bracket
57	WG9003991125	Flattened wire retaining rings for holes
58	WG2210100005	Ring gear
59	WG2229100024	Sun gear gasket (rear)
60	WG2210100103	Sun gear
61	Q43378	Flattened wire retaining ring for shaft
62	WG2229100115	Planetary spacer
63	WG2229100007	roller spacer
64	WG2212100001	Planetary axle
