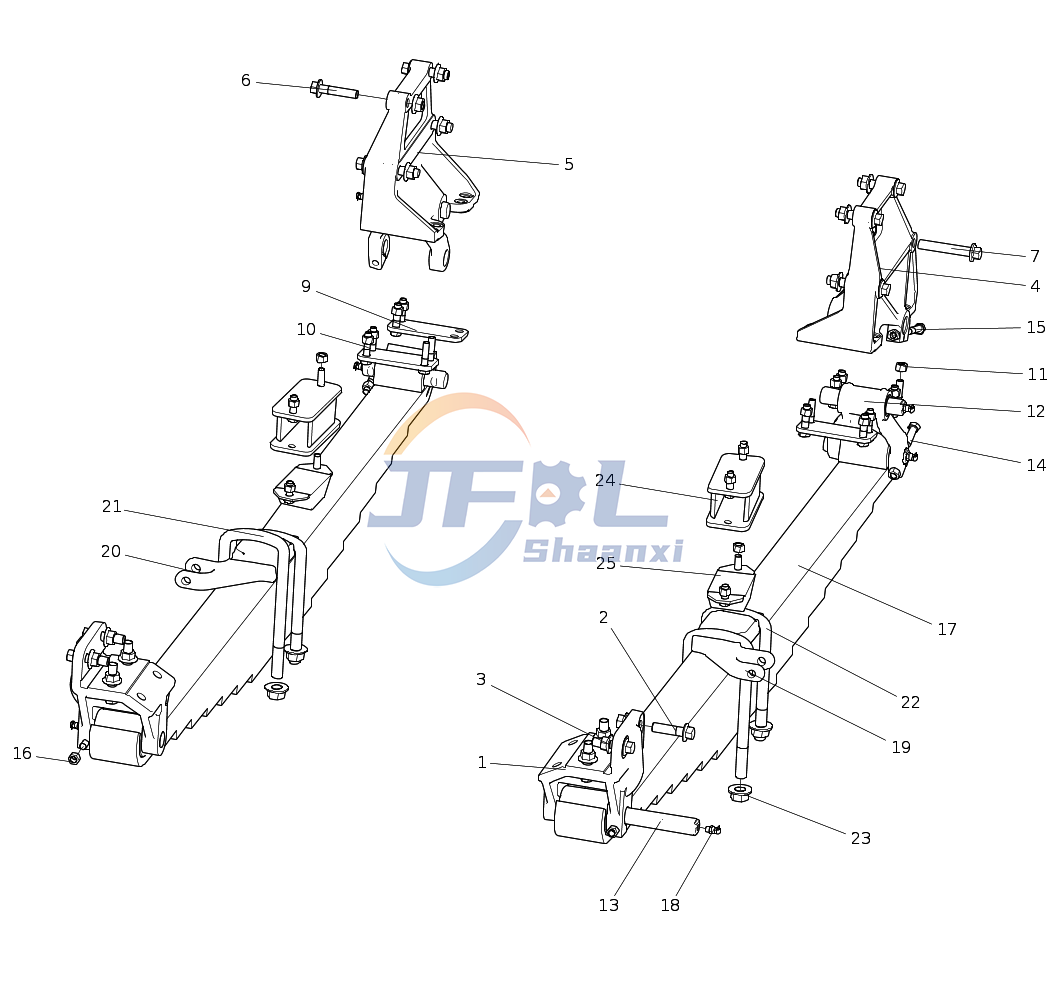

Howo Front And Rear Suspension System AC97255200363 HOWO6X4 cement mixer truck front suspension
| Serial number | Drawing number | Name |
| 1 | WG9725520106 | front spring front bracket |
| 2 | ZQ1811660TF6 | Hexagonal flange toothed bolt M16*1.5 |
| 3 | ZQ32516T13F6 | Hexagonal flange toothed nut M16*1.5 |
| 3 | ZQ32516T13F6 | Hexagonal flange toothed nut M16*1.5 |
| 4 | WG9925520307 | Front spring left rear bracket |
| 5 | WG9925520308 | Front spring right rear bracket |
| 6 | ZQ1811670TF6 | Hexagonal flange toothed bolt M16*1.5 |
| 7 | ZQ18116100TF6 | Hexagonal flange toothed bolt M16*1.5 |
| 8 | WG9114510512 | beam |
| 9 | WG9100520025 | plate |
| 10 | ZQ151B1250 | Hexagon head bolt M12*1.25 |
| 11 | ZQ361B12 | Type 2 hexagonal nut M12*1.25 |
| 12 | WG9725529034 | Front spring lifting lug assembly |
| 13 | WG9100520065 | spring pin |
| 14 | ZQ151B1270TF6 | Hexagon head bolt M12*1.25 |
| 15 | ZQ151B1275TF6 | Hexagon head bolt M12*1.25 |
| 16 | ZQ361B12T13F6 | Type 2 hexagonal nut M12*1.25 |
| 17 | WG9725520144 | Front left leaf spring |
| 18 | AZ9003963022 | Grease nozzle assembly (CM10*1 D71412) |
| 19 | WG9925522138 | Left front spring pressure plate |
| 20 | WG9925522137 | Right front spring pressure plate |
| 21 | AZ9925520029 | Front spring riding bolt |
| 22 | AZ9925520230 | Front spring riding bolt |
| 23 | Q33020T13F3 | All metal hex flange face lock nut |
| 24 | WG9925522107 | Limit bracket |
| 25 | WG9925522111 | Limit block assembly |
| 26 | WG9725520145 | Front right leaf spring |
| 27 | WG1680520050 | washer |
| 28 | ZQ1811435TF6 | Hexagonal flange toothed bolt M14*1.5 |
| 29 | ZQ32514T13F6 | Hexagonal flange toothed nut M14*1.5 |
| 30 | Q2581225T1F3 | Countersunk head screws |
