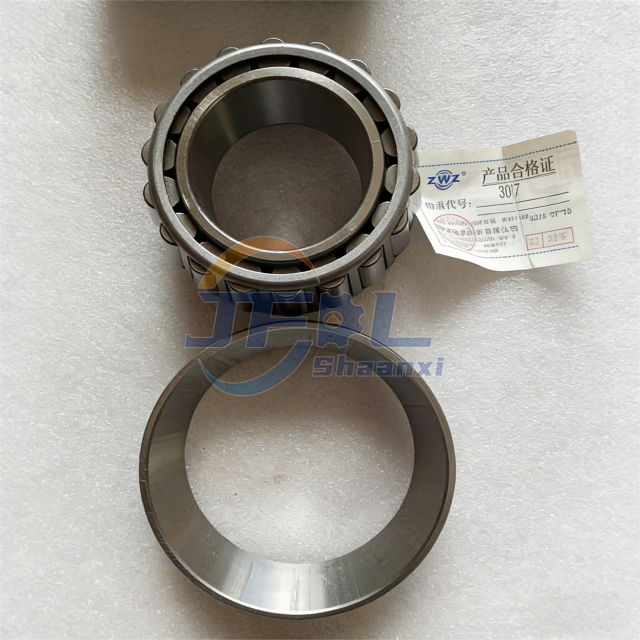

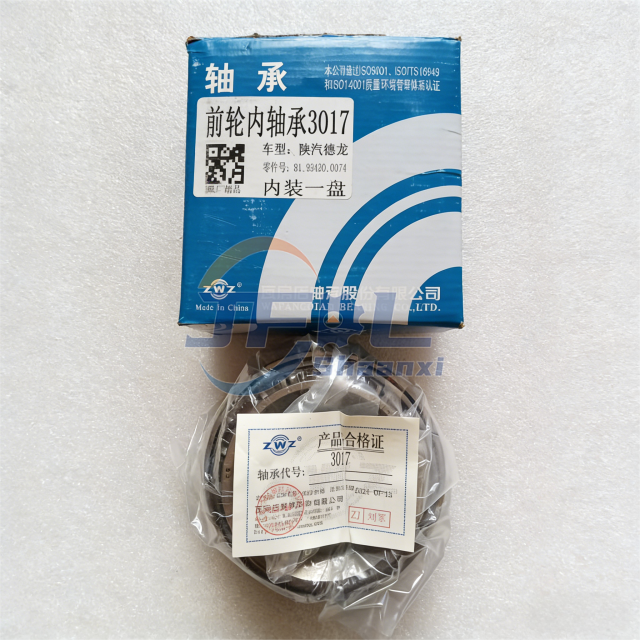

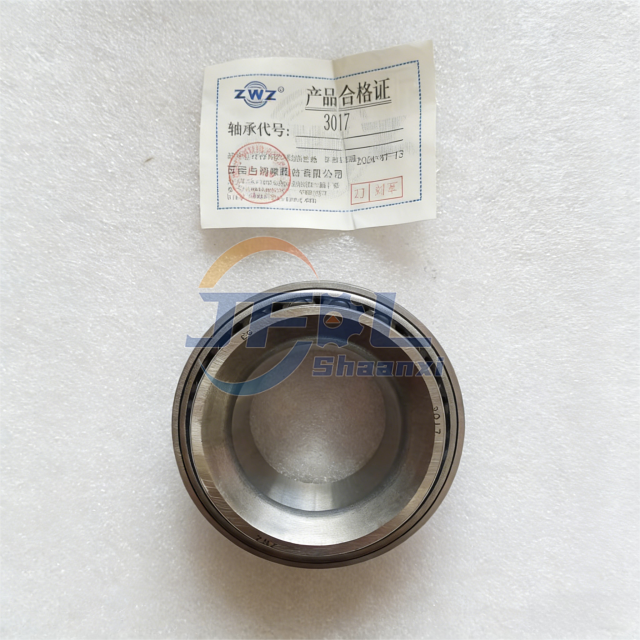

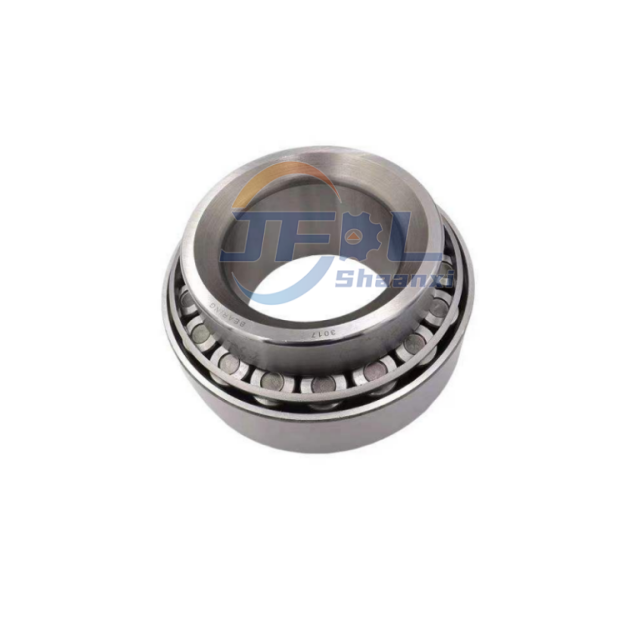

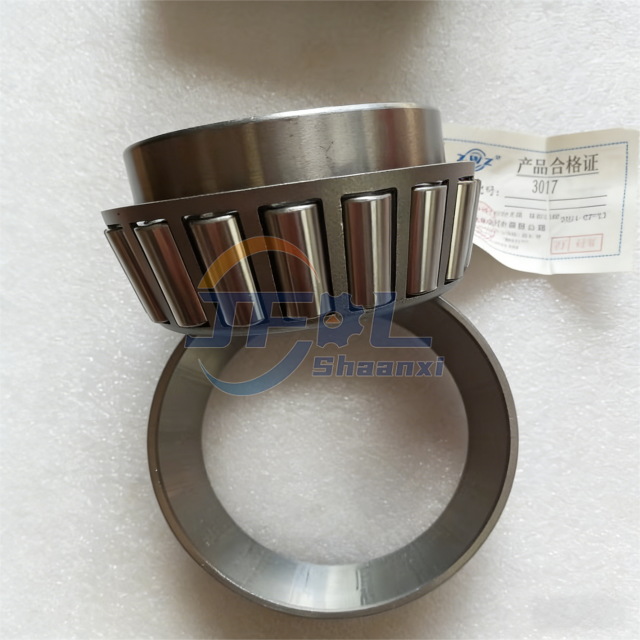

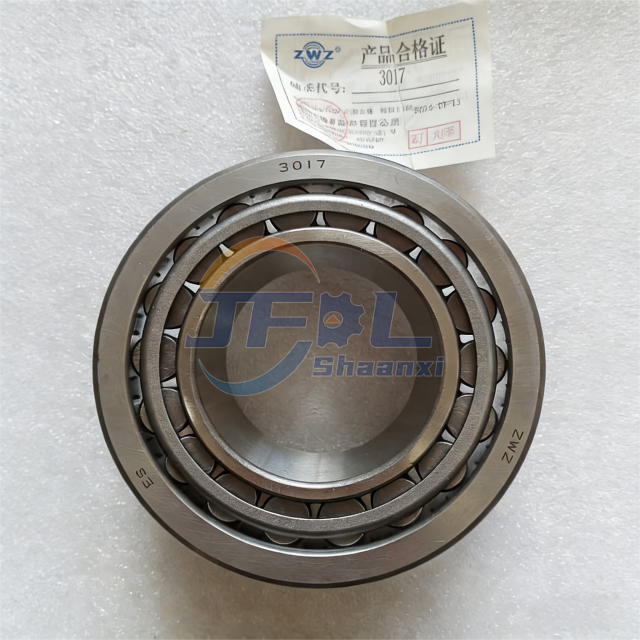

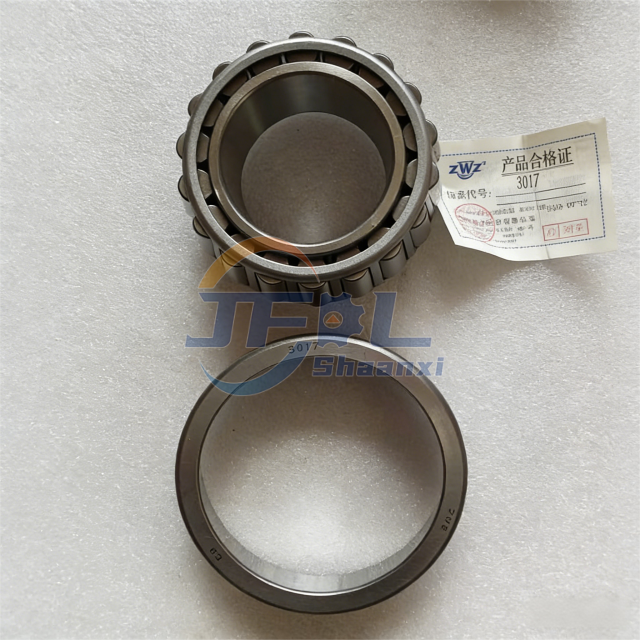

Shacman Delong 7.5T Front Wheel Bearing Front Hub Bearing 81.93420.0074
| Item name: | Front Wheel Bearing | Application: | Truck Transmission Systems |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
 |  |  |
This bearing is a dedicated front wheel inner bearing for shacman Hande 7.5-ton front axle.It is core-compatible with shacman Delong F2000, F3000, New M3000, M3000S and other models. It also fits some year models of Delong X3000 and X5000 equipped with Hande 7.5T drum-type front axle. As the core supporting component of the front wheel hub, it is suitable for all working conditions such as long-distance logistics and engineering heavy load.
| Performance Dimension | Core Parameters & Advantages |
|---|---|
| Basic Specifications | Type: Tapered roller bearing; Corresponding model: 33214/ZXY-3017; Applicable to Hande 7.5T front axle; Inner diameter: 70mm, Outer diameter: 125mm, Thickness: 31mm; Rated dynamic load: 152kN, Rated static load: 206kN, fully meet the load-bearing and braking requirements of heavy-duty truck front wheels |
| Material & Craftsmanship | Made of high-purity bearing steel with quenching treatment; Roller and raceway precision reaches grade P6, featuring high surface smoothness, low friction coefficient, excellent fatigue resistance and wear resistance |
| Load-Bearing & Stability | Can bear heavy radial load and bidirectional axial load, adapted to heavy-duty truck working conditions like heavy-load starting, braking and steering; Runs stably without obvious jitter or abnormal noise, ensuring driving stability |
| Sealing & Durability | Matched with nitrile rubber oil seal, protection class IP54; Effectively prevent dust, water and oil contamination from entering; Service life reaches 300,000 km/2-3 years under normal working conditions, suitable for complex road conditions |
| Installation Compatibility | Precise OE positioning size, 100% matching with wheel hub and steering knuckle; No additional processing required for direct replacement, perfectly compatible with original bearing seat and lock nut |
| Part Number | Parts Name | Core Function | Compatibility |
|---|---|---|---|
| 81.93420.0075 | Front Wheel Outer Bearing (30214) | Cooperate with inner bearing to support front wheel hub and share radial/axial load | OE matched, must be used in pairs with 81.93420.0074 |
| 81.93420.0080 | Front Wheel Hub Oil Seal | Seal the bearing chamber to prevent lubricating grease leakage and impurity intrusion | Installed outside the bearing, it is recommended to replace with inner & outer bearings together |
| 81.93420.0085 | Lock Nut | Fix the axial position of the bearing to prevent loosening during operation | Dedicated for Hande 7.5T front axle, perfectly matched with this inner bearing |
| 81.93420.0090 | Special Bearing Grease | Lubricate bearing rollers and raceways, reduce friction and wear | Special for this bearing, must be refilled when replacing the bearing |
| 81.93420.0100 | Front Wheel Hub End Cover | Protect bearing and oil seal from external impact and dust accumulation | Compatible with Delong F3000 and other models, synergistic protection with wheel hub and bearing |
