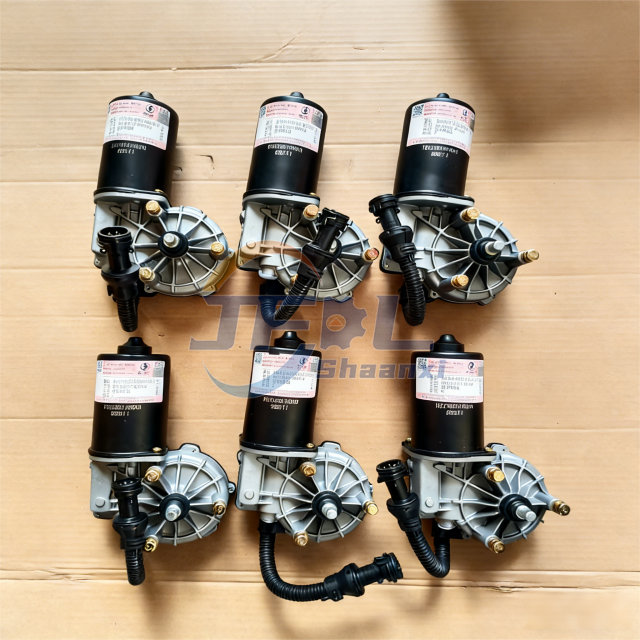

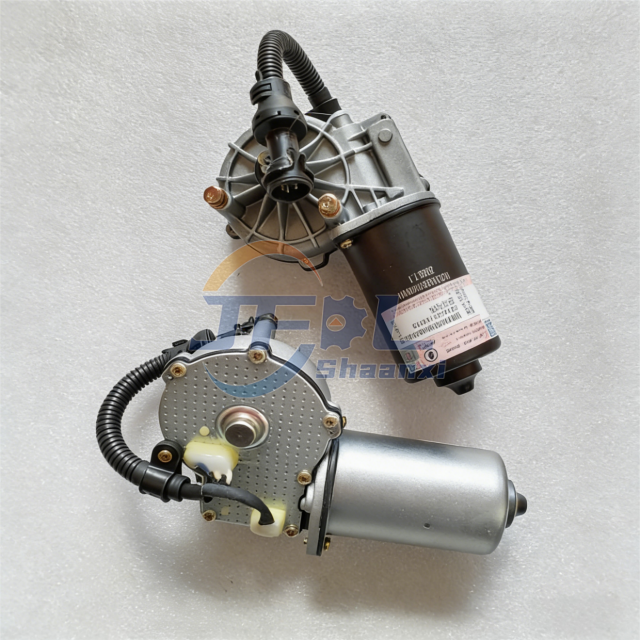

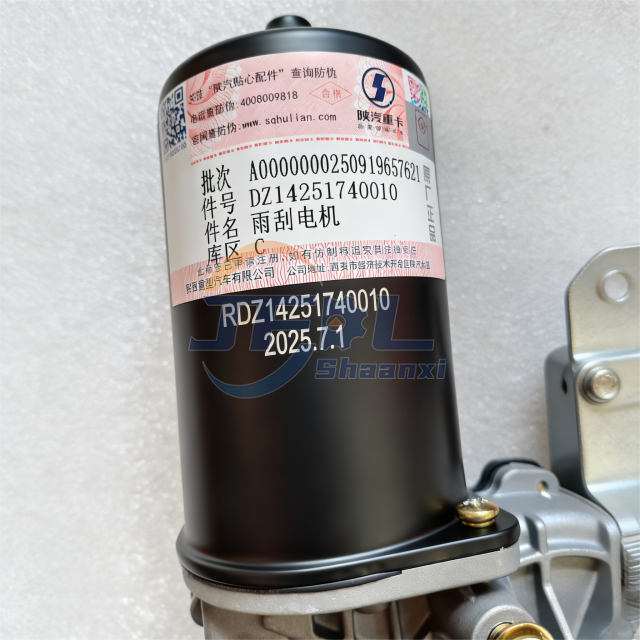

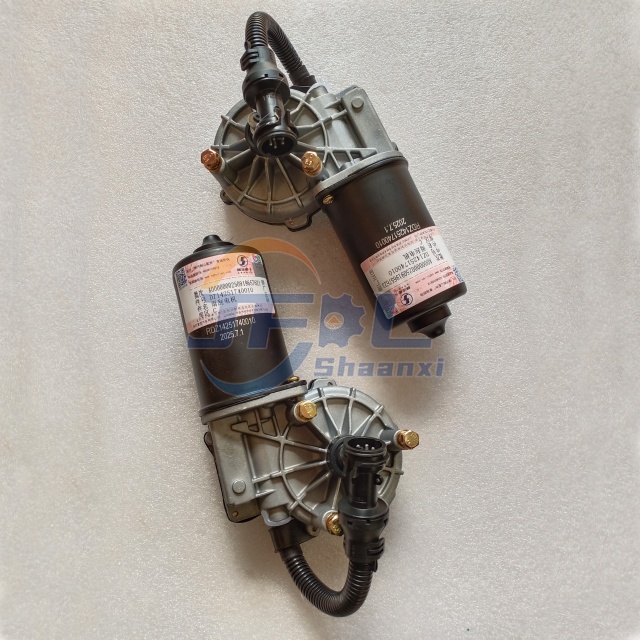

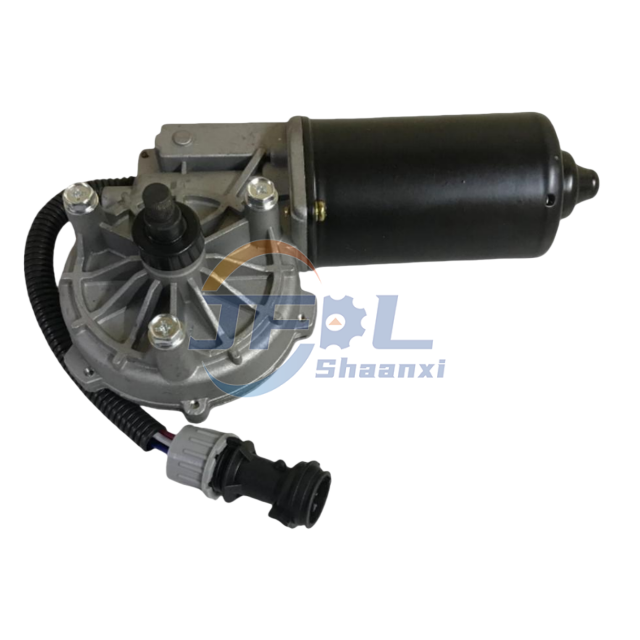

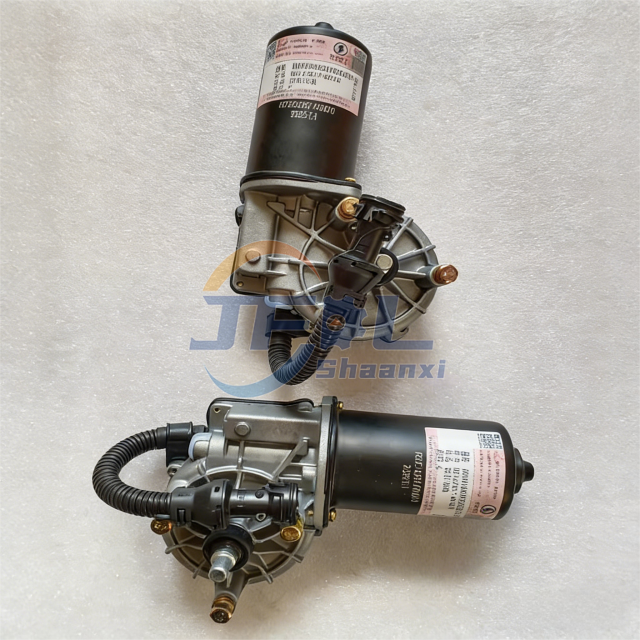

OEM Customization Shacman Wiper Motor DZ14251740010
| Item name: | Wiper Motor | Application: | Truck Transmission Systems |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
 |  |  |
This is an original parts of shacman, mainly compatible with core mainstream models of shacman Delong heavy-duty trucks, including Delong X3000, X5000, X6000 and M3000S. It is also fully compatible with classic models like Delong F3000 and New M3000.
It serves as the core power component of the front windshield wiper system, suitable for all working conditions such as long-distance logistics, engineering transportation and cold chain transportation.
| Performance Dimension | Core Parameters & Advantages |
|---|---|
| Basic Electrical Specifications | Rated voltage 24V (heavy-duty truck standard), rated power 80W; stable torque output, supports 2-speed regulation (low/high speed), fully compatible with the original vehicle control system |
| Protection & Weather Resistance | IP54 waterproof and dustproof sealed shell, withstanding extreme temperature range from -40℃ to 85℃; adapts to harsh working conditions like high-temperature exposure, low-temperature freezing, muddy dust, free from short circuit or jamming faults |
| Durability | Copper core coil + high-precision gear transmission, low running noise, minimal wear and no obvious abnormal sound; OEM craftsmanship ensures service life up to 3~5 years or 500,000 km under normal working conditions |
| Installation Compatibility | Precisely matched with wiper link interfaces of corresponding models, no extra modification required for direct replacement, seamless compatibility with the original wiper system |
| OEM Part Number | Accessory Name | Core Function | Compatibility |
|---|---|---|---|
| DZ14251740011 | Wiper Motor Bracket | Fix the motor body to ensure accurate installation positioning | OEM matched, exclusive for motor DZ14251740010 |
| DZ14251740012 | Wiper Linkage Assembly | Transmit motor power to drive synchronous swing of wiper arms | Key transmission part connecting motor and wiper arms |
| DZ14251740013 | Wiper Blade (Framed/Frame-less) | Directly wipe front windshield to remove rain and dust | Need to match the size of corresponding models, recommended to replace with motor in the same batch |
| DZ14251740015 | Wiper Arm Assembly | Fix wiper blades to ensure uniform wiping angle and pressure | Linkage with linkage assembly, no wiping blind area guaranteed |
| DZ14251740014 | Side Window Glass Seal Strip | Assist to improve cab tightness and reduce rain leakage | Compatible with X3000 and other models, cooperate with wiper system to ensure clear vision |
