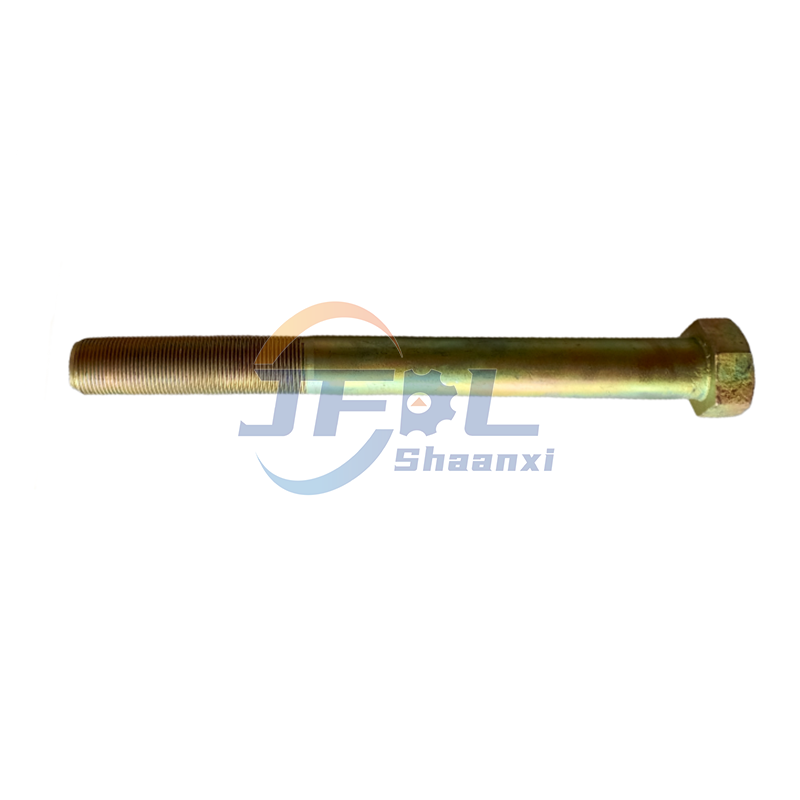

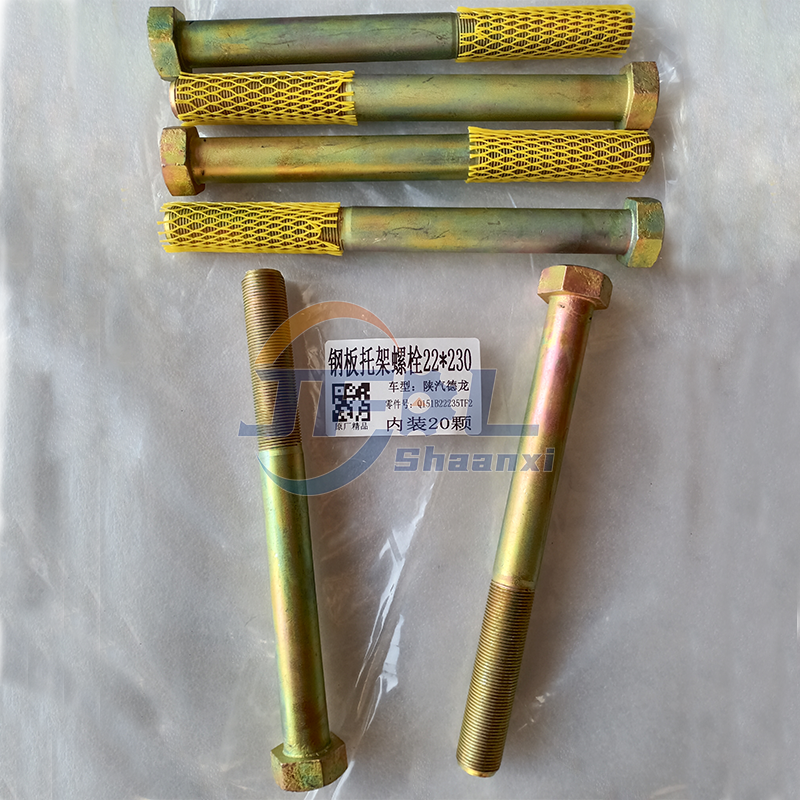

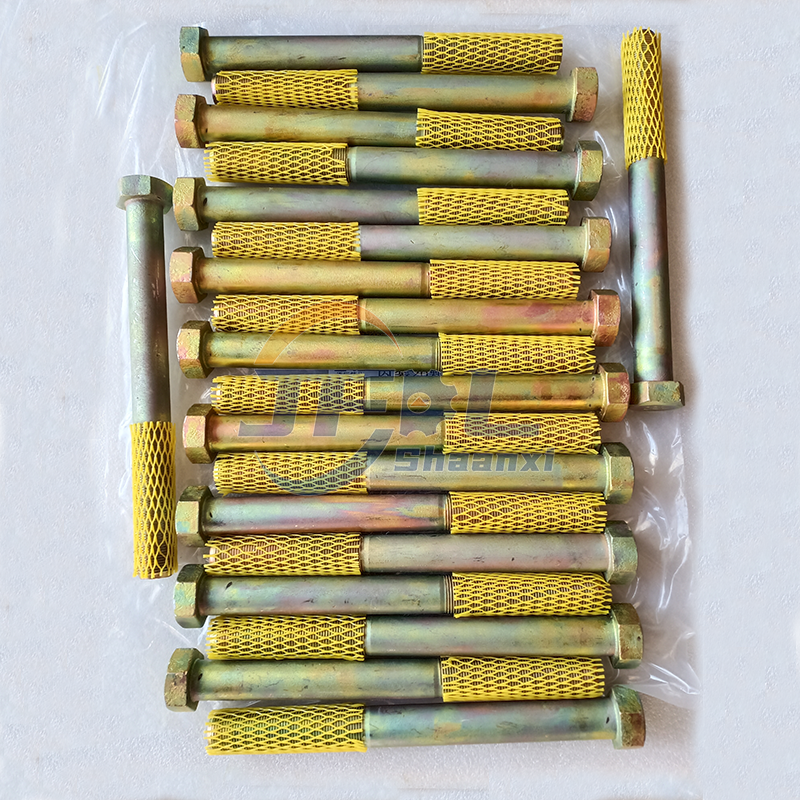

Shacman Delong X3000, M3000 Steel Plate Bracket Bolts/small Hexagonal Head Bolts Q151B22235TF2
| Item name: | small Hexagonal Head Bolts | Application: | Truck Steer Systems |
| MOQ: | 1 pc | Sample: | Available |
| Terms: | EXW, FOB, DAP,DDP | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzhou |
 |  |
This M22×235mm bolt is primarily used in medium and heavy-duty commercial vehicles with rigid axle leaf spring suspension systems.
| Brand | Vehicle Model Series | Application Notes |
|---|---|---|
| FAW Jiefang | J6, J7 | Rear axle suspension mounting |
| Dongfeng | Tianlong, Tianjin, D310 | Chassis hanger bracket fastening |
| Foton Auman | GTL, EST, ADX | Rear suspension assembly |
| Shacman | X3000, L3000 | Heavy-duty frame connection |
| Sinotruk (HOWO/Sitrak) | HOWO, SITRAK | High-load engineering applications |
| North Benz | V3, NG80 | Dump truck & logistics vehicle |
| JAC格尔发 (JAC Kaili) | K7, HFC series | Medium-heavy truck chassis |
| Yutong / King Long / Zhongtong | Large Passenger Buses | Rear suspension support points |
⚠️ Always verify compatibility based on year, model, axle position (front/rear), and OEM specifications.
| Feature | Description |
|---|---|
| High Load Capacity | Designed to withstand high tensile, shear, and impact loads under heavy-duty operation. |
| Fatigue Resistance | Resists metal fatigue caused by long-term vibration and dynamic road conditions. |
| Anti-loosening Compatibility | Used with lock nuts and spring washers to prevent loosening due to chassis vibrations. |
| Corrosion Protection | Color-zinc plating offers moderate rust resistance suitable for underbody environments. |
| Precise Fit & Stability | Ensures secure alignment between leaf spring pack and frame bracket for safe suspension performance. |
Below is a complete list of commonly used related parts that work together with the Q151B22235TF2 bolt, including standardized part numbers according to GB/T or QC/T standards.
| No. | Component Name | Recommended Part Number | Standard | Notes |
|---|---|---|---|---|
| 1 | U-Bolt (Leaf Spring Clamp) | Q150B22×235 or GB/T 5669 M22×235 | JB/T 4185 / GB/T 5669 | Typically two per assembly; secures spring pack |
| 2 | Hex Nut | GB/T 6170 M22 or Q401B22 | GB/T 6170 / QC/T 622 | Grade 8 or 10 recommended |
| 3 | Flat Washer (Thick Type) | GB/T 97.1 - 22 or Q500B22 | GB/T 97.1 / QC/T 623 | Inner diameter: 22mm; protects mounting surface |
| 4 | Spring Lock Washer | GB/T 93 - 22 or Q521B22 | GB/T 93 / QC/T 624 | Prevents self-loosening under vibration |
| 5 | Top Plate (Clamp Plate / Upper Cover) | YZP-2235 or OEM-specific code | Manufacturer Standard | Steel plate compressing leaf spring bundle |
| 6 | Suspension Hanger Bracket | DLY-M22 or model-specific | Custom/OEM | Frame-mounted support for leaf spring eye end |
| 7 | Complete Bolt Kit (Set) | Set: Q151B22235 + Q150B22×235 + Nut + Washers | Packaged Kit | Ideal for full replacement during maintenance |
