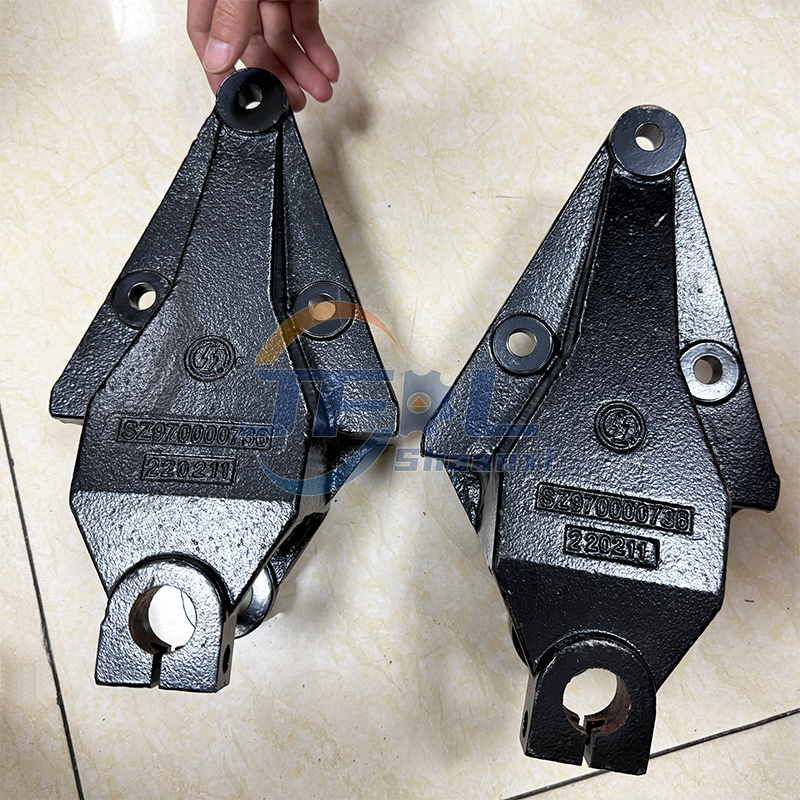

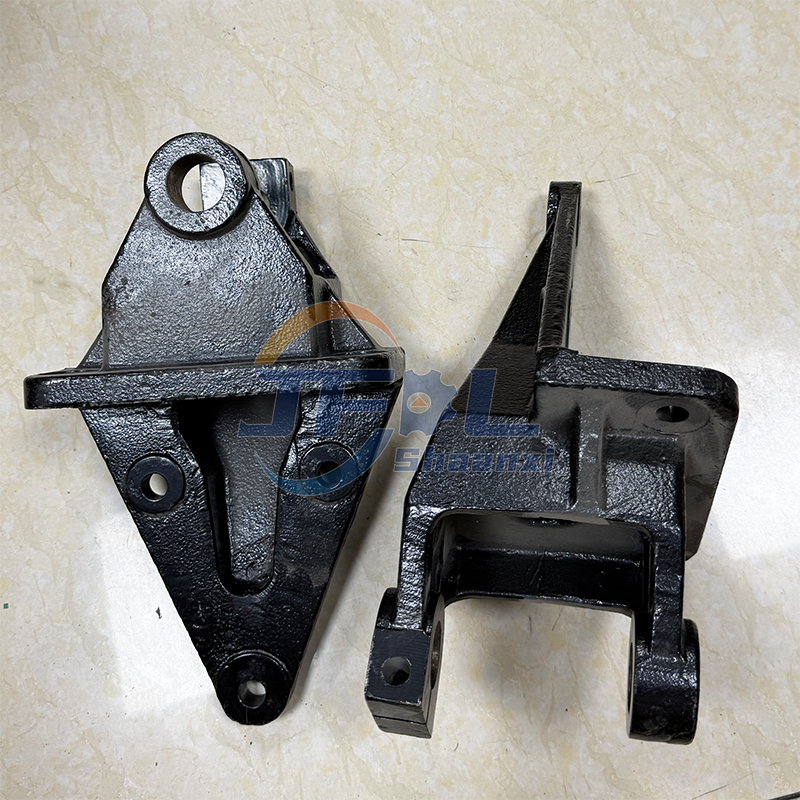

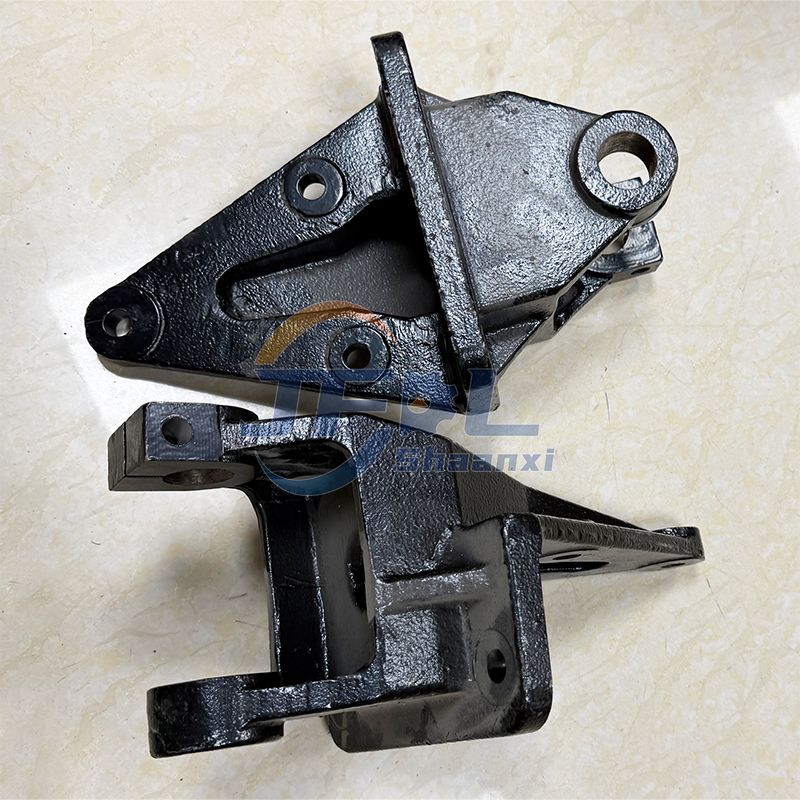

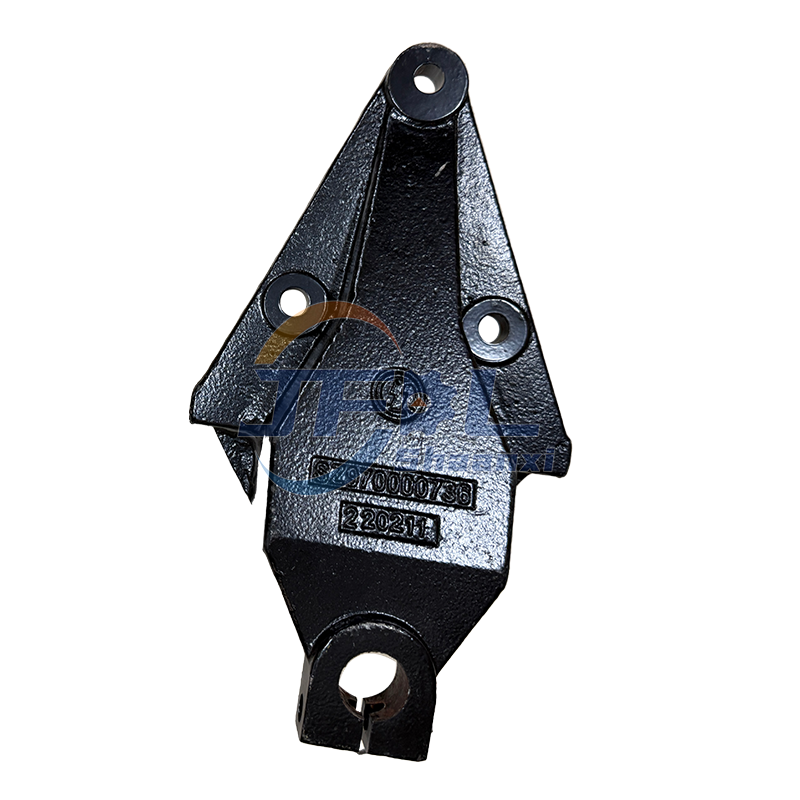

SHACMAN Truck Parts Shacman Delong F3000 M3000 X3000 SZ970000736 Front Spring Left Front Bracket
| Attribute | Description |
|---|---|
| Part Number | SZ970000736 |
| Part Name | Front Leaf Spring Front Bracket (also known as: Front Spring Eye Bracket, Suspension Front Mounting Bracket) |
| OEM Manufacturer | Shaanxi Automobile Group (Shacman) |
| Primary Application | Front suspension system of Shacman Delong F3000, M3000, X3000 series heavy-duty trucks |
| Function | Acts as a critical mounting and pivot point for the front leaf spring; absorbs road shocks and transmits suspension forces to the chassis frame |
| Type | Heavy-duty forged/machined steel bracket with rubber or polyurethane bushing (in some configurations) |
| Parameter | Specification |
|---|---|
| Material | High-strength alloy steel (typically 45# carbon steel or equivalent), heat-treated for durability |
| Surface Treatment | Painted or coated for corrosion resistance; some versions feature galvanized or phosphated finish |
| Design Type | U-shaped or clevis-style bracket with two mounting holes for bolt-through assembly |
| Mounting Configuration | Designed to secure the front eye end of the longitudinal leaf spring to the truck chassis frame |
| Bushing Compatibility | Often used with a rubber or PU (polyurethane) bushing to allow controlled articulation and reduce vibration |
| Load Capacity | Engineered to withstand dynamic loads up to 8–12 tons depending on axle rating and vehicle configuration |
| Weight | Approx. 3.0 – 4.5 kg per unit |
| Dimensions (Approx.) | • Length: 220–250 mm • Width (U-opening): 85–95 mm • Thickness: 20–25 mm • Hole center distance: ~180 mm (varies slightly by model) |
| Hole Diameter | Typically 22–24 mm (for M20 or M22 bolts) |
| | |
