Howo Truck Electrical System System Prats AC97257640104 HOWO Battery Box (installed on The Right Side/three Air Reservoirs/rear Switch)

Howo Truck Electrical System Prats AC97257640104 HOWO Battery Box (installed on The Right Side/three Air Reservoirs/rear Switch)

Model:
AZ9100760108 WG1682110021 AZ9100760102 ZQ1811450TF6 ZQ32514T13F6 WG9925760180 ZQ1811445TF6
Brand:
HOWO

Availability:

Quantity:



Inquire Add to Basket

Product Description

Introduction1

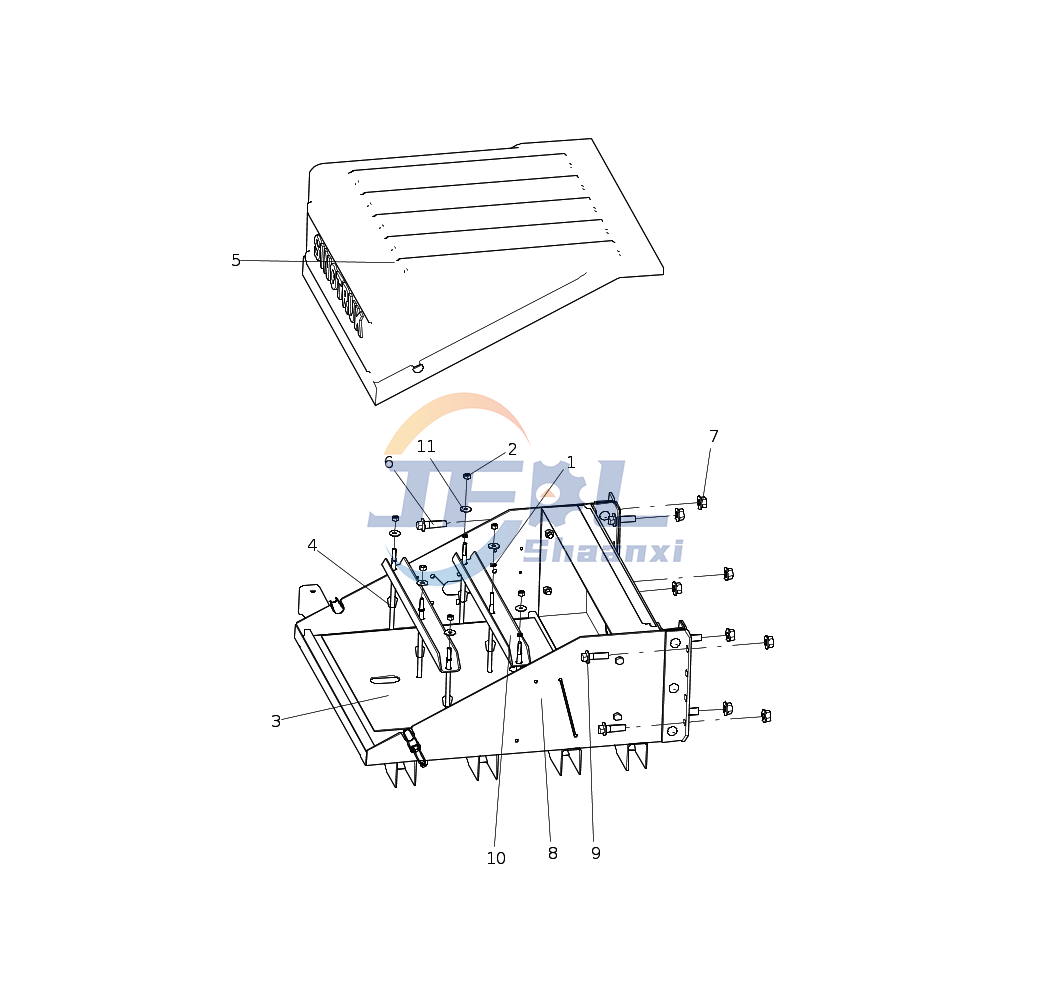

Howo Truck Electrical System Prats AC97257640104 HOWO Battery Box (installed on The Right Side/three Air Reservoirs/rear Switch)

Serial Number	Drawing number	Name
1	Q40308	spring washer
2	Q340B08	Type 1 hexagonal nut
3	AZ9100760108	Lower rubber pad
4	WG1682110021	Rubber buffer block
5	AZ9100760102	battery box cover
6	ZQ1811450TF6	Hexagonal flange toothed bolt M14*1.5
7	ZQ32514T13F6	Hexagonal flange toothed nut M14*1.5
8	WG9925760180	New battery box assembly (φ275/3)
9	ZQ1811445TF6	Hexagonal flange toothed bolt M14*1.5
10	WG9100760104	Pressure plate
11	Q40208	Large washer
12	WG9928770010	Protection strip (48cm)
