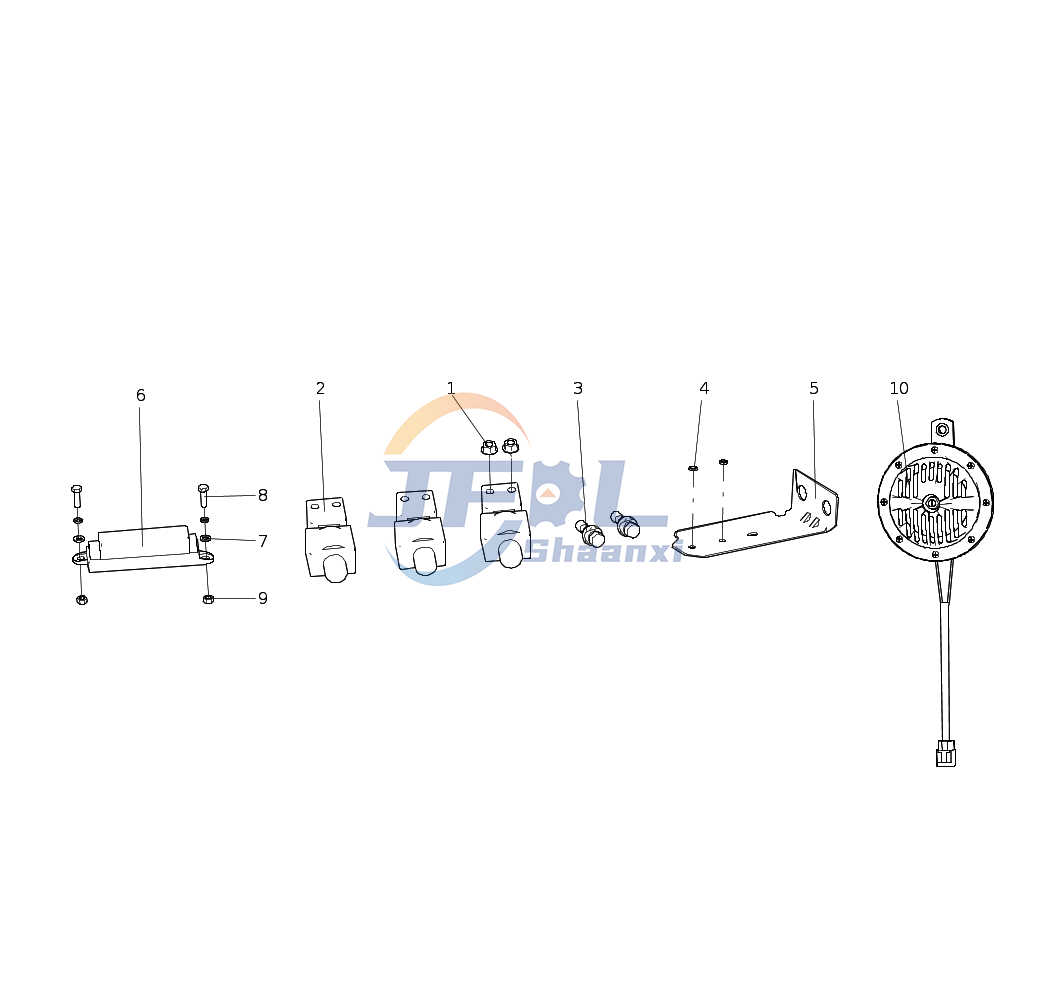

Howo Truck Electrical System Prats AC97217180203 Chassis electrical appliances (3 valves)
| Serial Number | Drawing number | Name |
| 1 | ZQ32008 | Hexagonal flange nut M8 |
| 1 | ZQ32008 | Hexagonal flange nut M8 |
| 2 | WG9719710004 | Solenoid valve (P99 connector) |
| 3 | WG9727710002 | Electronic air pressure sensor |
| 4 | Q40306 | spring washer |
| 4 | Q40306 | spring washer |
| 5 | WG9725710004 | Bracket |
| 6 | WG9725580006 | 100A fuse |
| 7 | Q40106 | Flat Washers |
| 8 | Q150B0620 | Hexagon head bolts |
| 9 | Q340B06 | Type I hexagonal nut |
| 10 | WG9718710002 | Basin shaped electric horn |
| 11 | ZQ1840616 | Hexagonal flange bolt M6 |
| 12 | Q1460825 | Hex head bolts, spring washers and flat washers assemblies |
| 13 | Q40206 | Large washer |
| 14 | WG9100710004 | Air pressure signal light switch |
| 15 | Q2140620F31 | Cross recessed pan head screws |
| 16 | Q150B08190 | Hexagon head bolts (effective thread length>35mm) |
| 17 | WG9725580086 | lead seal |
| 18 | 190000810930 | lead sealing line |
Howo Truck Electrical System Prats AC97217180203 Chassis electrical appliances (3 valves)
| Serial Number | Drawing number | Name |
| 1 | ZQ32008 | Hexagonal flange nut M8 |
| 1 | ZQ32008 | Hexagonal flange nut M8 |
| 2 | WG9719710004 | Solenoid valve (P99 connector) |
| 3 | WG9727710002 | Electronic air pressure sensor |
| 4 | Q40306 | spring washer |
| 4 | Q40306 | spring washer |
| 5 | WG9725710004 | Bracket |
| 6 | WG9725580006 | 100A fuse |
| 7 | Q40106 | Flat Washers |
| 8 | Q150B0620 | Hexagon head bolts |
| 9 | Q340B06 | Type I hexagonal nut |
| 10 | WG9718710002 | Basin shaped electric horn |
| 11 | ZQ1840616 | Hexagonal flange bolt M6 |
| 12 | Q1460825 | Hex head bolts, spring washers and flat washers assemblies |
| 13 | Q40206 | Large washer |
| 14 | WG9100710004 | Air pressure signal light switch |
| 15 | Q2140620F31 | Cross recessed pan head screws |
| 16 | Q150B08190 | Hexagon head bolts (effective thread length>35mm) |
| 17 | WG9725580086 | lead seal |
| 18 | 190000810930 | lead sealing line |
