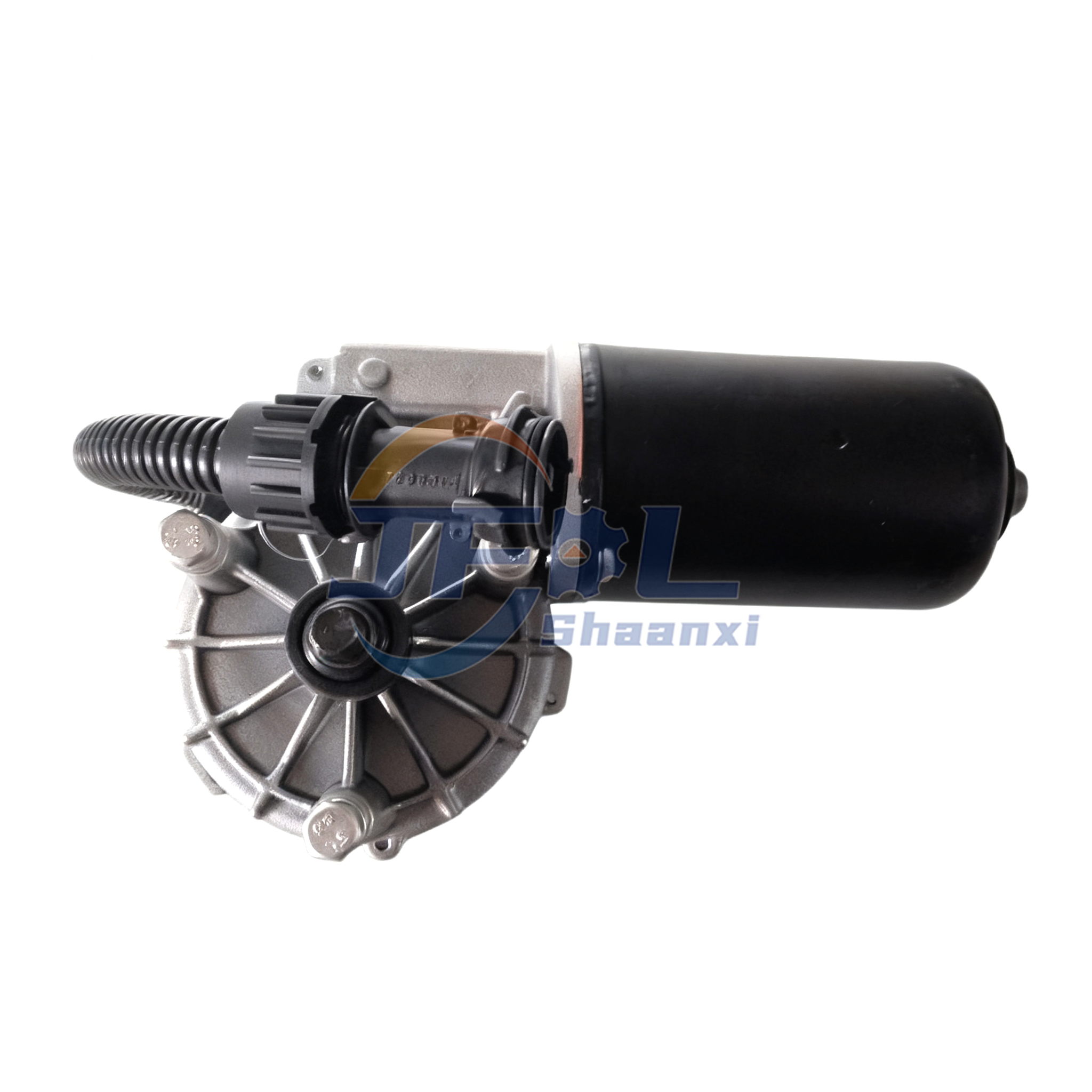

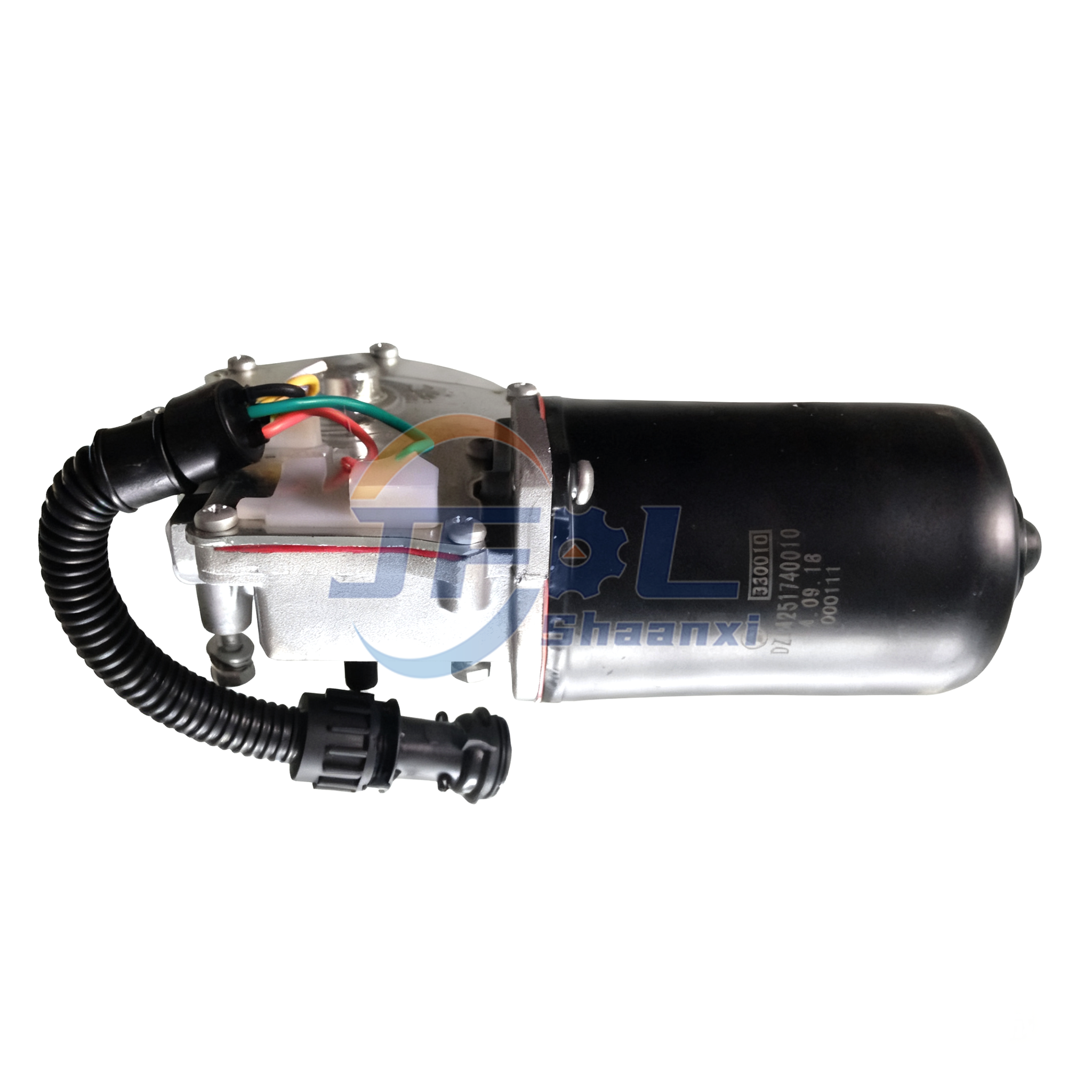

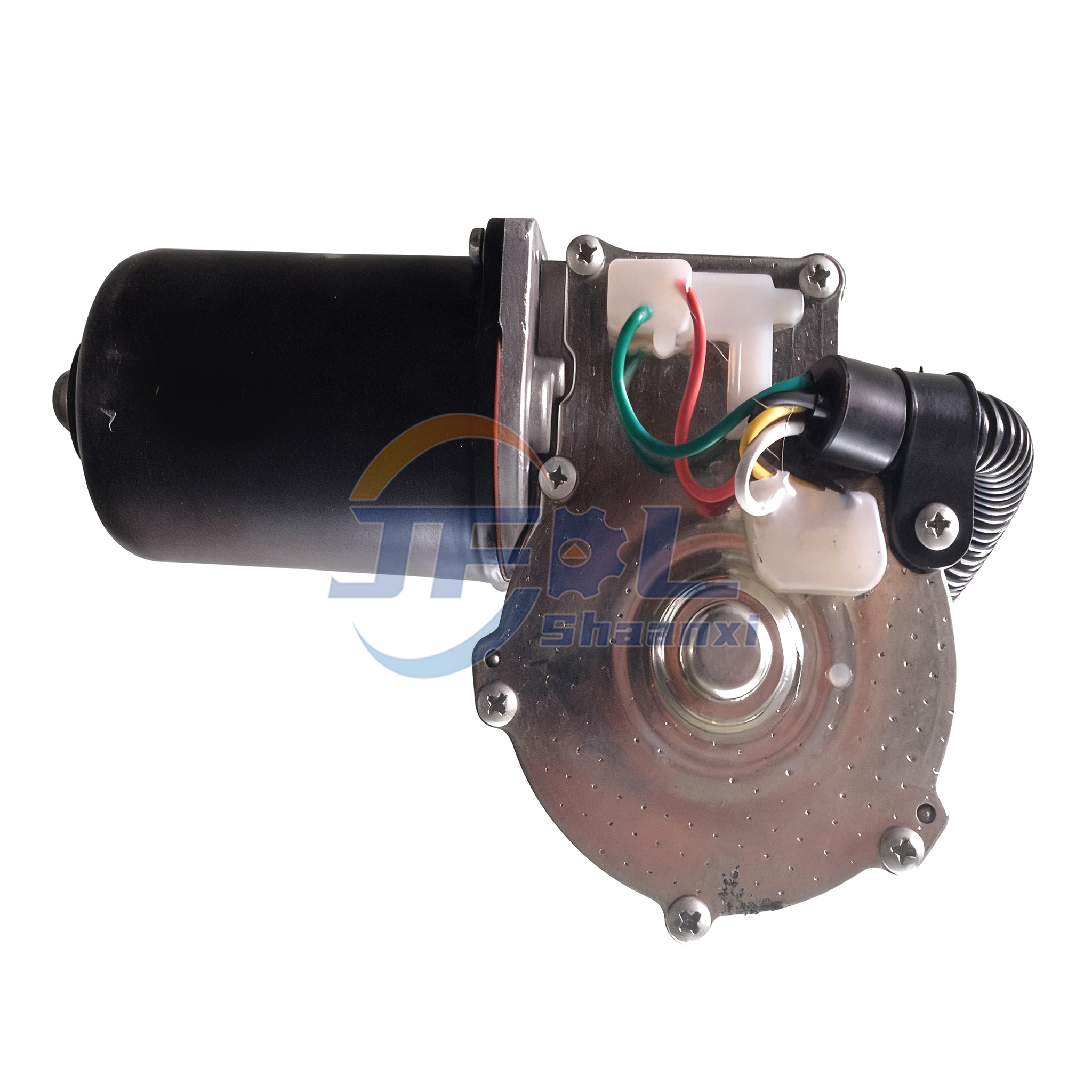

SHACMAN X3000 Light Truck Parts Wiper Motor 24V DZ14251740010
| | |
The DZ14251740010 is an equipment manufacturer (OEM) wiper motor designed for heavy-duty commercial vehicles manufactured by Shaanxi Automobile Group (Shacman). It ensures reliable windshield clearing in adverse weather conditions such as rain, snow, and dust, contributing to driver visibility and operational safety.
| Attribute | Description |
|---|---|
| Part Name | Wiper Motor |
| Brand | Shacman (Shaanxi) |
| OEM Part Number | DZ14251740010 |
| Type | Brushed DC Electric Motor |
| Application | Heavy-Duty Trucks – Cab-Over & Conventional Models |
| Genuine Part | Yes (Original Shacman Spare Part) |
| Quality Standard | OEM Quality, 100% Tested, Compliant with ISO9001 |
| Parameter | Value |
|---|---|
| Voltage | 24V DC (Standard for Commercial Trucks) |
| Connector Type | 5-Pin (5PIN) Electrical Plug |
| Motor Type | Permanent Magnet DC Motor (Brushed) |
| Speed Settings | Dual-Speed: Low Speed & High Speed |
| No-Load Speed | - Low Speed: ~35 RPM - High Speed: ~50 RPM (approximate) |
| Rated Power Consumption | 30–60 Watts |
| Operating Current | 1.5A – 3.5A (under normal load) |
| Stall/Max Current | Up to 8–10A (during overload or ice resistance) |
| Duty Cycle | Intermittent (S2 duty type) |
| Auto-Park Function | Yes (Automatically returns to rest position when turned off) |
| Protection Rating | IP65 (Dust-tight & protected against water jets) |
| Housing Material | Reinforced ABS + Metal Gearbox |
| Weight | Approx. 1.8 kg (net), 2.2 kg (gross) |
| Mounting Type | Flange Mount (Bolt-on design) |
This wiper motor is specifically engineered for use on various Shacman heavy-duty truck platforms, including:
Shacman F2000 Series
Shacman F3000 Series
Shacman M3000 Series
Shacman X3000 Series
(Including variants: Tractor Units, Dump Trucks, Cargo Trucks, Refrigerated Transporters)
✅ Note: Due to platform sharing across Shacman models, this motor has high interchangeability among these series. Always verify connector style and mounting dimensions before replacement.
Reliable Operation: Ensures consistent windshield clearance under all weather conditions.
Dual-Speed Control: Supports low-speed (intermittent/wiper delay) and high-speed wiping modes.
High Durability: Built with corrosion-resistant materials and sealed bearings to withstand harsh environments.
Smooth & Quiet Running: Optimized gear train reduces noise and vibration.
Plug-and-Play Design: Direct replacement with factory harness and linkage system; no modification required.
Rain Sensor Ready: Compatible with advanced wiper control systems (on equipped models).
Thermal Protection: Internal thermal fuse prevents burnout during prolonged overloads.
While DZ14251740010 is the primary OEM number, it may also be listed under the following reference numbers in aftermarket or distributor catalogs:
| Type | Number |
|---|---|
| OEM Number | DZ14251740010 |
| Shacman Internal Code | SX4B.142517.40010 / SX4B14251740010 |
| Aftermarket Equivalent | WM-SX10 / SM-WM1425 |
| Universal Fitment Code | Suitable for Bosch-type 24V dual-speed motors (e.g., 0 986 YR3 03X – adapter may be needed) |
| EAN/UPC (Sample) | Varies by packaging (check supplier label) |
Tip: When searching online or in parts databases, use keywords like "DZ14251740010 wiper motor", "Shacman F3000 windshield motor", or "24V 5PIN truck wiper motor".
To ensure safe and long-lasting performance, follow these guidelines:
Voltage Compatibility
→ Confirm your vehicle uses a 24V electrical system (standard for most Chinese/European heavy trucks). Do not install on 12V systems.
Electrical Protection
→ Ensure the correct fuse rating (typically 15A–20A) is used in the wiper circuit to prevent wire damage or fire risk.
Avoid Mechanical Overload
→ Never operate the wipers on dry glass, thick ice, or snow-covered windshields. Clear debris first to prevent motor strain.
Correct Installation Sequence
→ Install the wiper arms in the correct park position to ensure proper return-to-home function. Misalignment can cause erratic behavior.
Sealing & Waterproofing
→ Inspect rubber gasket and housing seals during installation. A damaged seal can allow moisture ingress, leading to short circuits.
Wiring Check
→ Verify that the 5-pin connector matches the original pinout:
Pin 1: Ground (-)
Pin 2: Power (24V+)
Pin 3: Low Speed Signal
Pin 4: High Speed Signal
Pin 5: Auto-Park / Feedback Signal
Test Before Final Assembly
→ Energize the motor off-car or after partial installation to confirm speed settings and auto-stop function.
Maintenance Tips
→ Periodically inspect wiper linkage for binding or rust. → Replace worn wiper blades to reduce load on the motor.
Temperature Range: -40°C to +85°C
Humidity: High resistance to condensation and spray water
Dusty/Salty Conditions: Ideal for construction sites, mining areas, coastal regions
All-Weather Use: Rain, snow, sleet, fog, sandstorms
Package Contents: 1 x Wiper Motor Unit
Labeling: Original Shacman packaging with barcode, part number, manufacturing date
Warranty: 12 months from date of purchase (subject to terms; excludes physical damage or misuse)
Origin: Xi’an, Shaanxi Province, China
The Shacman Wiper Motor DZ14251740010 is a high-reliability, OEM-grade component essential for maintaining visibility and safety in heavy-duty truck operations. With robust construction, dual-speed functionality, and full compatibility across Shacman’s core F/M/X series, it represents a trusted solution for fleet operators and repair workshops alike.
