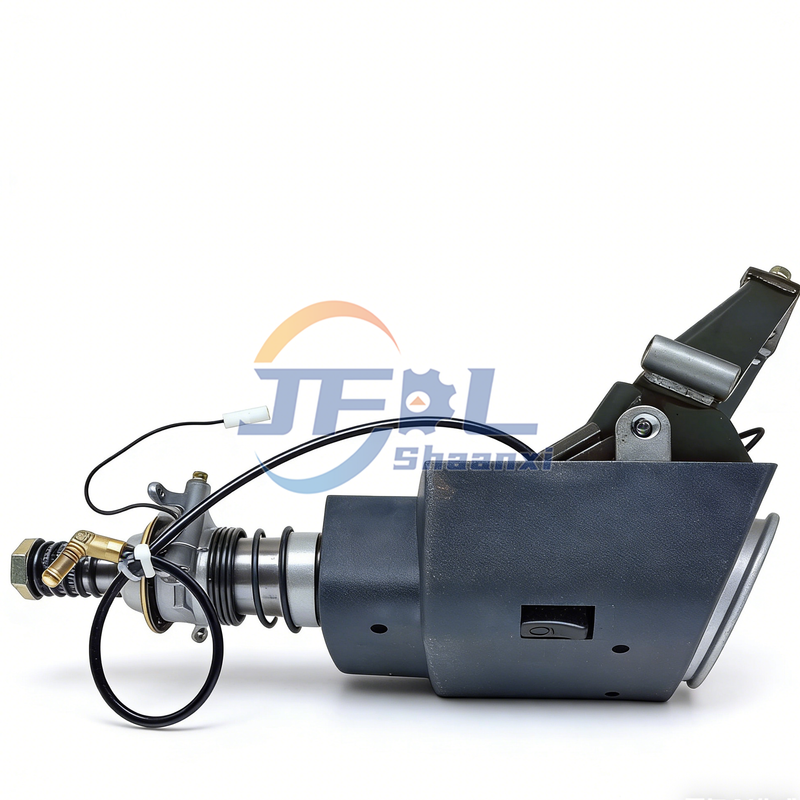

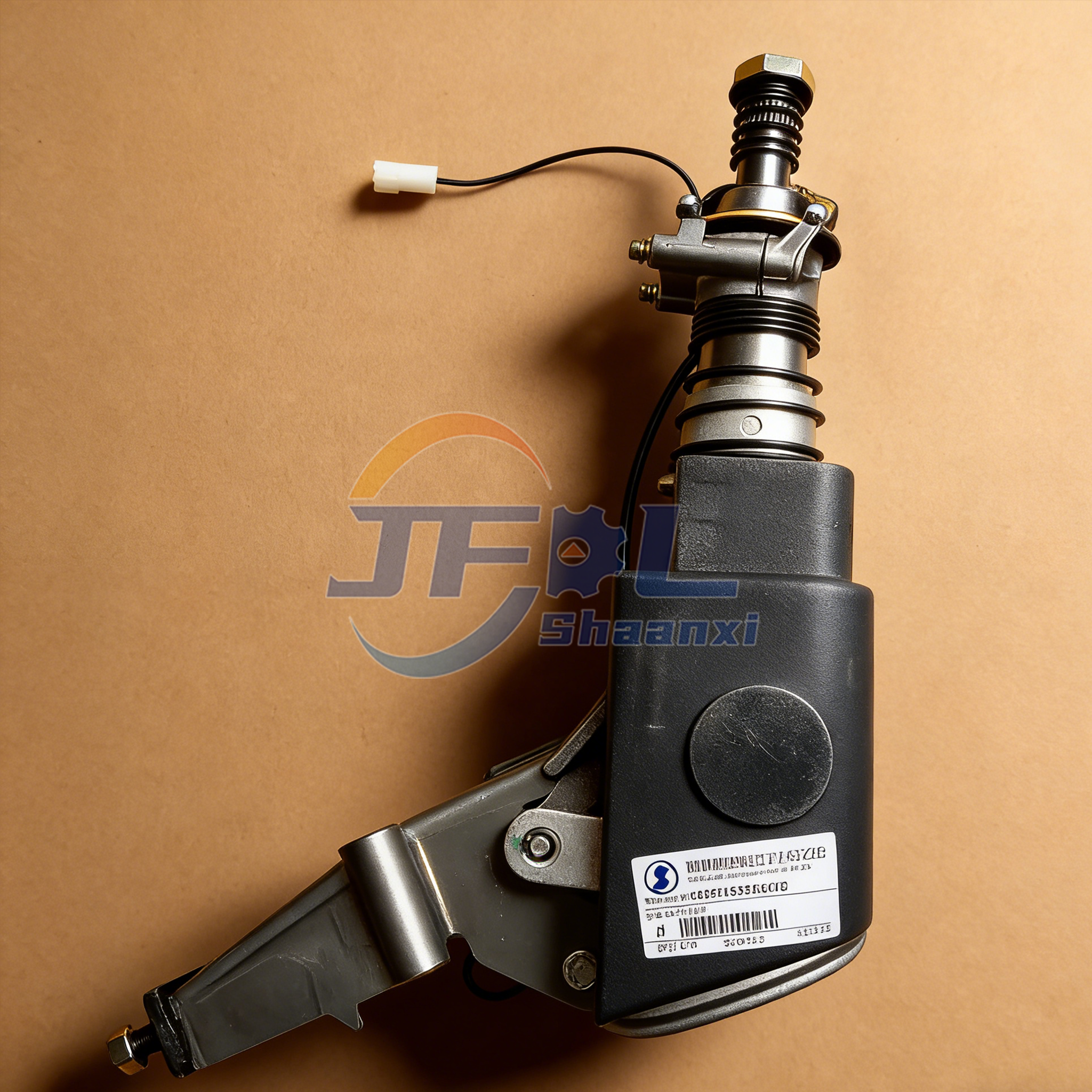

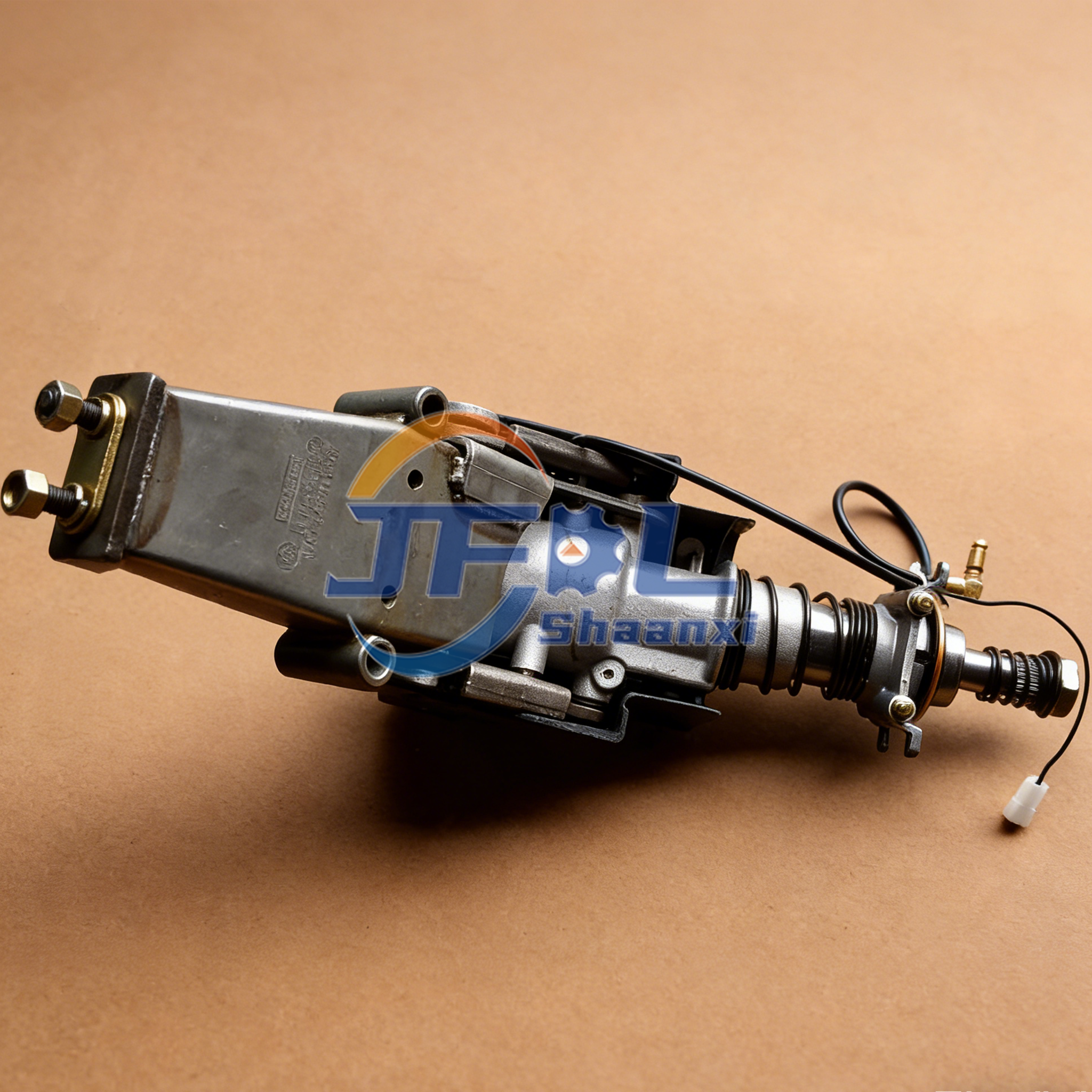

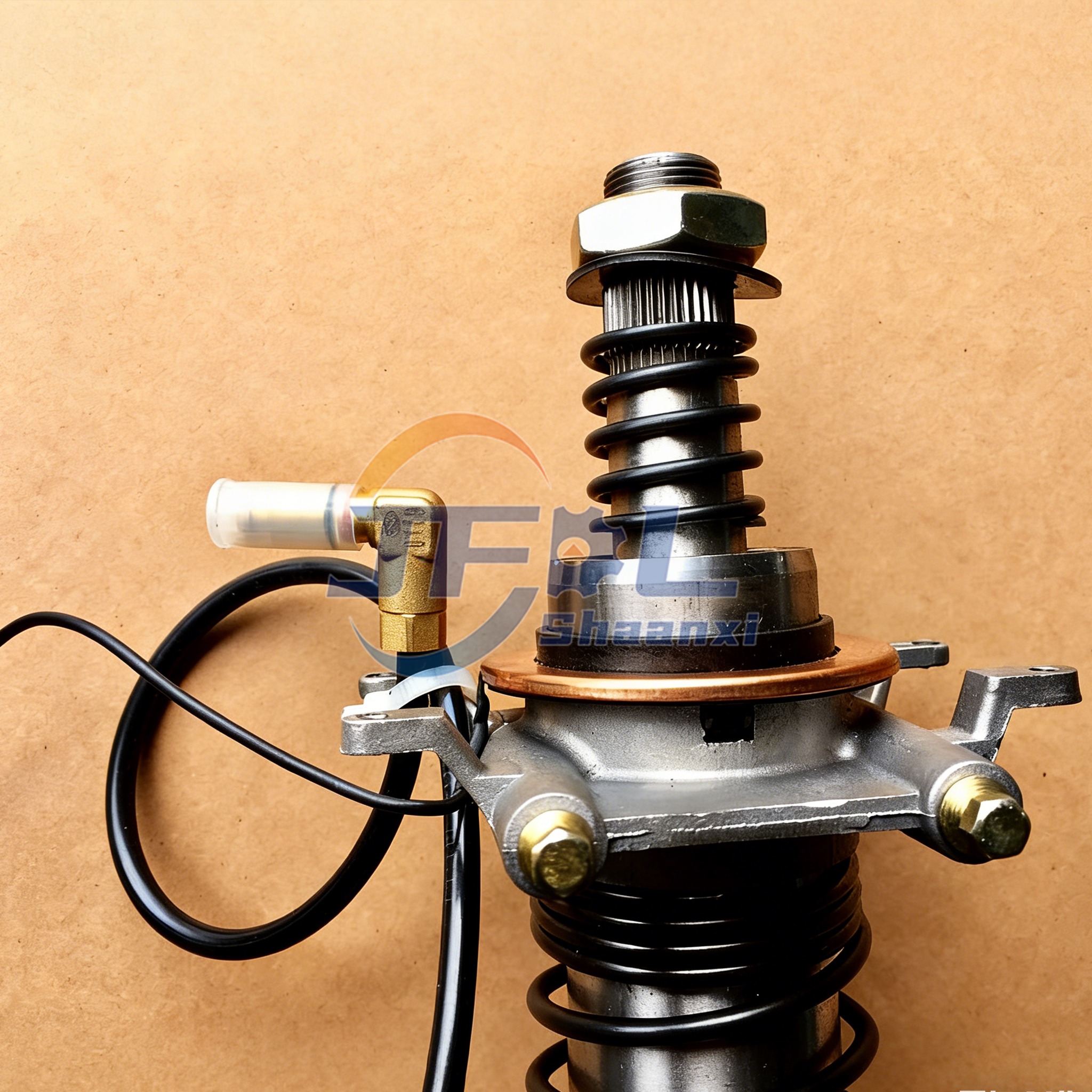

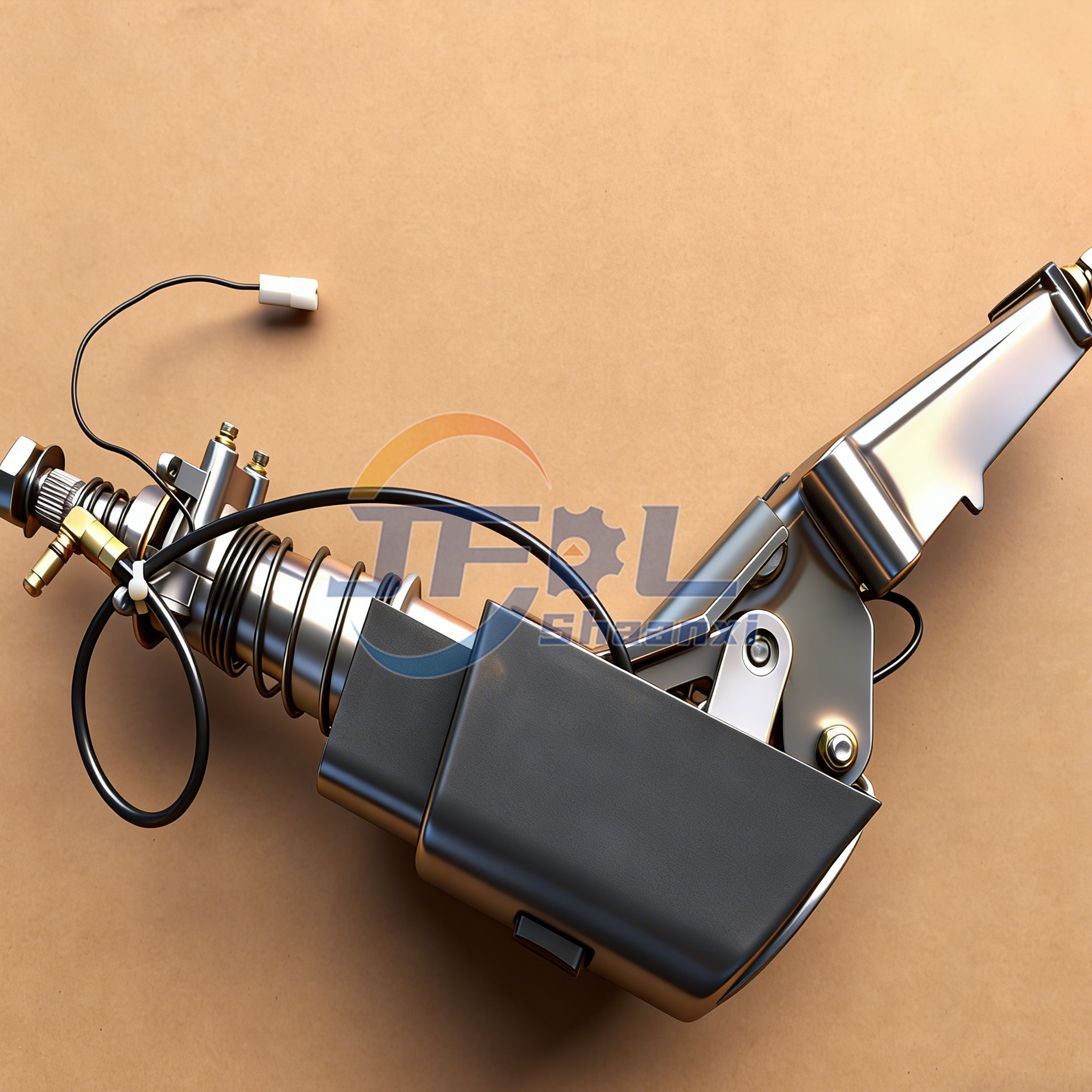

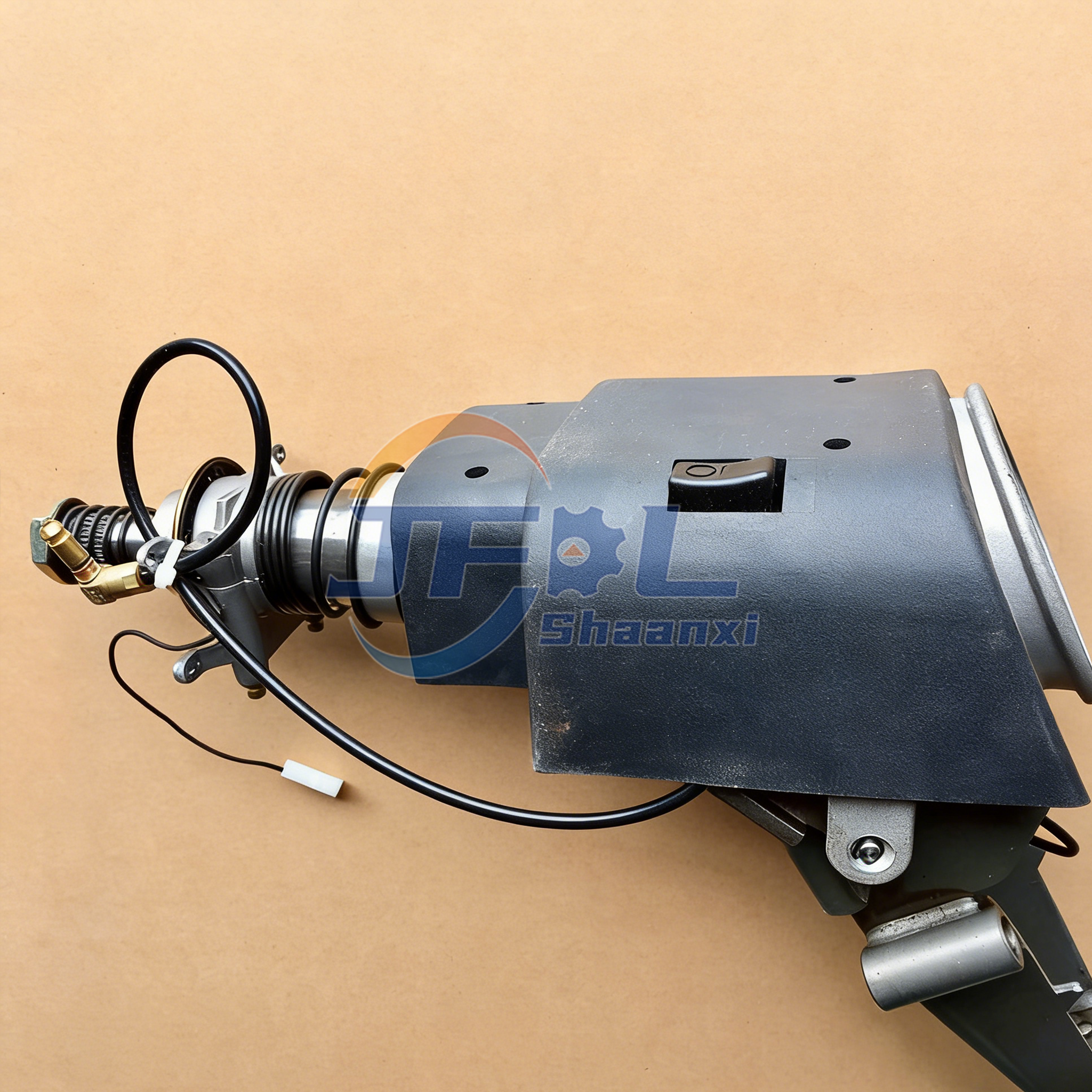

JFDL High Quality Factory Price Steering Column Assembly DZ97189460513 Shacman Truck Spare Parts
Item name: | Steering Column Assembly | Part No. : | DZ97189460513 |
| MOQ: | 1pcs | Sample: | Available |
| Advantages: | simple operation, long service life | Delivery: | 3-7working days |
| Warranty: | 6-12months | Port: | Shanghai,Qingdao, Guangzho |
 |  | |
2. Energy absorbing safety design: Equipped with passive safety protection functions. In the event of a severe collision, the steering column can absorb impact energy through its internal crumple zone, preventing the steering wheel from intruding into the driver's chest space and reducing personal injury.
3. High precision transmission: Internal bearings and universal joints utilize high precision manufacturing processes to ensure smooth steering transmission without play or jamming, providing the driver with precise steering feedback.
4. High integration: The assembly includes standard mounting positions for combination switches, lights, wipers, ignition switches, clock springs, and airbag/horn connection cables, offering strong adaptability.
Applicable Vehicles: Primarily used in the Shacman Delong X3000 high end heavy duty truck series, also compatible with some later upgraded versions of the M3000 or X5000 models.
Installation Location: Fixed to the dashboard frame in the cab, with the upper end connected to the steering wheel and the lower end passing through the cab floor to connect to the steering drive shaft.
Application Conditions: Suitable for heavy-duty vehicles with high requirements for driving feel and comfort, such as long haul logistics tractors and large dump trucks.
When overhauling or replacing the steering column assembly, the following components typically need to be checked or replaced:
1. Steering wheel: such as DZ97189460511, mounted at the top of the steering column.
2. Combination switch: an electronic switch controlling lights, steering, and wipers, such as DZ97189584441.
3. Steering drive shaft: the universal joint assembly connecting the lower end of the steering column to the steering gear.
4. Pneumatic adjustment switch: a small air valve used to control the locking and unlocking of the steering column.
5. Ignition switch lock cylinder: the ignition and steering lock mechanism fixed to the side of the steering column.
