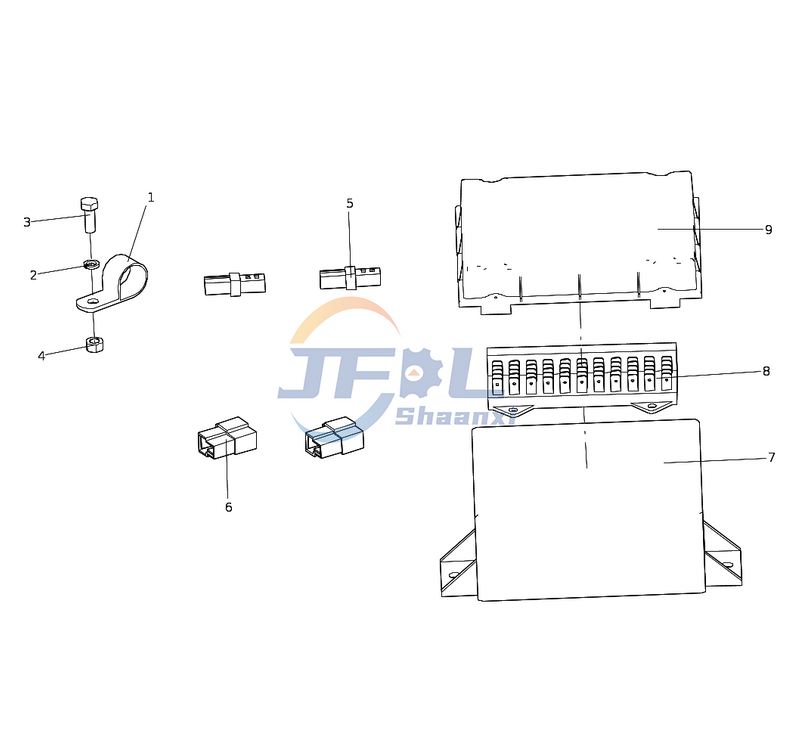

Howo Truck Electrical System Prats AC97217760131 Right HW7E cab wire
| Serial Number | Drawing number | Name |
| 1 | Q68620 | Single tube clip |
| 2 | Q40306 | spring washer |
| 2 | Q40306 | spring washer |
| 3 | Q150B0616 | Hexagon head bolts |
| 4 | Q340B06 | Type I hexagonal nut |
| 4 | Q340B06 | Type I hexagonal nut |
| 5 | WG9725584005 | 120Ω resistor |
| 6 | WG9725580021 | Diode assembly (3A) |
| 7 | WG9100770392 | Junction box |
| 8 | 179100770391 | Distribution box |
| 9 | WG9100770394 | Junction box cover |
| 10 | AZ9721776031 | Right HW7E cab wiring harness |
| 11 | Q41205 | External serrated lock washer |
| 12 | WG1642110018 | protective strip |
| 13 | WG9725584031 | Over-the-line box |
| 14 | Q150B0825 | Hexagon head bolts |
| 15 | Q340B08 | Type 1 hexagonal nut |
| 16 | Q40108 | Flat Washers |
| 17 | Q40308 | spring washer |
| 18 | WG9725584032 | Line box cover |
| 19 | Q2140420 | Cross recessed pan head screws |
| 20 | AZ9719770047 | Rubber via retainer (Φ50) |
| 21 | Q2762995F31 | Slotted countersunk head self-tapping screws |
| 22 | AZ910077000399 | Blind plugging of rear junction box of frame wiring harness |
| 23 | 190003120032 | Round sealing strip |
| 24 | Q2713525F31 | Cross recessed pan head tapping screws |
| 25 | Q150B0630Q | Hexagon head bolts |
| 26 | Q40206 | Large washer |
| 27 | Q40106 | Flat Washers |
| 28 | WG9003171356 | Plastic fastening tape A5*280 |
| 29 | 190003171392 | plastic fastening strap |
| 31 | Q150B0525 | Hexagon head bolts |
| 32 | Q150B0812 | Hexagon head bolts |
