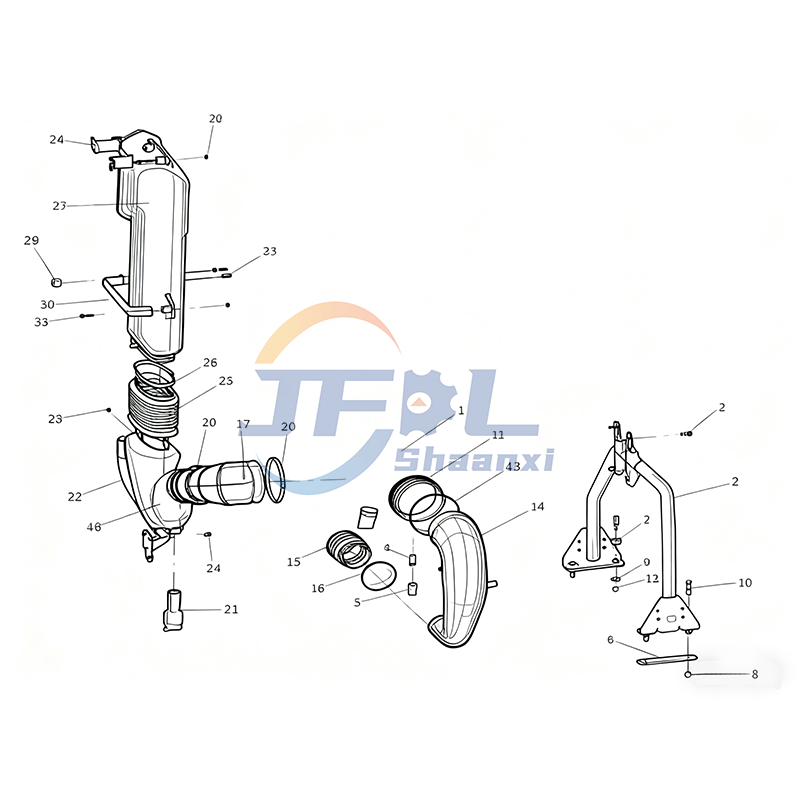

AC97251902053 HOWO air intake system
| Serial Number | Drawing number | Name | Quantity | ||||
| 1 | WG9725191820 | Air filter assembly | 10 | ||||
| 2 | WG9725191452 | Air filter bracket | 10 | ||||
| 3 | ZQ1841030 | Hexagonal flange bolt M10 | 10 | ||||
| 4 | WG1200190040 | Dry air filter clogging indicator switch | 10 | ||||
| 5 | WG9003090010 | Composite sealing gasket | 10 | ||||
| 6 | AZ9719190093 | Shock absorbing block | 10 | ||||
| 7 | AZ9719190094 | Rubber mat | 10 | ||||
| 8 | WG9719190092 | Steel Pipe | 10 | ||||
| 9 | Q40212 | Large washer | 10 | ||||
| 10 | Q150B1260 | Hexagon head bolts | 10 | ||||
| 11 | Q33212 | Type 2 all-metal hexagonal lock nut | 10 | ||||
| 12 | WG9725190905 | Rubber hose 180 | 10 | ||||
| 13 | AZ9003980030 | Hose clamp 180/200 N05074 | 10 | ||||
| 14 | WG9725193904 | Intake pipe assembly | 10 | ||||
| 15 | WG9725190906 | Rubber hose 104 | 10 | ||||
| 16 | 190003989318 | hose clamp | 10 | ||||
| 17 | WG9725191432 | Air intake hose | 10 | ||||
| 18 | WG9725191465 | Connecting pipe | 10 | ||||
| 19 | AZ9003980025 | Hose clamp, 145/185 N05074 | 10 | ||||
| 20 | AZ9003980026 | Hose clamp-180/230 N05074 | 10 | ||||
| 21 | WG9432190320 | Extended dust exhaust valve | 10 | ||||
| 22 | WG9725190917 | Lower air intake bracket assembly (standard cab) | 10 | ||||
| 23 | ZQ1840816 | Hexagonal flange bolt M8 | 10 | ||||
| 24 | ZQ1841016 | Hexagonal flange bolt M10 | 10 | ||||
| 25 | WG9725190008 | Corrugated interface components | 10 | ||||
| 26 | WG9725190007 | clamp | 10 | ||||
| 27 | YG9725194980 | HOWO air intake assembly | 10 | ||||
| 28 | YG9725194988 | Rubber block | 10 | ||||
| 29 | YG9725194986 | Intake upper bracket | 10 | ||||
| 30 | YG9725194987 | Intake lower bracket (right) | 10 | ||||
| 31 | ZQ1840845 | Hexagonal flange bolt M8 | 10 | ||||
| 32 | ZQ32008 | Hexagonal flange nut M8 | 10 | ||||
| 33 | ZQ1840825 | Hexagonal flange bolt M8 | 10 | ||||
| 34 | AZ9729510005 | Reprocessing drawing of the left longitudinal beam of the frame | 10 | ||||
| 35 | AZ9729510006 | Reprocessing drawing of the right longitudinal beam of the frame | 10 | ||||
| 36 | Q40208 | Large washer | 10 | ||||
| 36 | Q40208 | Large washer | 10 | ||||
