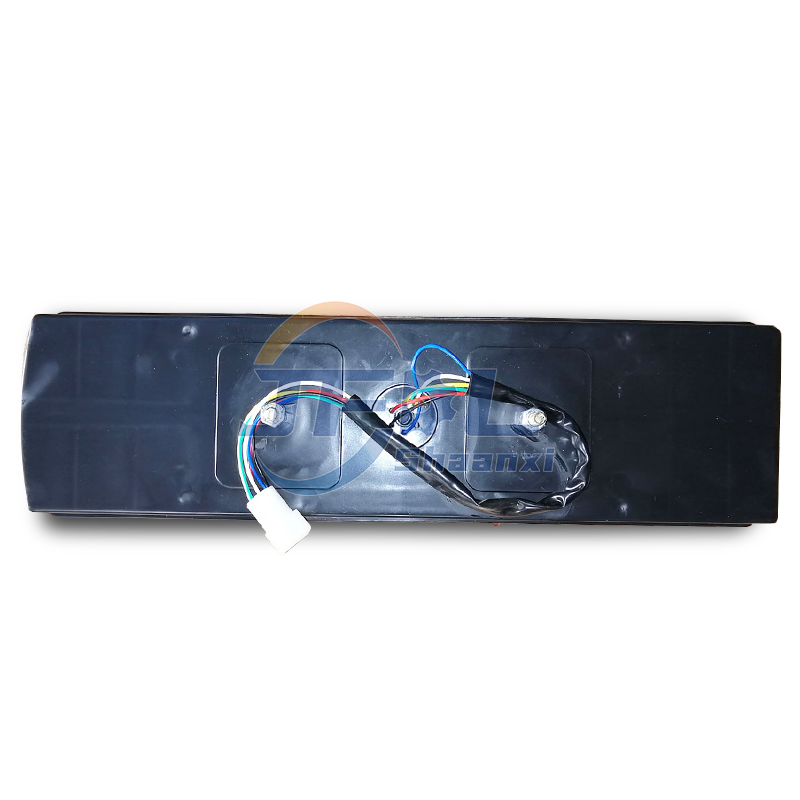

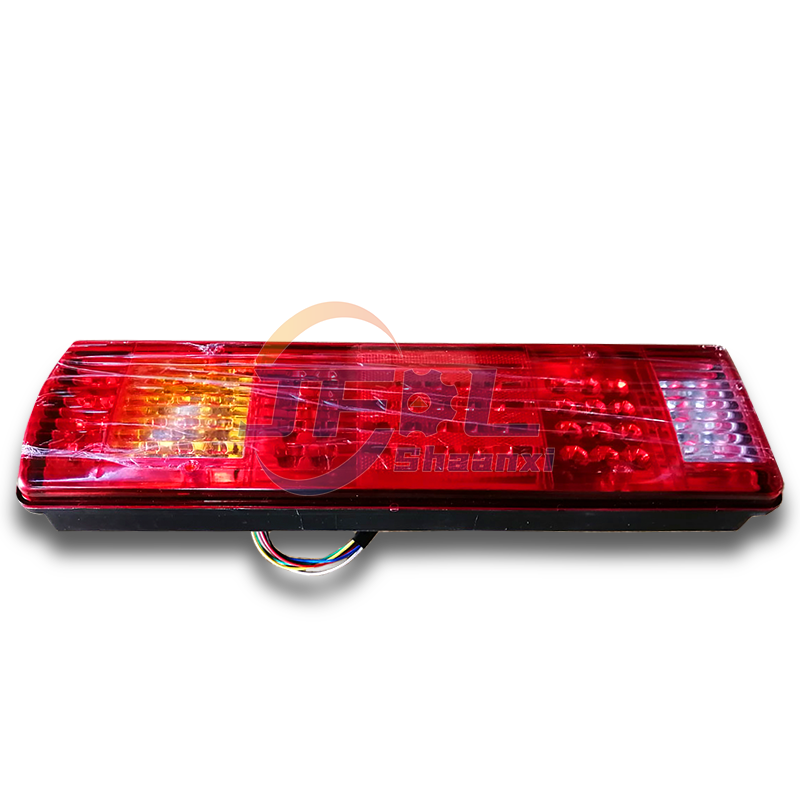

Shacman Truck Spare Parts Right Tail Lamp AZ9200810010
![]() | ![]() | ![]() |
Part Name: Tail Combination Lamp (Rear Light Assembly)
OEM Part Number: AZ9200810010 (Right-Hand / RH Side)
Position: Rear Right (Passenger side on LHD trucks)
Manufacturer Origin: Designed for Chinese heavy-duty truck brands; commonly used in Sinotruk HOWO and Shacman models
Primary Function: Integrated rear lighting unit for safety, signaling, and compliance
| Attribute | Specification |
|---|---|
| Voltage | 24V DC (Standard for heavy-duty commercial vehicles) |
| Lighting Functions | - Brake Light (Stop) - Turn Signal (Amber) - Reverse Light (White/Back-up) - Tail/Position Light (Red) - Side Marker Light (if applicable) |
| Light Source Type | Available in both: - Traditional bulb-based (with sockets for replaceable bulbs) - LED version (increasingly common; offers longer life, faster response, lower power consumption) |
| Housing Material | High-strength engineering plastic (ABS or polycarbonate blend), UV-resistant |
| Lens Material | Polycarbonate (PC) or acrylic lens – impact-resistant and weatherproof |
| Sealing Level | IP67 rated (Dust-tight & protected against water immersion up to 1m for 30 minutes) |
| Mounting Type | Bolt-on or bracket-mounted with rubber gasket for vibration resistance |
| Connector Type | Standard multi-pin plug (typically 5–7 pin; compatible with 24V truck wiring harnesses) |
| Color Configuration | Red (tail/brake), Amber (turn signal), Clear/White (reverse), Red/Amber (side marker) |
| Operating Temperature | -40°C to +85°C (suitable for extreme climates) |
| Compliance Standards | ECE R7, R6, R23, R67 (or equivalent); meets international vehicle lighting regulations |
Designed for use in heavy-duty trucks and commercial transport vehicles, especially those operating under tough conditions such as long-haul freight, construction, mining, and logistics.
| Brand | Compatible Series |
|---|---|
| Sinotruk | HOWO A7, HOWO T5G, HOWO TH7, HOWO N1G, etc. |
| Shacman (Shaanxi Auto) | F2000, F3000, M3000 series |
| MAN | MAN F2000 (due to platform sharing and OEM collaboration) |
Note: This part may also fit other models based on shared chassis/platform design. Always verify compatibility using VIN or frame number.
These are known interchangeable or related part numbers. Confirm fitment before substitution.
| Part Number | Description |
|---|---|
| AZ9200810009 | Left-hand (LH) side counterpart |
| WG9200810010 | Possible alternative OEM variant (Weichai/Wuzheng group) |
| WG9200810009 | LH version of WG-series |
| WG9719810001 | May refer to similar tail lamp subassembly |
| WG9719810002 | Alternate version, possibly different configuration |
| Aftermarket Equivalents | Various brands may offer compatible units labeled with AZ/WG numbers — always check quality and certification |
⚠️ Important: Cross-compatibility varies by production year and model revision. Use vehicle-specific databases or consult suppliers with VIN data for accurate matching.
Professional Installation Required
Must be installed by qualified technicians to ensure correct wiring polarity, grounding, and waterproof sealing.
Incorrect installation can lead to short circuits, blown fuses, or malfunctioning signals.
Electrical System Compatibility
Designed for 24V negative ground systems typical in heavy trucks.
Do not install on 12V systems without proper conversion or risk dim performance.
When upgrading to LED versions, ensure flasher relays are compatible (may require electronic relay replacement).
Sealing & Moisture Protection
Inspect rubber gaskets and housing seals during installation.
Apply dielectric grease on connectors to prevent corrosion.
Ensure drain holes (if present) are unobstructed.
Regular Maintenance & Inspection
Cracks or clouding in the lens
Bulb burnout or LED failure
Water condensation inside the housing (indicates seal damage)
Loose mounting brackets
Check monthly for:
Test all functions: brake, turn signal, reverse, position lights.
Replacement Best Practices
Replace in pairs (left and right) to maintain uniform brightness and appearance.
Prefer OEM or certified aftermarket parts to ensure reliability and compliance.
Environmental Durability
Resistant to diesel fuel, oil, road salt, dust, and vibrations.
Suitable for off-road, mining, and high-mileage operations.
Legal & Safety Compliance
Non-functional lights may result in failed inspections or traffic violations.
All lighting must meet local regulatory standards (e.g., GB standards in China, ECE in Europe, FMVSS/DOT in North America if exported).
1 × Tail Lamp Assembly (AZ9200810010 – RH)
Mounting bolts/washers (if included)
Sealing gasket/rubber boot
Wiring harness connector (pre-installed)
(Accessories may vary depending on supplier or market)
Direct OEM replacement for key Chinese heavy truck brands
Reliable multi-function integration in one robust unit
Built for durability in harsh environments
Ensures visibility, safety, and regulatory compliance
Widely available globally through Sinotruk/Shacman spare parts networks
